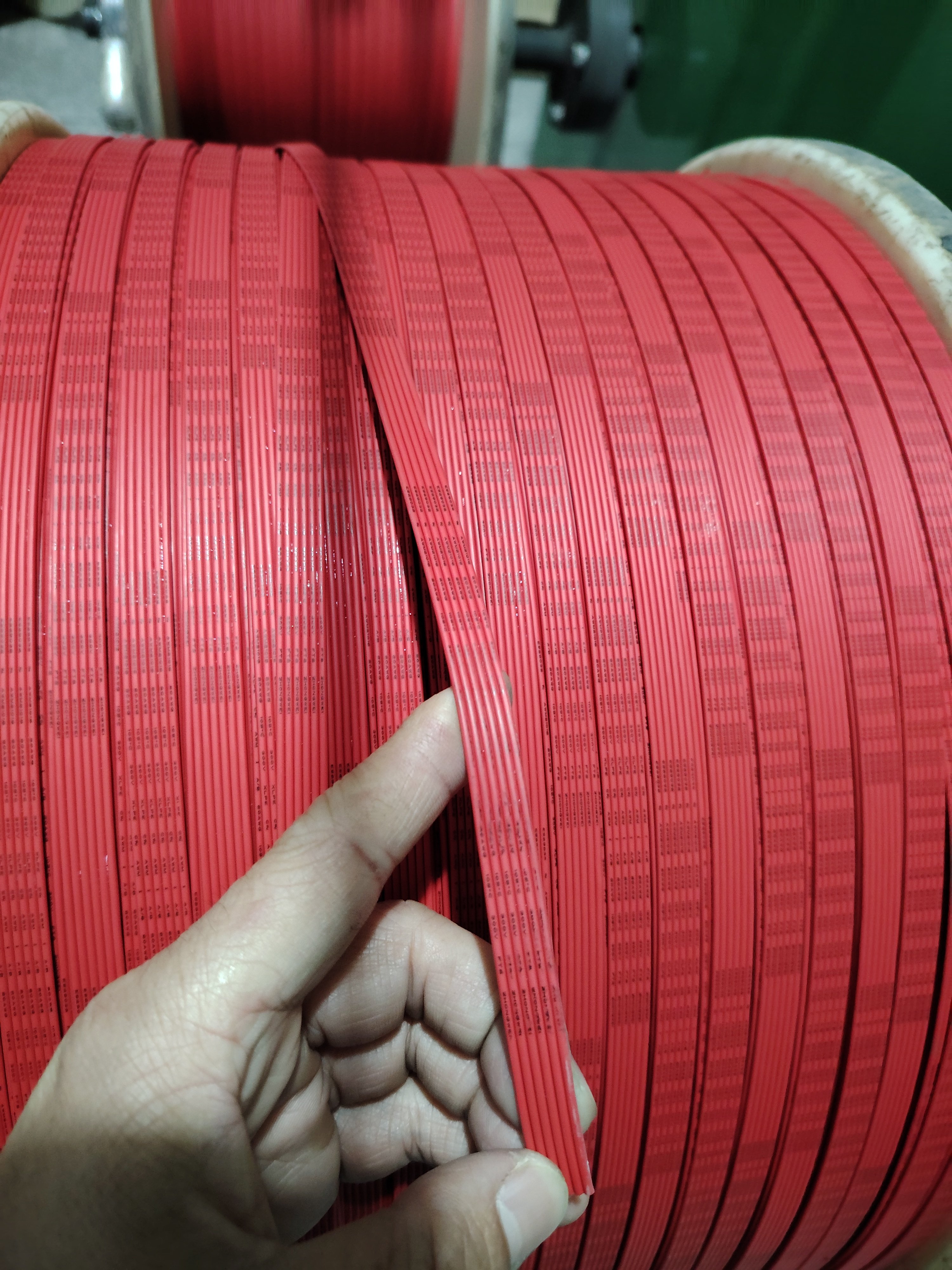

300V flexible flat UL 4478 cable

Application

UL 4478 flat cable is widely used in New energy equipment internal sensing system, general electroninc, as connection wires

working voltage: 300V

temperature: 105 centi degree

Marking: E529032 9M AWM 4478 28AWG 105 300V XLPE wire FT2

standard: UL 758 UL1581

Conductor: tinned copper wire

insulation:XLPE insulation, in line with ROhs Reach Environmental protections standard

Conductor type:7 strands wire, 11 strands wire

Flame retardant level: UL & CSA FT2 VW-1 standard required

Parameters of UL4469 30V wire

AWG	Conductor OD	Insulation thickness	wire O.D.	cores #	wires pitch	Conductor resistance
	mm	mm	mm	#	mm	ohm/KM
26	0.48	0.23	0.9*1.05	2	1.27	138
28	0.41	0.23	0.9*2.54	3	1.27	150
28	0.41	0.23	0.9*3.81	4	1.27	150
28	0.41	0.23	0.9*5.08	5	1.27	150
28	0.41	0.23	0.9*6.35	6	1.27	150
28	0.41	0.23	0.9*7.62	7	1.27	150
28	0.41	0.23	0.9*8.89	8	1.27	150
28	0.41	0.23	0.9*10.16	9	1.27	150
28	0.41	0.23	0.9*12.7	10	1.27	150

color: red black yellow green

packing: 610 m/2000 ft a roll
