IEC60502, GB/T12706 or other standard required by customer.
The requirements for flame retardant property is according to IEC60332-3 and GB18380.
Packing:Steel/wooden reel,wooden reel or steel reel.
Installation Temperature : The installation temperature should be over 0℃ . If the ambient temperature is lower than 0℃,the cable should be preheated.
Operating Temperature : Max permissible continuous operating temperature of conductor shall not exceed 90℃ .
Conductor Short-circuit Temperature : Max temperature at short-circuit shall not exceed 250℃ . The short-circuit duration shall not exceed 5 seconds.
This product is suitable for transmission and distribution system at the voltage from LV to MV. The power cables can be flame retardant when used as type ZR.
| Description |
| Cu or Al conductor/ XLPE insulated/ steel tape armored/ PVC sheathed flame retardant power cable |
| Cu or Al conductor/ XLPE insulated/ steel tape armored/ PVC sheathed power cable |
| Cu or Al conductor/ XLPE insulated/ steel wire armored/ PVC sheathed power cable |
| Cu or Al conductor/ XLPE insulated/ steel wire armored/ PVC sheathed flame retardant power cable |

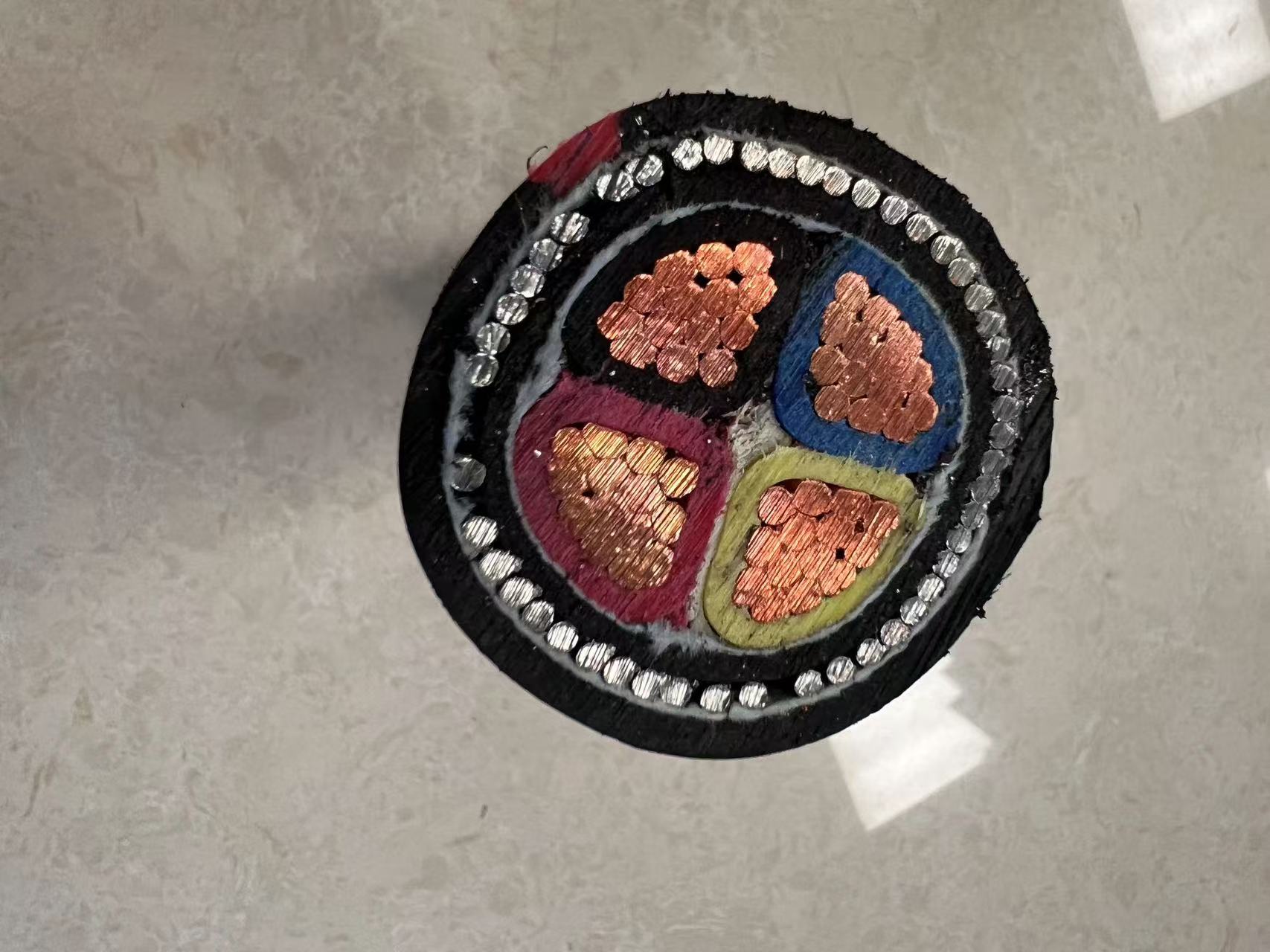

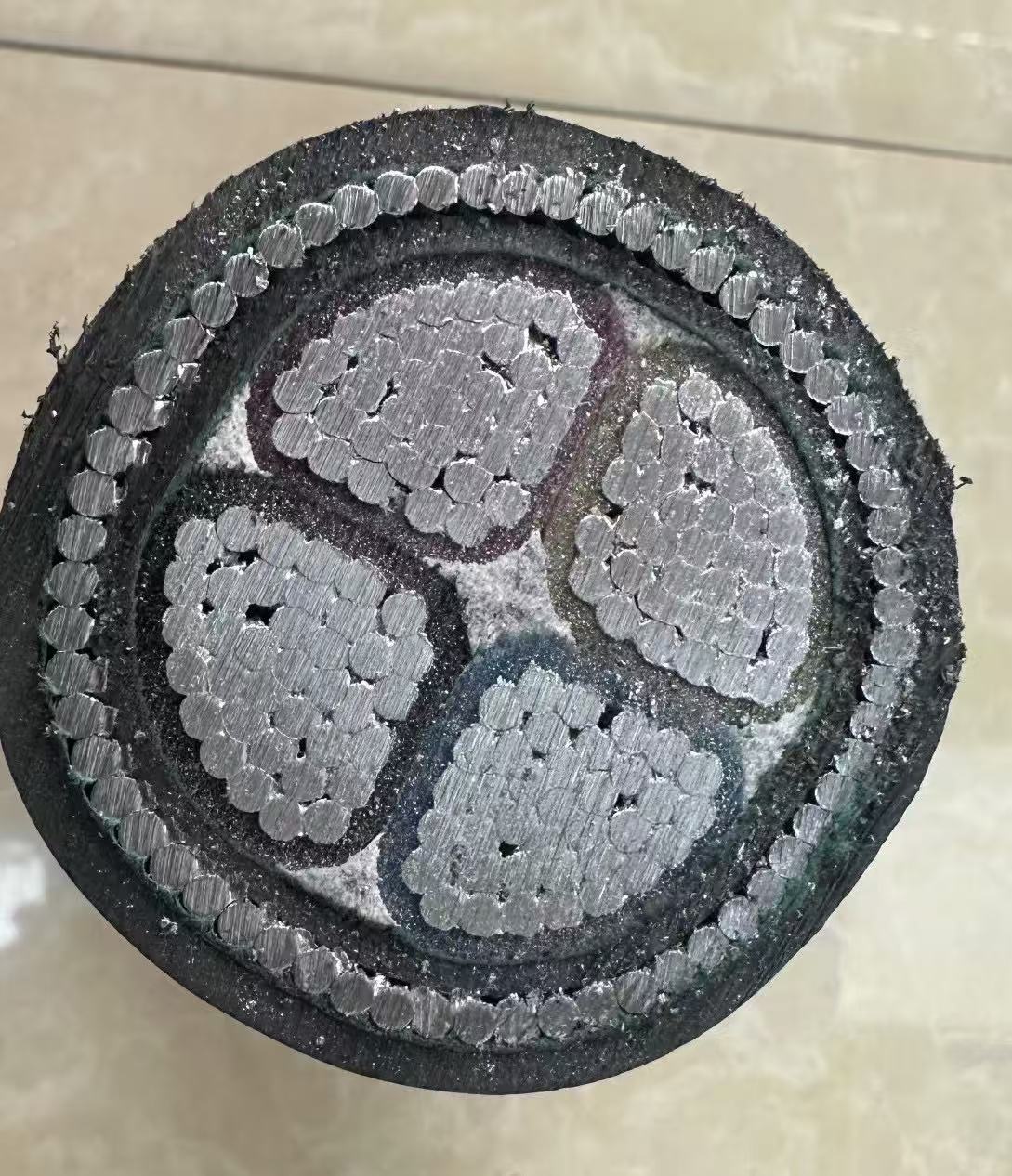

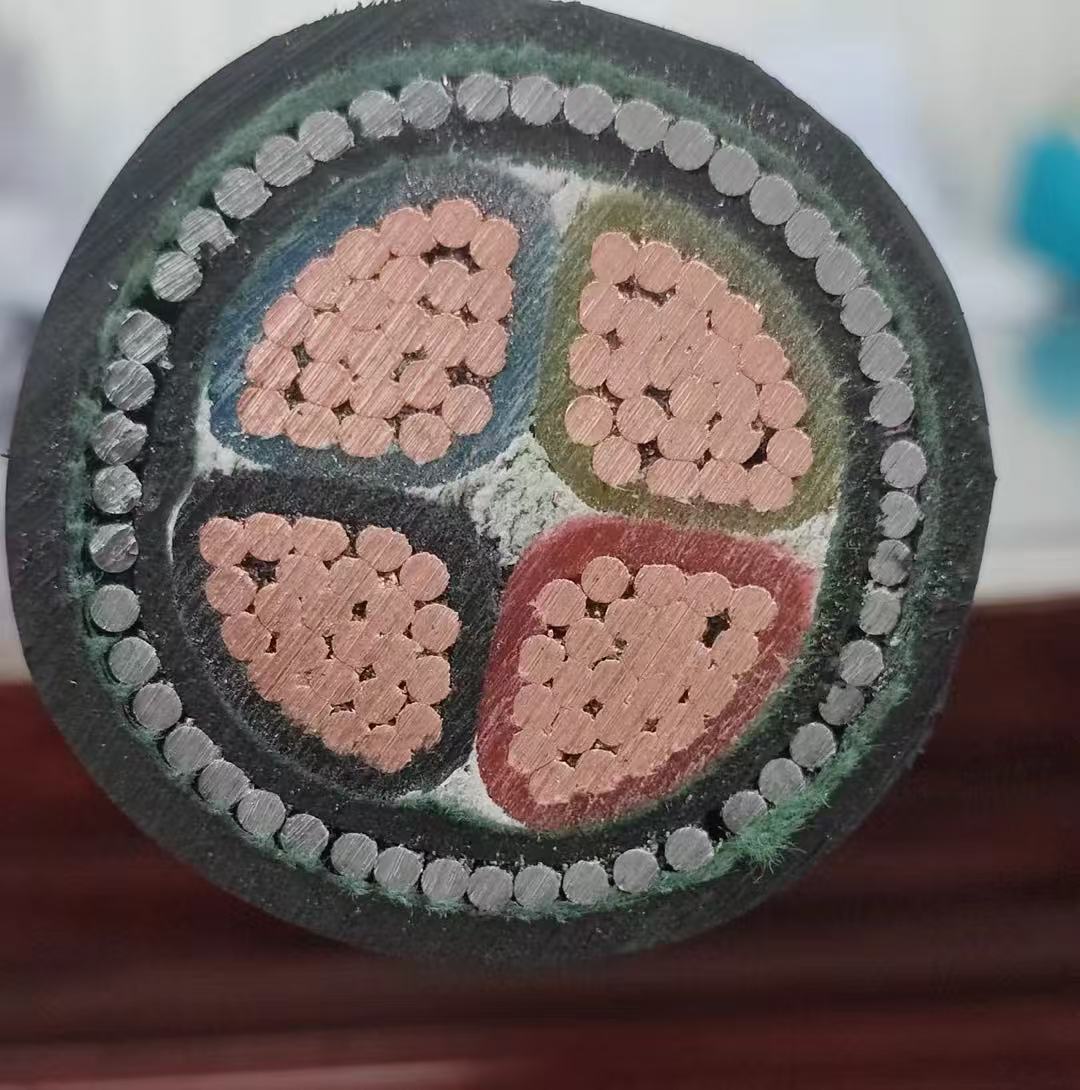

Technical Characteristics for 95mm 4 cores armor cable
| Nominalconductor crosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominal sheath thickness (mm) | Approx Overall Diameter (mm) | Max DC Conductor resistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 4x95 | 1.1 | 2.5 | 41 | 0.193 | 0.320 | 4768 | 2800 |
any interested item to armor cable, welcome to contact us freely, thank you.
