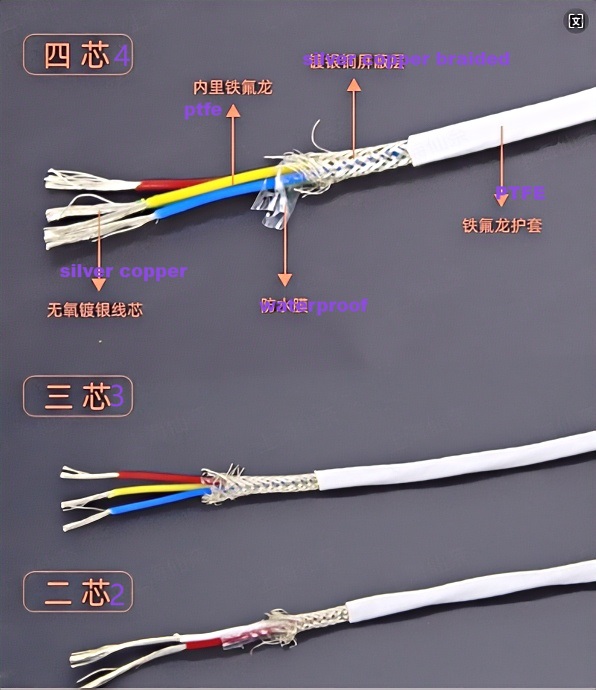

AFPA wire has good performance to high temperature resistance, fire proof,anti acid, anti corrosion, waterproof, its working voltage under 600v, used in instruments, sensors, motors, valus, chemical, cooking etc
wire size can be from 0.12mm2 to 2.5mm2,cores number: 1 core to 10 cores
working temperature: - 65 to +200 centi degree
wire conductor material: silver plated copper wire
wire insulation:PTFE
wire shied type: sliver copper wire braided with coverage rate above 85%
wire sheath:PTFE
| cores* conductor size | Conductor construction | Insulation thickness | wire O.D. | Conductor resistance |
| #*mm2 | #/mm | mm | mm | ohm/KM |
| 1*0.12 | 7/0.15 | 0.20 | 1.75 | 150 |
| 1*0.35 | 7/0.20 | 0.20 | 2.00 | 83.5 |
| 1*0.5 | 19/0.18 | 0.25 | 2.30 | 49.5 |
| 1*0.75 | 19/0.23 | 0.25 | 2.70 | 22.7 |
| 2*0.035 | 7/0.08 | 0.20 | 2.20 | 525 |
| 3*0.05 | 7/0.10 | 0.20 | 2.40 | 330 |
| 4*0.08 | 7/0.12 | 0.20 | 2.80 | 227 |
| 5*0.12 | 7/0.15 | 0.20 | 3.30 | 150 |
| 6*0.12 | 7/0.15 | 0.20 | 3.36 | 150 |
