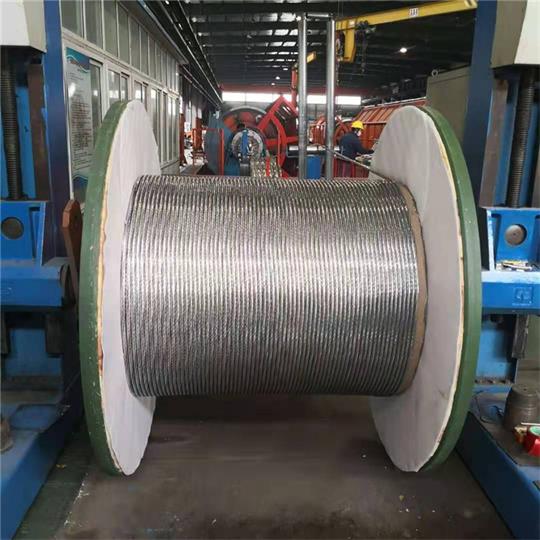

Construction

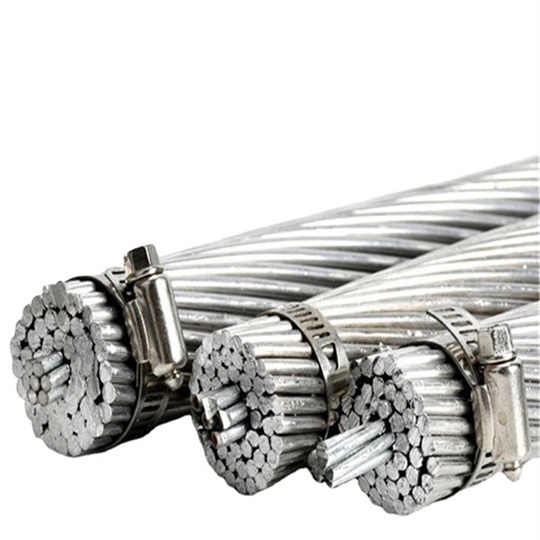

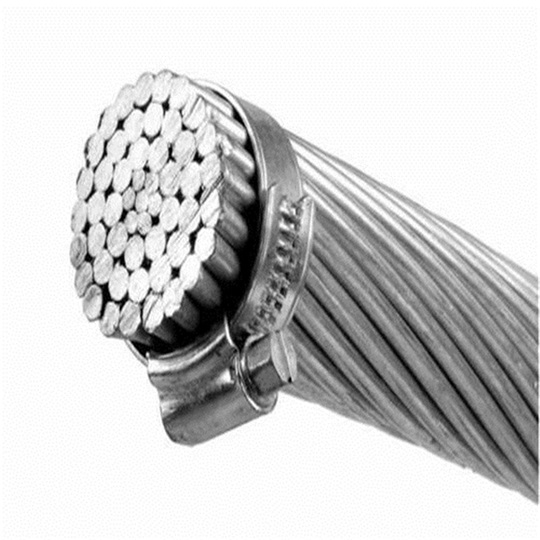

This conductor is made from aluminum-magnesium-silicon alloy of high conductivity containing magnesium silicon to give it better mechanical properties after treatment.
This conductor is made from aluminum-magnesium-silicone alloy of high conductivity containing magnesium silicon to give it better mechanical properties after treatment.
Material code: aluminum alloy 6201 IEC 61089.
| Nom. Size | Strand/ Dia | Cal. area | O.D. | Mass | Breaking Load | Resistance(20℃) |
| mm² | No/mm | mm² | mm | kg/km | kN | Ω/km |
| 16 | 7/1.83 | 18.4 | 5.49 | 50.4 | 5.43 | 1.7896 |
| 25 | 7/2.29 | 28.8 | 6.87 | 78.7 | 8.49 | 1.1453 |
| 40 | 7/2.89 | 46 | 8.67 | 125.9 | 13.58 | 0.7158 |
| 63 | 7/3.63 | 72.5 | 10.89 | 198.3 | 21.39 | 0.4545 |
| 100 | 19/2.78 | 115 | 13.9 | 316.3 | 33.95 | 0.2877 |
| 125 | 19/3.10 | 144 | 15.5 | 395.4 | 42.44 | 0.2302 |
| 160 | 19/3.51 | 184 | 17.55 | 506.1 | 54.32 | 0.1798 |
| 200 | 19/3.93 | 230 | 19.65 | 632.7 | 67.91 | 0.1439 |
| 250 | 19/4.39 | 288 | 21.95 | 790.8 | 84.88 | 0.1151 |
| 315 | 37/3.53 | 363 | 24.71 | 998.9 | 106.95 | 0.0916 |
| 400 | 37/3.98 | 460 | 27.86 | 1268.4 | 135.81 | 0.0721 |
| 450 | 37/4.22 | 518 | 29.54 | 1426.9 | 152.79 | 0.0641 |
| 500 | 37/4.45 | 575 | 31.15 | 1585.5 | 169.76 | 0.0577 |
| 560 | 61/3.67 | 645 | 33.03 | 1778.4 | 190.14 | 0.0516 |
| 630 | 61/3.89 | 725 | 35.01 | 2000.7 | 213.9 | 0.0458 |
| 710 | 61/4.13 | 817 | 37.17 | 2254.8 | 241.07 | 0.0407 |
| 800 | 61/4.38 | 921 | 39.42 | 2540.8 | 271.62 | 0.0361 |
| 900 | 91/3.81 | 1036 | 41.91 | 2861.1 | 305.58 | 0.0321 |
| 1000 | 91/4.01 | 1151 | 44.11 | 3179 | 339.53 | 0.0289 |
| 1120 | 91/4.25 | 1289 | 46.75 | 3560.5 | 380.27 | 0.0258 |
| 1250 | 91/4.49 | 1439 | 49.39 | 3973.7 | 424.41 | 0.0231 |
| AAAC ASTM B399 | |||||||
| Code | Total Area | No./Dia. | O.D. | Mass | Breaking Load | Resistance(20℃) | |
| AWG/MCM | mm² | mm | mm | kg/km | KN | Ω/km | |
| - | 6 | 13.3 | 7/1.55 | 4.65 | 36.44 | 4.22 | 2.5361 |
| Akron | 30.58(6) | 15.5 | 7/1.68 | 5.04 | 42.44 | 4.92 | 2.1588 |
| - | 4 | 21.1 | 7/1.96 | 5.89 | 57.89 | 6.72 | 1.586 |
| Alton | 48.69(4) | 24.7 | 7/2.12 | 6.36 | 67.56 | 7.84 | 1.3557 |
| - | 2 | 33.6 | 7/2.47 | 7.41 | 92.14 | 2.4 | 0.9987 |
| Ames | 77.47(2) | 39.3 | 7/2.67 | 8.01 | 107.5 | 12.5 | 0.8547 |
| - | 1/0 | 53.5 | 7/3.12 | 9.36 | 146.5 | 17 | 0.6259 |
| Azusa | 123.3(1/0) | 62.5 | 7/3.37 | 10.1 | 171 | 19 | 0.5365 |
| - | 2/0 | 67.4 | 7/3.50 | 10.5 | 184.7 | 20.5 | 0.4974 |
| Anaheim | 155.4(2/0) | 78.7 | 7/3.78 | 11.3 | 215.6 | 24 | 0.4264 |
| - | 3/0 | 85 | 7/3.93 | 11.8 | 232.7 | 25.9 | 0.3945 |
| Amherst | 195.7(3/0) | 99.2 | 7/4.25 | 12.8 | 271.5 | 30.2 | 0.3373 |
| - | 4/0 | 107.2 | 7/4.42 | 13.3 | 293.7 | 32.7 | 0.3119 |
| Alliance | 246.9(4/0) | 125.1 | 7/4.77 | 14.3 | 342.6 | 38.1 | 0.2678 |
| - | 250 | 126.7 | 19/2.91 | 14.6 | 346.9 | 39 | 0.2651 |
| - | 300 | 152 | 19/3.19 | 16 | 416.6 | 46.8 | 0.2206 |
| Butte | 312.8 | 158.5 | 19/3.26 | 16.3 | 434 | 46.7 | 0.2112 |
| Canton | 394.5 | 199.9 | 19/3.66 | 18.3 | 547.4 | 59 | 0.1676 |
| - | 350 | 177.3 | 19/3.45 | 17.3 | 485.5 | 52.3 | 0.1886 |
| Cairo | 465.4 | 235.8 | 19/3.98 | 19.9 | 645.7 | 69.6 | 0.1417 |
| - | 400 | 202.7 | 19/3.69 | 18.5 | 555.1 | 59.8 | 0.1649 |
| - | 450 | 228 | 19/3.91 | 19.6 | 624.4 | 67.3 | 0.1468 |
| Darien | 559.5 | 283.5 | 19/4.36 | 21.8 | 776.3 | 83.6 | 0.1181 |
| - | 500 | 253.4 | 19/4.12 | 20.6 | 693.6 | 74.7 | 0.1322 |
| - | 550 | 278.7 | 37/3.10 | 21.7 | 762.9 | 83.9 | 0.12 |
| Elgin | 652.4 | 330.6 | 19/4.71 | 23.6 | 905.2 | 97.5 | 0.1012 |
| - | 600 | 304 | 37/3.23 | 22.6 | 832 | 91.5 | 0.1105 |
| - | 650 | 329.4 | 37/3.37 | 23.6 | 901.3 | 95 | 0.1015 |
| - | 700 | 354.7 | 37/3.49 | 24.4 | 970.6 | 102 | 0.09464 |
| Flint | 740.8 | 375.4 | 37/3.59 | 25.1 | 1028 | 108 | 0.08944 |
| - | 750 | 380 | 37/3.62 | 25.3 | 1041 | 110 | 0.08796 |
| - | 800 | 405.4 | 37/3.73 | 26.1 | 1109 | 117 | 0.08285 |
| - | 900 | 456 | 37/3.96 | 27.7 | 1249 | 132 | 0.07351 |
| Greeley | 927.2 | 469.8 | 37/4.02 | 28.1 | 1287 | 136 | 0.07133 |
| - | 1000 | 506.7 | 37/4.18 | 29.3 | 1388 | 146 | 0.06597 |
| - | 1250 | 633.3 | 61/3.63 | 32.7 | 1733 | 180 | 0.053006 |
| - | 1500 | 760 | 61/3.98 | 35.8 | 2081 | 217 | 0.04414 |
| - | 1750 | 886.7 | 61/4.30 | 38.7 | 2429 | 253 | 0.03781 |
| 1259.6 | 638.2 | 61/3.65 | 32.9 | 1748 | 18558 | 0.05248 | |
| 1348.8 | 683.4 | 61/3.78 | 34 | 1872 | 19884 | 0.04893 | |
| 1439.2 | 729.2 | 61/3.90 | 35.1 | 1997 | 21209 | 0.04597 | |
| 1500 | 760 | 61/3.98 | 35.8 | 2081 | 22127 | 0.04414 | |
| 1750 | 886.7 | 61/4.30 | 38.7 | 2429 | 25798 | 0.03781 | |
