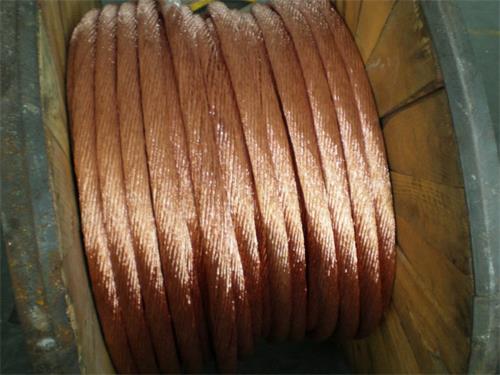

Bare Copper Stranded Conductor

Description

Bare copper, solid or stranded. Available in tempers hard, medium-hard, or soft. Stranded conductors are concentrically stranded in hard and medium-hard tempers and are Combination Unilay stranded in the soft-drawn temper.

Standard

Hard Drawn Bare Copper Stranded Conductor STANDARD

ASTM B-1 Hard Drawn Copper Wire.

ASTM B-2 Medium-Hard Drawn Copper Wire.

ASTM B-3 Soft or Annealed Copper Wire.

ASTM B-8 Concentric Lay Stranded Copper Conductors, Hard, MediumHard, or Soft.

ASTM B-33 Tinned Conductors

ASTM B-787 19 Wire Combination Unilay-Stranded Soft copper wire.

Application

Hard Drawn Bare Copper Stranded Conductor APPLICATION:Bare Copper conductors are primarily used for grounding purposes as specified in the National Electrical Code. Hard-drawn conductors for overhead transmission and distribution lines, as grounding connections in circuits and grounding for machinery or equipment. Soft-drawn solid or stranded conductors, for use as grounding connections in circuits, and grounding for machinery or equipment.

Parameters

NOMINAL CROSS SECTIONAL AREA	NO. OF WIRES	DIAMETER OF WIRES	DIAMETER OF  CONDUCTORS	MECHANICAL PROPERTIES OF PLAIN COPPER WIRE		NOMINAL WEIGHT	MAXIMUM DC RESISTANCE AT 20°C
				Minimum Elongation	Minimum Tensile Strength
mm2	#	mm	mm	%	N/mm2	kg/km	ohms/km
1.5	7	0.53	1.59	24	200	13	12.1
2.5	7	0.67	2.01	24	200	21	7.41
4	7	0.85	2.55	24	200	35	4.61
6	7	1.05	3.15	26	200	52	3.08
10	7	1.35	3.85	26	200	87	1.83
16	7	1.74	4.8	28	200	137	1.15
25	7	2.19	5.8	28	200	215	0.727
35	7	2.62	6.9	28	200	300	0.524
50	10	2.62	8.2	28	200	410	0.387
70	14	2.62	9.7	28	200	595	0.268
95	19	2.62	11.4	28	200	820	0.193
120	19	2.62	13.1	28	200	1040	0.153
150	37	2.62	14.2	28	200	1280	0.124
185	37	2.62	15.8	28	200	1600	0.0991
240	48	2.62	18.6	28	200	2100	0.0754
300	61	2.62	20.4	28	200	2700	0.0601
400	61	3	26	33	200	3400	0.047
500	61	3	30	33	200	4400	0.0366
