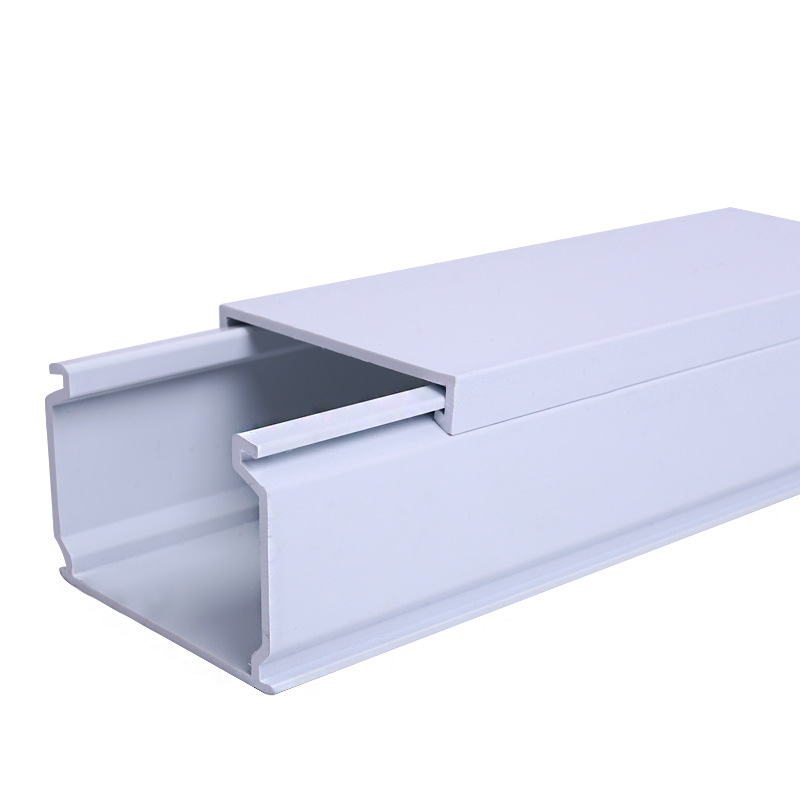

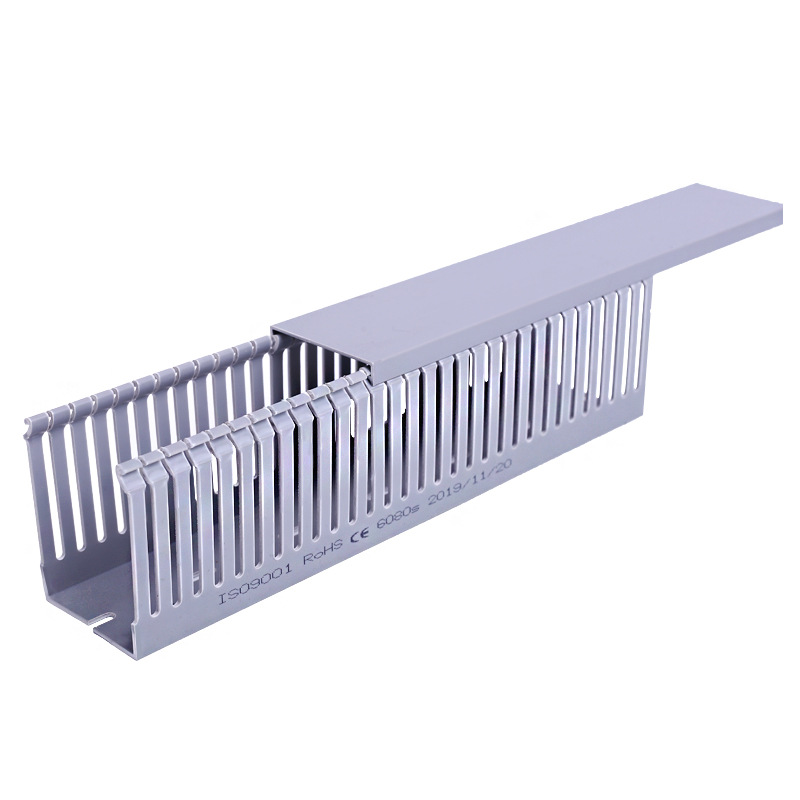

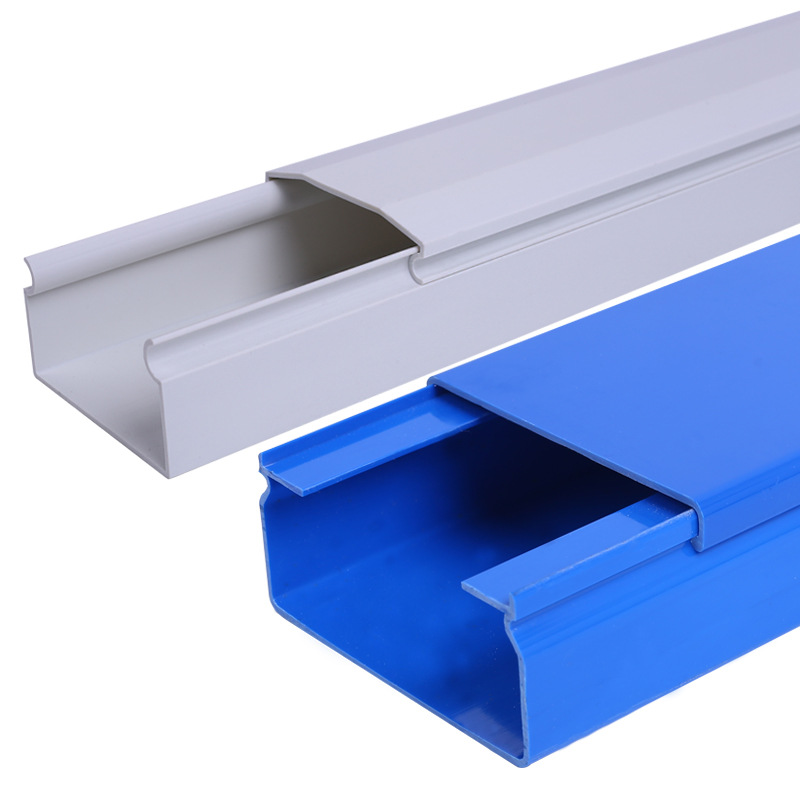

PVC trunking and cable conduit, is widely used as trunking cable, insulated cable, or armor cable, which with a certain length of wire or cabling run through a protective plastic or metal truck
PVC cable tray designed for corrosive, explosive, and ventilate environments. With a smooth interior and exterior, it enables effortless insertion of cables and wires.
Chanelectric offer an extensive selection of PVC trunking solutions in various heights, designs, and cable capacities, catering to the distribution needs of power, data and more.
material: PVC
Working temperature: 20-70 ℃
Standard: GB/t 1614-2000
parameter
| Diameter mm | thickness mm | diameter mm | thickness mm |
| 9*5 | 0.5 | 40*25 | 1.1 |
| 10*10 | 0.6 | 50*50 | 1.1 |
| 12*8 | 0.65 | 59*22 | 1.0 |
| 12*12 | 0.58 | 60*30 | 1.1 |
| 14*7 | 0.7 | 60*40 | 1.2 |
| 15*10 | 0.7 | 70*50 | 1.1 |
| 14*12 | 0.53 | 75*75 | 1.2 |
| 15*13 | 0.63 | 80*40 | 1.2 |
| 16*16 | 1.00 | 100*40 | 1.3 |
| 18*9 | 0.40 | 100*50 | 1.35 |
| 20*9 | 0.55 | 100*75 | 1.90 |
| 20*10 | 0.7 | 100*100 | 1.6 |
| 24*14 | 0.8 | 120*80 | 2.00 |
| 25*16 | 0.63 | 150*100 | 2.0 |
| 25*25 | 0.75 | ||
| 30*13 | 0.6 | ||
| 30*15 | 0.6 | ||
| 30*20 | 1.1 | ||
| 39*19 | 1.1 |

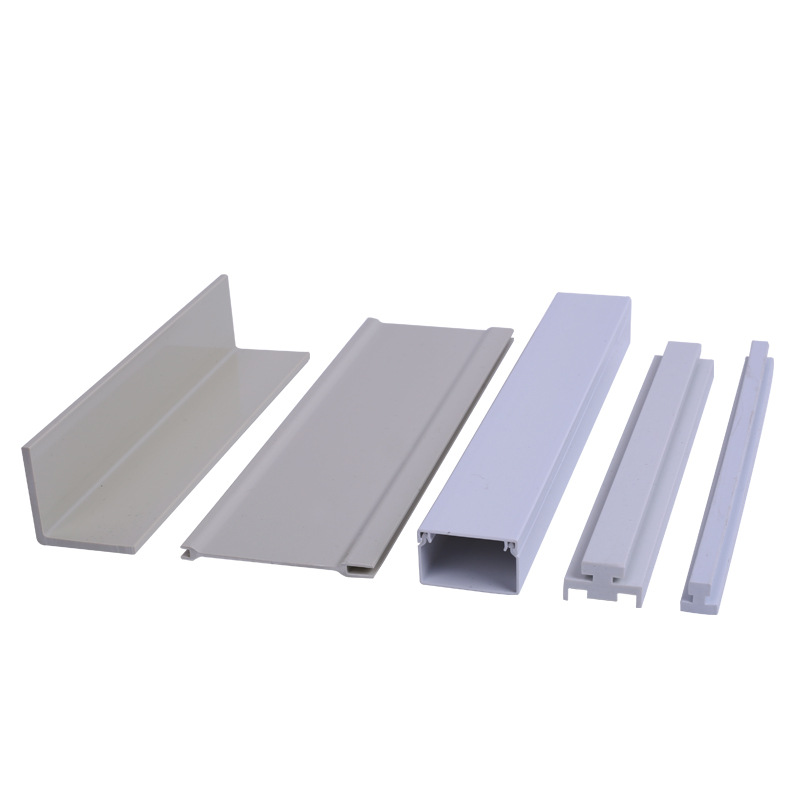

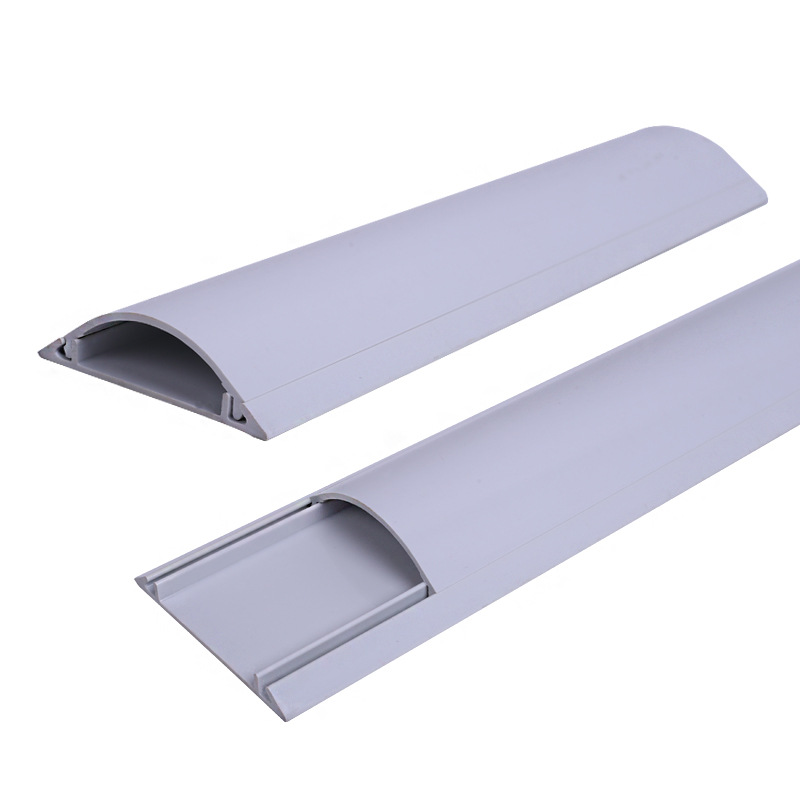

kinds of cable trunking conduit shape, if others interested, welcome to contact ChanElectric, a good price you will have from Chanelectric
