Construction
Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.
what's the duplex service drop cable?

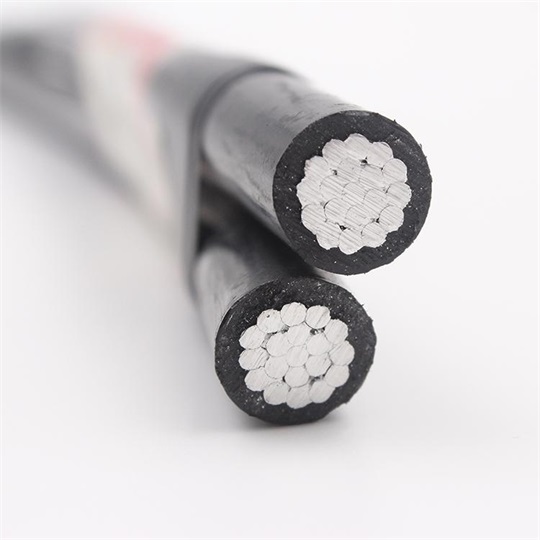

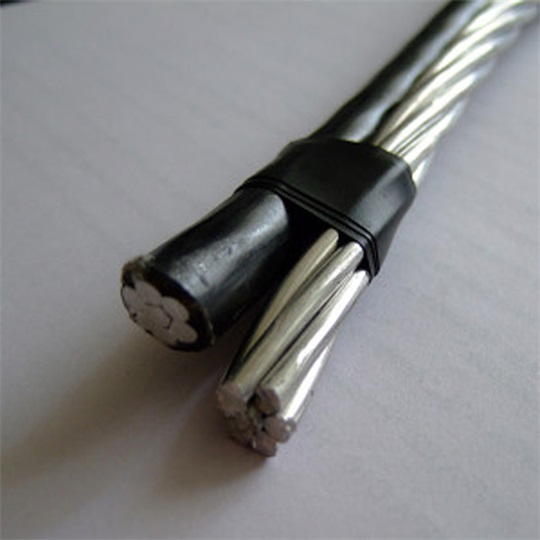

Duplex service drop cable is one tramission line cable, conductor material is concentric stranding or compressed 1350-H19 aluminum wires,its insulation could be polyethylene or crosslinked polyethylene or PVC, neutral messenger conductor is concentric strand AAC, ACSR, or 6201 alloy .
Standards ASTM B-230, B-231, B-232 and B-399 & ICEA S-76-474
Code Name | Phase conductor | Bare neutral messenger | Weight per 1000 ft(lbs) | Rating(Amps) | ||||||||||
Size | Strand | Insulation | Size | Strand | Breaking | XLP | POLY | XLP | POLY | |||||
AWG | thickness | AWG | strength | |||||||||||
(mls) | (lbs) | |||||||||||||
AAC messenger cable | ||||||||||||||
Pekingese | 6 | solid | 45 | 6 | 7/w | 563 | 63.5 | 61.7 | 70 | 70 | ||||
Collie | 6 | 7/w | 45 | 6 | 7/w | 563 | 66.8 | 63.1 | 70 | 70 | ||||
Dachshund | 4 | solid | 45 | 4 | 7/w | 881 | 95.5 | 93.4 | 90 | 90 | ||||
Spaniel | 4 | 7/w | 45 | 4 | 7/w | 881 | 100.5 | 95.4 | 90 | 90 | ||||
Doberman | 2 | 7/w | 45 | 2 | 7/w | 1,350 | 152.7 | 145.7 | 120 | 120 | ||||
Malemute | 1/0 | 19/w | 60 | 1/0 | 7/w | 1,990 | 242.6 | 234.2 | 160 | 160 | ||||
ACSR NEUTRAL-MESSENGER | ||||||||||||||
Setter | 6 | solid | 45 | 6 | 6/1 | 1.19 | 75 | 73.2 | 70 | 70 | ||||
Shepherd | 6 | 7/w | 45 | 6 | 6/1 | 1.19 | 78.3 | 74.6 | 70 | 70 | ||||
Eskimo | 4 | solid | 45 | 4 | 6/1 | 1.86 | 113.7 | 111.6 | 90 | 90 | ||||
Terrier | 4 | 7/w | 45 | 4 | 6/1 | 1.86 | 118.7 | 113.6 | 90 | 90 | ||||
Chow | 2 | 7/w | 45 | 2 | 6/1 | 2.85 | 181.7 | 174.7 | 120 | 120 | ||||
Bull | 1/0 | 19/w | 60 | 1/0 | 6/1 | 4.38 | 288.7 | 280.3 | 160 | 160 | ||||
6201 ALLOY NEUTRAL-MESSENGER | ||||||||||||||
Chihuahua | 6 | solid | 45 | 6 | 7/w | 1,110 | 67.6 | 65.8 | 70 | 70 | ||||
Vizsla | 6 | 7/w | 45 | 6 | 7/w | 1,110 | 70.9 | 67.2 | 70 | 70 | ||||
Harrier | 4 | solid | 45 | 4 | 7/w | 1,760 | 102 | 99.9 | 90 | 90 | ||||
Whippet | 4 | 7/w | 45 | 4 | 7/w | 1,760 | 107 | 101.9 | 90 | 90 | ||||
Schnauzer | 2 | 7/w | 45 | 2 | 7/w | 2,800 | 163.3 | 156.2 | 120 | 120 | ||||
Heeler | 1/0 | 19/w | 60 | 1/0 | 7/w | 4,460 | 259.2 | 250.8 | 160 | 160 |
AAC Neutral messenger cable
Code Name | Phase conductors | Bare neutral | Weight per 1000 ft.(lbs) | Ampacity (Amps) | |||||||||||
Size AWG or MCM | Stranding | Insulation thickness (mls) | Size (AWG) | Stranding | Rated strength (lbs) | XLP | Poly | XLP | Poly | ||||||
AAC NEUTRAL-MESSENGER | |||||||||||||||
Haiotis | 6 | solid | 45 | 6 | 7 | 563 | 102.5 | 98.8 | 85 | 70 | |||||
Patella | 6 | 7/w | 45 | 6 | 7 | 563 | 109.1 | 101.6 | 85 | 70 | |||||
Fusus | 4 | solid | 45 | 4 | 7 | 881 | 151.9 | 147.6 | 115 | 90 | |||||
Oyster | 4 | 7/w | 45 | 4 | 7 | 881 | 161.8 | 151.7 | 115 | 90 | |||||
Clam | 2 | 7/w | 45 | 2 | 7 | 1,350 | 243.2 | 229.2 | 150 | 120 | |||||
Murex | 1/0 | 7/w | 60 | 1/0 | 7 | 1,990 | 395.1 | 369.4 | 205 | 160 | |||||
Purpura | 1/0 | 19/w | 60 | 1/0 | 7 | 1,990 | 386.1 | 369.4 | 205 | 160 | |||||
Nassa | 2/0 | 7/w | 60 | 2/0 | 7 | 2,510 | 485.8 | 455.3 | 235 | 185 | |||||
Melita | 3/0 | 19/w | 60 | 3/0 | 19 | 3,310 | 585.2 | 562.9 | 275 | 215 | |||||
Portunus | 4/0 | 19/w | 60 | 4/0 | 19 | 4,020 | 723.9 | 697.3 | 315 | 245 | |||||
Nannynose | 336.4 | 19/w | 80 | 336.4 | 19 | 6,146 | 1160.4 | 1118.0 | 420 | 325 | |||||
WITH FULL SIZE ACSR MESSENGER | |||||||||||||||
Paludina | 6 | solid | 45 | 6 | 6/1 | 1,190 | 114 | 113 | 85 | 70 | |||||
Voluta | 6 | 7/w | 45 | 6 | 6/1 | 1,190 | 120 | 113 | 85 | 70 | |||||
Whelk | 4 | solid | 45 | 4 | 6/1 | 1,860 | 169 | 165 | 115 | 90 | |||||
Periwinkle | 4 | 7/w | 45 | 4 | 6/1 | 1,860 | 176 | 172 | 115 | 90 | |||||
Conch | 2 | 7/w | 45 | 2 | 6/1 | 2,850 | 267 | 261 | 150 | 120 | |||||
Neritina | 1/0 | 7/w | 60 | 1/0 | 6/1 | 4,380 | 530 | 419 | 205 | 160 | |||||
Cenia | 1/0 | 19/w | 60 | 1/0 | 6/1 | 4,380 | 426 | 416 | 205 | 160 | |||||
Runcina | 2/0 | 7/w | 60 | 2/0 | 6/1 | 5,310 | 530 | 519 | 235 | 185 | |||||
Triton | 2/0 | 19/w | 60 | 2/0 | 6/1 | 5,310 | 526 | 514 | 235 | 185 | |||||
Cherrystone | 3/0 | 7/w | 60 | 3/0 | 6/1 | 6,620 | 656 | 643 | 250 | 200 | |||||
Mursia | 3/0 | 19/w | 60 | 3/0 | 6/1 | 6,620 | 650 | 638 | 250 | 200 | |||||
Razor | 4/0 | 7/w | 60 | 4/0 | 6/1 | 8,350 | 814 | 799 | 315 | 245 | |||||
Zuzara | 4/0 | 19/w | 60 | 4/0 | 6/1 | 8,350 | 805 | 792 | 315 | 245 | |||||
Limpet | 336.4 | 19/w | 80 | 336.4 | 18/1 | 8,680 | 1209 | 1167 | 420 | 325 |
ACSR Messenger conductor cable
Code name | Phase conductors | Bare neutral | Weight per 1000 ft.(lbs) | Ampacity (Amps) | ||||||||||
Size AWG or MCM | Stranding | Insulation | Size | Stranding | Rated | XLP | Poly | XLP | Poly | |||||
thickness | (AWG) | strength | ||||||||||||
(mls) | (lbs) | |||||||||||||
WITH ACSR REDUCED SIZE MESSENGER | ||||||||||||||
Scallop | 4 | Solid | 45 | 6 | 6/1 | 1,190 | 148 | 144 | 115 | 90 | ||||
Strombus | 4 | 7/w | 45 | 6 | 6/1 | 1,190 | 158 | 148 | 115 | 90 | ||||
Cockle | 2 | 7/ w | 45 | 4 | 6/1 | 1,860 | 233 | 227 | 150 | 120 | ||||
Janthina | 1/0 | 7/ w | 60 | 2 | 6/1 | 2,850 | 376 | 365 | 205 | 160 | ||||
Ranella | 1/0 | 19/ w | 60 | 2 | 6/1 | 2,850 | 372 | 362 | 205 | 160 | ||||
Cavolinia | 2/0 | 7/ w | 60 | 1 | 6/1 | 3,550 | 462 | 451 | 235 | 185 | ||||
Clio | 2/0 | 19/ w | 60 | 1 | 6/1 | 3,550 | 458 | 446 | 235 | 185 | ||||
Sanddollar | 3/0 | 7/ w | 60 | 1/0 | 6/1 | 4,380 | 570 | 557 | 275 | 215 | ||||
Aega | 3/0 | 19/ w | 60 | 1/0 | 6/1 | 4,380 | 565 | 552 | 275 | 215 | ||||
Cuttlefish | 4/0 | 7/ w | 60 | 2/0 | 6/1 | 5,310 | 706 | 691 | 315 | 245 | ||||
Cerapus | 4/0 | 19/ w | 60 | 2/0 | 6/1 | 5,310 | 699 | 684 | 315 | 245 | ||||
Cowry | 336.4 | 19/ w | 80 | 4/0 | 6/1 | 8,350 | 1135 | 1093 | 420 | 325 | ||||
6201 ALLOY NEUTRAL-MESSENGER | ||||||||||||||
Chihuahua | 6 | solid | 45 | 6 | 7/w | 1,110 | 67.6 | 65.8 | 70 | 70 | ||||
Vizsla | 6 | 7/w | 45 | 6 | 7/w | 1,110 | 70.9 | 67.2 | 70 | 70 | ||||
Harrier | 4 | solid | 45 | 4 | 7/w | 1,760 | 102 | 99.9 | 90 | 90 | ||||
Whippet | 4 | 7/w | 45 | 4 | 7/w | 1,760 | 107 | 101.9 | 90 | 90 | ||||
Schnauzer | 2 | 7/w | 45 | 2 | 7/w | 2,800 | 163.3 | 156.2 | 120 | 120 | ||||
Heeler | 1/0 | 19/w | 60 | 1/0 | 7/w | 4,460 | 259.2 | 250.8 | 160 | 160 |
