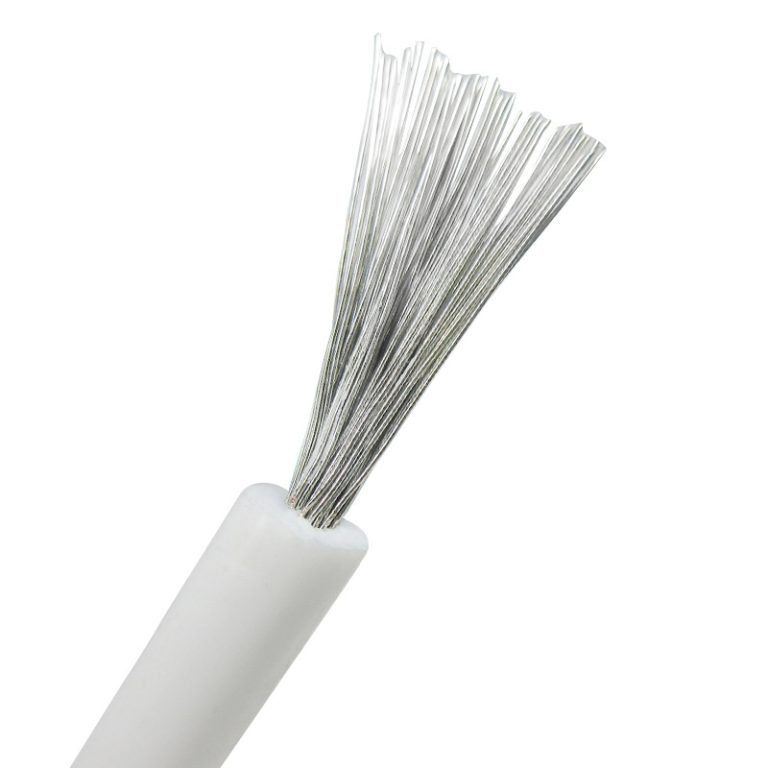

FEP Wire

Description

FEP, also called Fluorinated Ethylene Propylene, has excellent electrical properties, a broad temperature range, and high chemical resistance.

FEP Hook up wire can be used in high temperature place, such as military, oil & gas, chemical, aviation, aerospace.

Parameters

	Conductor structure	Insulation thickness	Average outside diameter	20 ℃ conductor DC resistance	Packing length
Cross section	Strands / diameter	（mm）	（mm）	（Ω/km）	（m）
（mm2）	（mm）
0.014	7/0.05	0.15	0.45	1454	500
0.035	7/0.08	0.15	0.6	568	500
0.05	7/0.10	0.15	0.6	356	500
0.08	7/0.12	0.2	0.78	245	500
0.12	7/0.15	0.25	0.95	163	500
0.2	7/0.20	0.25	1.1	90.4	500
0.35	19/0.16	0.25	1.3	53.1	200
0.5	19/0.18	0.25	1.4	40.1	200
0.75	19/0.23	0.25	1.7	24.6	200
1	19/0.26	0.25	1.8	20.4	200
1.2	19/0.28	0.3	2	16.6	200
1.5	19/0.32	0.3	2.25	12.7	200
2	19/0.37	0.3	2.45	10	100
2.5	19/0.41	0.4	2.8	7.43	100
4	37/0.37	0.4	3.4	4.88	100
6	37/0.45	0.5	4.2	3.3	100
8	133/0.28	0.5	5.2	2.3	100
10	133/0.32	0.5	5.8	1.82	100
16	133/0.39	0.6	7	1.22	100
20	133/0.45	0.6	8	0.919	100
25	196/0.40	0.6	8.8	0.795	100
35	494/0.30	0.7	10.4	0.565	100
50	396/0.40	0.8	12.2	0.393	100
70	551/0.40	1	14.6	0.277	100
95	760/0.40	1.2	17.2	0.21	100
0.03	1/0.20	0.15	0.5	560	500
0.05	1/0.25	0.18	0.6	386.9	500
0.07	1/0.30	0.2	0.7	245	500
0.12	1/0.40	0.2	0.8	146.9	500
0.2	1/0.50	0.25	1	94	500
0.3	1/0.60	0.25	1.1	65.3	200
0.5	1/0.80	0.3	1.4	36.7	200
0.75	1/0.97	0.25	1.48	24.7	200
0.78	1/1.0	0.3	1.6	24.7	200
1	1/1.13	0.3	1.7	18.2	200
1.13	1/1.20	0.3	1.8	16.5	200
2.5	1/1.78	0.4	2.6	7.56	100
