1-core:The copper conductor is insulated with natural rubber and sheathed with natural rubber or chloroprene rubber
Multi-core: The copper conductor is insulated with natural rubber. Two to six insulated conductors are cabled together with extruded rubber filler,and sheathed with natural rubber or chloroprene rubber.

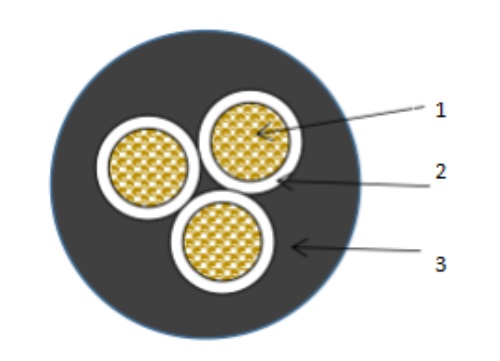

1.Copper conductor
2.EPR insulation
3.CPE sheath
This product is suitable for power supply to power appliances,home appliances and movable field electric equipment at U0/U 450/750V or less.
| Type | Description | Application Range |
| YZ | Natural rubber insulated and natural rubber sheathedmedium duty flexible cable | For movable electric appliances and tools.Type W is suitable for outdoor condition or place where oil exists. |
| YZW | Natural rubber insulated and chloroprene rubber sheathed medium duty flexible cable | For movable electric appliances,able tobear larger mechanical force.Type W issuitable for outdoor condition or placewhere oil exists. |
| YC | Natural rubber insulated and natural rubber sheathedheavy duty flexible cable | |
| YCW | Natural rubber insulated and chloroprene rubber sheathed heavy duty flexible cable |
Supply Range
| Type | Rated Voltage V | No of Cores | Nominal Area of Conductor sq.mm |
| YZ 、YZW | 300/300 | 2,3,4,5,6 | 0.75 to 6 |
| YC 、YCW | 450/750 | 1,3,425 | 1.5 to 1501.5 to 951.5 to 25 |
Technical Characteristics of EPR Insulated and EPR or CPE Sheathed Light-duty Flexible Cable
Type YZ (245 IEC 53),YZW (245 IEC 57)
| No of Coresx NominalArea ofConductor | Stranding No/Dia | Nominal InsulationThickness | NominalSheathThickness | Average Overall Dia mm | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | |||
| No x sq.mm | No/mm | mm | mm | Min | Max | Copper | Tinnedcopper | YZ | YZW |
| 2X0.752X1.02X1.52X2.52X4.02X6.0 | 24/0.20 32/0.20 30/0.25 49/0.25 77/0.26 84/0.30 | 0.60.60.80.91.01.0 | 0.80.91.01.11.21.3 | 6.06.68.09.510.611.8 | 8.28.810.512.513.715.1 | 26.019.513.37.984.953.30 | 26.720.013.78.215.083.39 | ----243300 | 7185122172250311 |
| 3X0.753X1.03X1.53X2.53X4.03X6.0 | 24/0.20 32/0.20 30/0.25 49/0.25 77/0.26 84/0.30 | 0.60.60.80.91.01.0 | 0.90.91.01.11.21.3 | 6.57.08.610.011.312.6 | 8.89.211.013.014.516.1 | 26.019.513.37.984.953.30 | 26.720.013.78.215.083.39 | ----304389 | 91104154216317403 |
| 4X0.754X1.04X1.54X2.54X4.04X6.0 | 24/0.20 32/0.20 30/0.25 49/0.25 77/0.26 84/0.30 | 0.60.60.80.91.01.0 | 0.90.91.11.21.31.4 | 7.17.69.611.012.714.0 | 9.610.012.514.016.217.9 | 26.019.513.37.984.953.30 | 26.720.013.78.215.083.39 | ----380485 | 110126192271392490 |
| 5X0.755X1.05X1.55X2.55X4.05X6.0 | 24/0.20 32/0.20 30/0.25 49/0.25 77/0.26 84/0.30 | 0.60.60.80.91.01.0 | 1.01.01.11.31.41.6 | 8.08.510.512.514.115.7 | 11.011.513.515.517.920.0 | 26.019.513.37.984.953.30 | 26.720.013.78.215.083.39 | ----459594 | 134153231334472615 |
| 6X0.756X1.06X1.56X2.56X4.06X6.0 | 24/0.20 32/0.20 30/0.25 49/0.25 77/0.26 84/0.30 | 0.60.60.80.91.01.0 | 1.01.11.21.41.51.7 | 8.28.710.913.215.517.4 | 10.711.514.016.919.822.1 | 26.019.513.37.984.953.30 | 26.720.013.78.215.083.39 | 151174263409556716 | 156179270418567730 |
Technical Characteristics of EPR Insulated and EPR or CPE Sheathed Light-duty Flexible Cable Type YC,YCW (245 IEC 66)
| No of Coresx NominalArea ofConductor | Stranding No/Dia | Nominal InsulationThickness | Nominal SheathThicknessmm | Average Overall Dia mm | Max DCConductorresistance at20℃(Ω/km) | Approxweight ofcable(kg/km) | |||||
| OneLayer | Doublelayers | ||||||||||
| No x sq.mm | No/mm | mm | Inner | Outer | Min | Max | Copper | Tinnedcopper | YZ | YZW | |
| 3X253X353X503X703X953X1203X150 | 196/0.40 276/0.40 396/0.40 360/0.50 475/0.50 608/0.50 756/0.50 | 1.41.41.61.81.81.82.0 | 3.84.14.54.85.35.66.0 | 1.51.61.81.92.12.22.4 | 2.32.52.72.93.23.43.6 | 26.529.531.538.544.048.053.0 | 34.038.043.549.554.059.066.5 | 0.7800.5540.3860.2720.2060.1610.129 | 0.7950.5650.3930.2770.2100.1640.132 | 1528220727013508458155006854 | 1588229728053612473156507014 |
| 4X1.54X2.54X4.04X6.04X104X16 | 30/0.25 49/0.25 77/0.26 84/0.30 84/0.40 126/0.40 | 0.80.91.01.01.21.2 | 1.71.92.02.33.43.6 | -----1.4 | -----2.2 | 10.512.514.516.521.524.5 | 13.515.518.022.028.032.0 | 13.37.984.953.301.911.21 | 13.78.215.093.391.951.24 | 2122984085668541147 | 2253084305968841187 |
| 4X254X354X504X704X954X1204X150 | 196/0.40 276/0.40 396/0.40 360/0.50 475/0.50 608/0.50 756/0.50 | 1.41.41.61.81.81.82.0 | 4.14.44.85.25.96.06.5 | 1.61.71.92.02.32.42.6 | 2.52.72.93.23.63.63.9 | 29.533.038.043.049.053.059.0 | 37.542.048.555.060.565.574.0 | 0.7800.5540.3860.2720.2060.1610.129 | 0.7950.5650.3930.2770.2100.1640.132 | 1953254334454510595871008919 | 2055264335504690612072809019 |
| 5X1.55X2.55X4.05X6.05X105X165X25 | 30/0.25 49/0.25 77/0.26 84/0.30 84/0.40 126/0.40 | 0.80.91.01.01.21.21.4 | 1.82.02.22.33.63.94.4 | -----1.51.7 | -----2.42.7 | 11.513.516.018.024.027.032.5 | 15.017.019.324.531.035.541.5 | 13.37.984.953.301.911.210.780 | 13.78.215.093.391.951.240.795 | 247359520711122516022380 | 267379550750127516622475 |
