PVC single core FLRY-A wire widely used in auto, motorbike, and high temperature appliance.
wire temperature: –40°C - 105°C
ISO 6722 Class B
| conductor | Insulation | cable | ||||
| nominal sectional area | #/mm | OD | 20°C resistance | insulation | OD | Weight |
| mm2 | No./mm | (mm) | mΩ/m | (mm) | mm | kg/km |
| 1x0.22 | 7/0.21 | 0.7 | 84.80/86.50 | 0.2 | 1.2 | 3 |
| 1x0.35 | 7/0.26 | 0.8 | 52.00/54.50 | 0.2 | 1.3 | 5 |
| 1x0.50 | 19/0.19 | 1 | 37.10/38.20 | 0.22 | 1.6 | 7 |
| 1x0.75 | 19/0.23 | 1.2 | 24.70/25.40 | 0.24 | 1.9 | 9 |
| 1x1.00 | 19/0.26 | 1.35 | 18.50/19.10 | 0.24 | 2.1 | 11 |
| 1x1.50 | 19/0.32 | 1.7 | 12.70/13.00 | 0.24 | 2.4 | 16 |
| 1x2.00 | 19/0.37 | 2 | 9.42/9.69 | 0.24 | 2.6 | 23 |
| 1x2.50 | 19/0.41 | 2.2 | 7.60/7.80 | 0.28 | 3 | 26 |

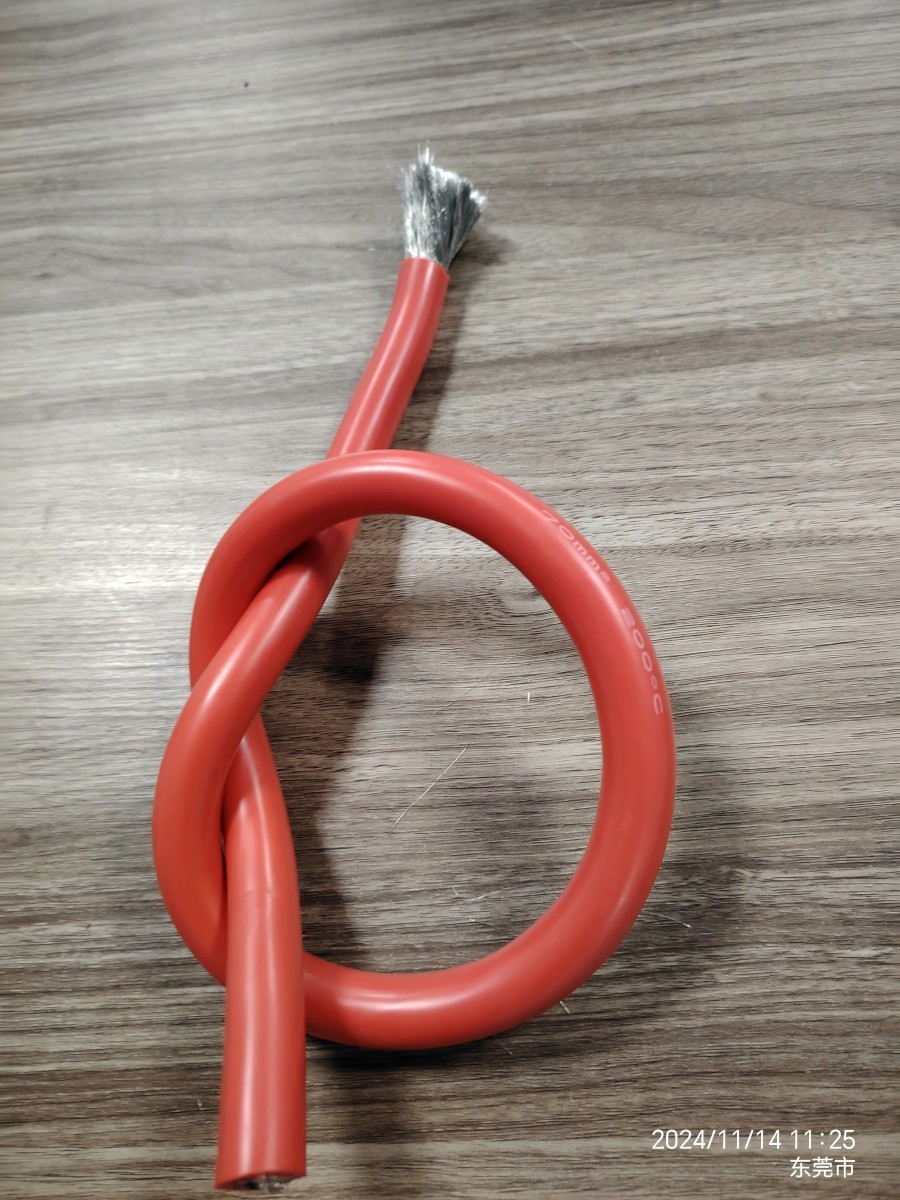

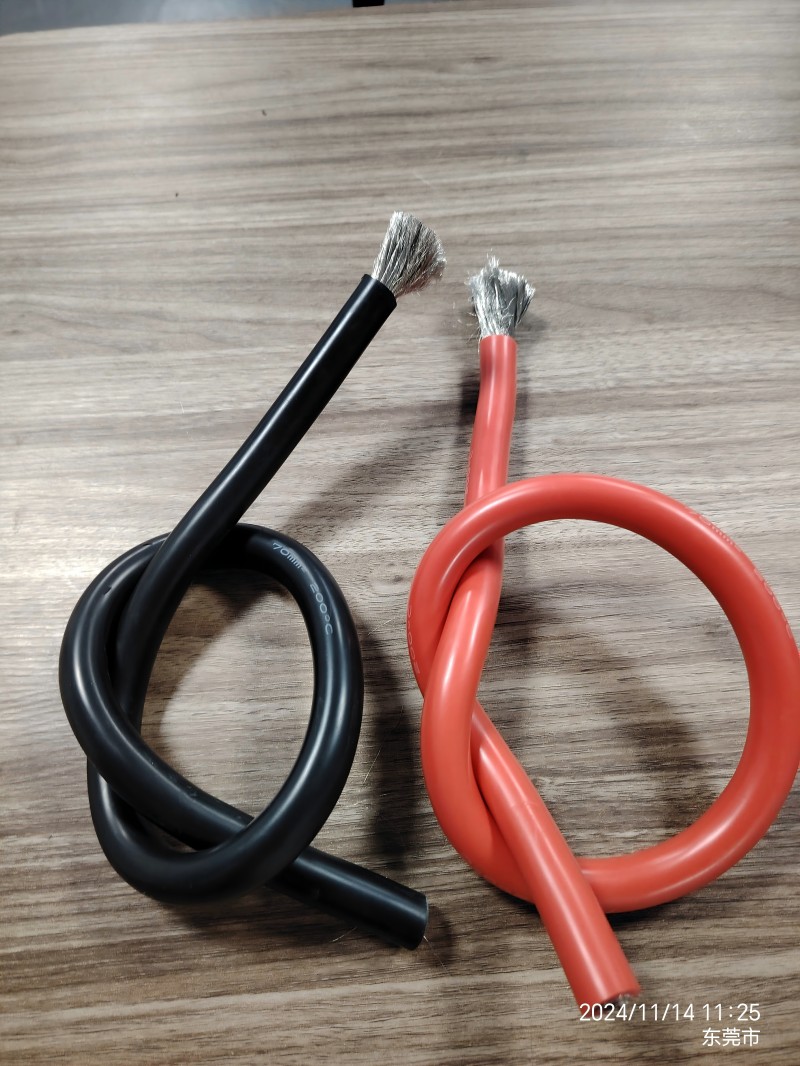

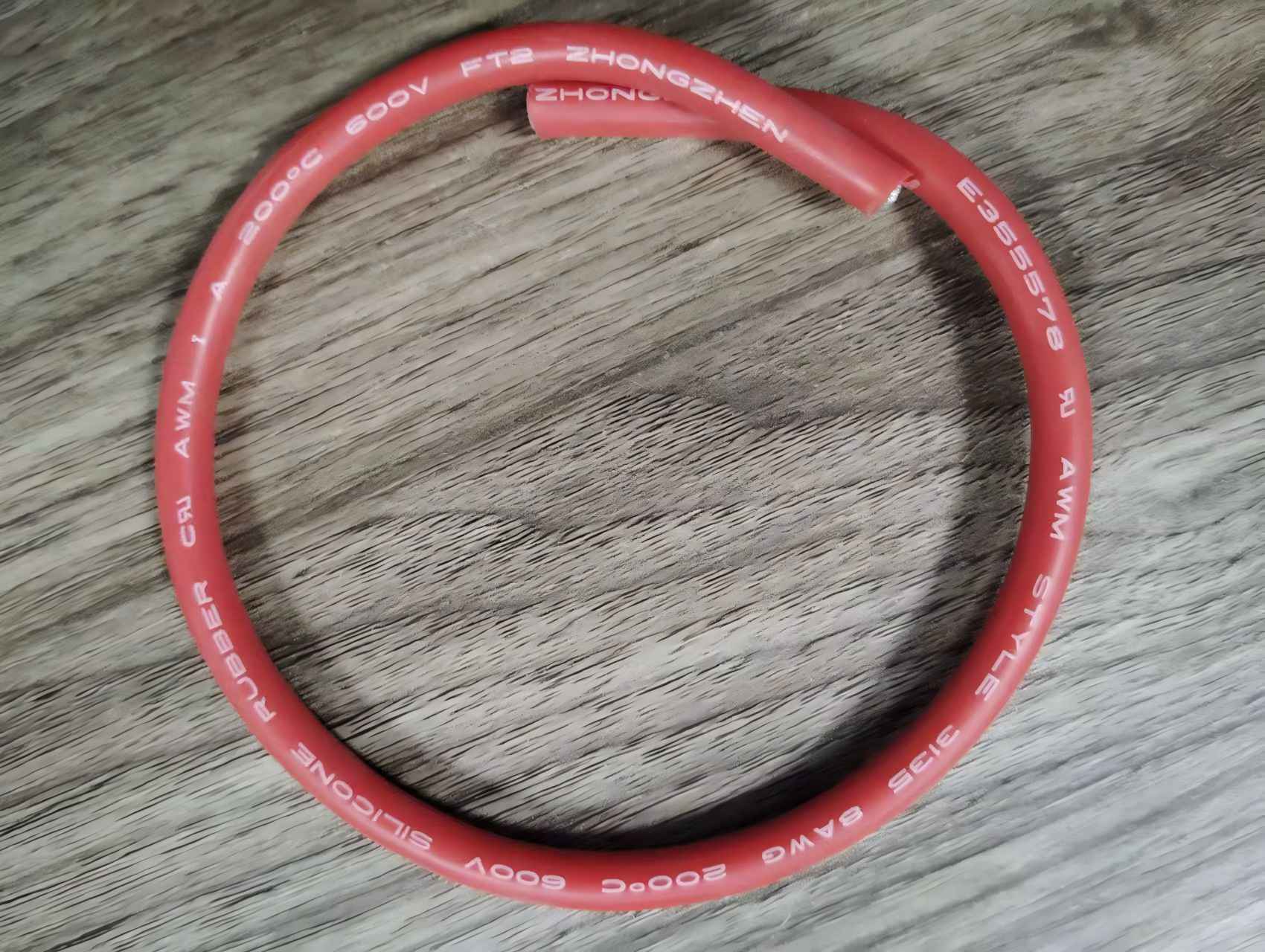

we have good experience with high temperature wire, silicone wire, and our wire have worked to auto industry with our domestic famous brand.
our team could work under your design, also provide you OEM service.
any inquiry, welcome to contact Chanelectric in directly.
