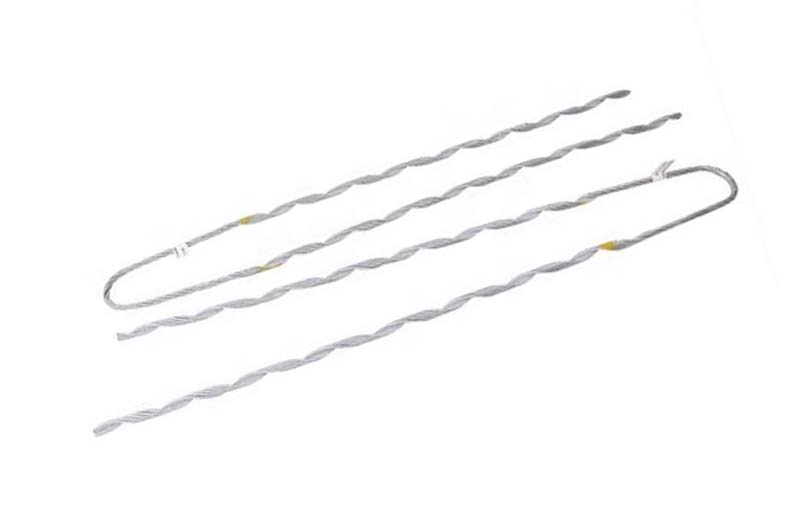

guy grip is also called guy grip dead end or preformed guy grip. It’s the world’s best-preformed guy grip dead end for connecting and gripping the conductor, grounding wire, and optical fiber application.
According to the application needs, the guy grip includes dead end cable grips and dead end grip. The guy grip has helically formed legs with inert grits on every turn that holds the messenger wire, conductor, or fiber optic cable securely.
Also, the strand is tacked together on the bent part of the guy grip. The guy grip sizes include Guy Grip 1/8″ 3/8″ 5/16″ and so on.
Classified as a formed wire design, Preformed Dead End Cable Grips are able to secure the soft pliable surface of a drop cable without causing attenuation. Unlike wedge type Dead-ends, the formed wire Dead-end effectively transfers the axial load on the cable at the end of the Dead-end legs to a low uniform radial compression near the dead-end loop. This transition of force is distributed over the length of the product thus allowing secure holding capability with minimized pressure on the cable or messenger.
corrosion resistance
the preformed grip is hot dip galvanzied as per BS EN 10244-2:2001.
Weigh of coating and uniformity of coatings test should be as BS EN10244:2-2001.
the preformed grip is made for right hand last strand.
| TYPE | diameter of bearer or stay wire mm | size of wire to be warpped | stranded dia. of each wire grip | overall lenght | length applied on strands | Accommodates |
| Strand Sizes | ||||||
| 1/2.5 | 2.5 | 1/2.5 | 1.6 | 0.37 | 0.27 | 1/4″ to 7/16″ |
| 7/1.25 | 3.8 | 7/1.25 | 1.8 | 0.50 | 0.35 | 1/4″ to 7/16″ |
