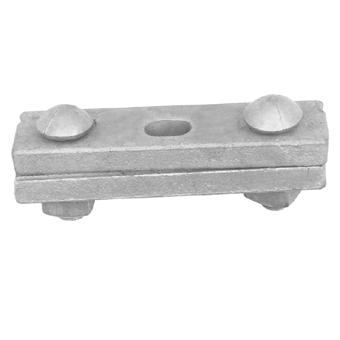

Guy wire clamp is a type of parallel groove clamp mainly used on the communication line and transmission line, it is used in loop type guy dead-ends together with the stay wire and anchor rod to make the pole stable. The guy clamp is also called guy wire clamp.
One set guy clamp includes 2 pieces, two grooves on each pieces of guy clamp.
Types: 1 bolt guy clamp, 2 bolt guy clamp, 3 bolt guy clamp.
Guy wire clamp as one type of tension hardware, it is widely used for overhead transmission line up to 35KV, completing the tension connection on cable and conductors.
| TYPE | Length | Width | Product Finish | Material | Note | Weight | Accommodates |
| Strand Sizes | |||||||
| JY- 5055 | 1 15/16″ | 1 9/16″ | Galvanized, ASTM A-153 | Steel | One bolt 1/2″ guy clamp | 0.6 lbs | 1/4″ to 7/16″ |
| JY-Straight 6450 | 6″ (152 mm) | 1 9/16″ | Galvanized, ASTM A-153 | Steel | Three 1/2″ Carriage Clamping Bolts | 2.12 lbs | 1/4″ to 7/16″ |
| JY-Straight 6460 | 6″ (152 mm) | 2 1/8″ | Galvanized, ASTM A-153 | Steel | Three 5/8″ Carriage Clamping Bolts | 4.05 LBS | 3/8″ to 5/8″ |
| JY-Straight 6461 | 6″ (152 mm) | 1-21/32″ | Galvanized, ASTM A-153 | Steel | Three 5/8″ Carriage Clamping Bolts | 2.4 lbs | 5/16″ to 1/2″ |
| JY-Straight 6462 | 4″ (102 mm) | 1 21/32″ | Galvanized, ASTM A-153 | Steel | Two 5/8″ Carriage Clamping Bolts | 1.74 lbs | 5/16″ to 1/2″ |
| JY-Strait 7901 | 2 1/2″ | Galvanized, ASTM A-153 | Steel | 5/8″ Mounting Bolt | 0.66 lbs | 1/4″ to 7/16″ | |
| JY-Angled 7902L | 7″ (178 mm) | Galvanized, ASTM A-153 | Steel | 5/8″ Mounting Bolt | 2 lbs | 1/4″ to 7/16″ | |
| JY-Angled 7902R | 7″ (178 mm) | Galvanized, ASTM A-153 | Steel | 3/4″ Mounting Bolt | 1.97 lbs | 1/4″ to 7/16″ | |
| JY-Strait 7903 | 5 3/4″ | Galvanized, ASTM A-153 | Steel | 5/8″ Mounting Bolt | 1.83 lbs | 1/4″ to 7/16″ | |
| JY-Strait 7903L | 5 3/4″ | Galvanized, ASTM A-153 | Steel | 5/8″ Mounting Bolt | 1.57 lbs | 1/4″ to 7/16″ | |
| JY-Angled 7904 | 5 3/4″ | Galvanized, ASTM A-153 | Steel | 3/4″ Mounting Bolt | 1.74 lbs | 1/4″ to 7/16″ |
