high temperature resistance flame retardant power cable is used as power transmission cable of electric equipments of rated voltage 0.6/1KV or lower in bad environment or that with high temperature.
it has good features of high temperature resistance, flame resistance, radiation resistance, aging resistance, ozone resistance, water proof, freezeing resistance, weather resistance
rated voltage: 600/1000V
Working temperature allowed by cable: minis 60 to +180 centi degree
temperature for installing is no less than minus 20 centi degree.

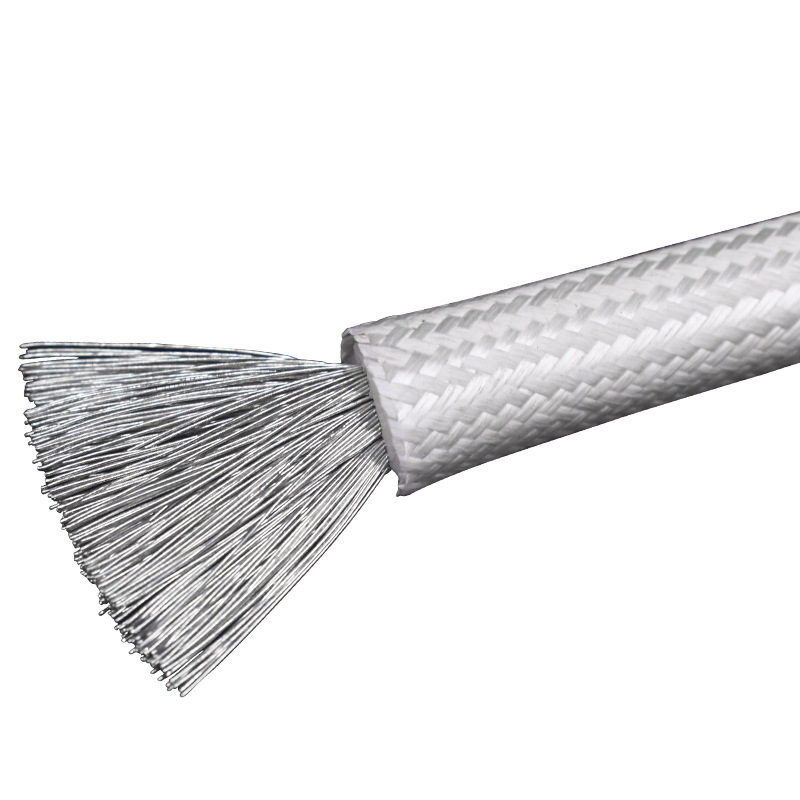

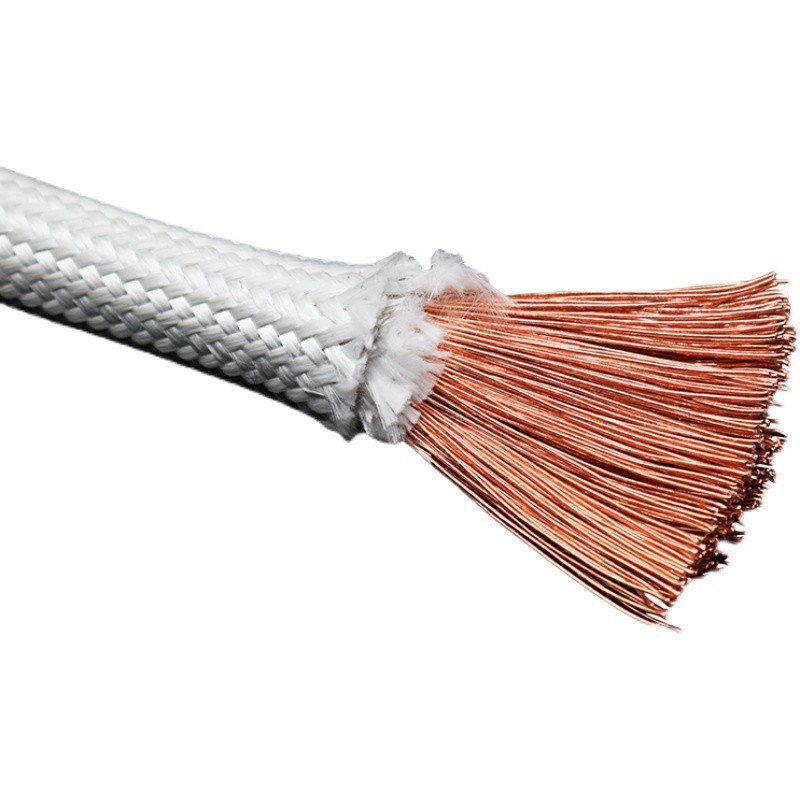

high temperature resitance cable material: FEP cable, silicone cable, silicone braided cable, mineral cable, mica tape cable
conductor: copper; tinned copper wire, siliver-copper wire
wire color: as customer required
| type | description |
| FF | High temperature resistance power cable with F46 insulation and sheath |
| FF-22 | High temperature resistance power cable with F46 insulation and sheath, Steel tape armoring |
| FG | High temperature resistance power cable with F46 insulation, silicone rubber sheath cable |
| FV | High temperature resistance power cable with F46 insulation, PVC compound sheath cable |

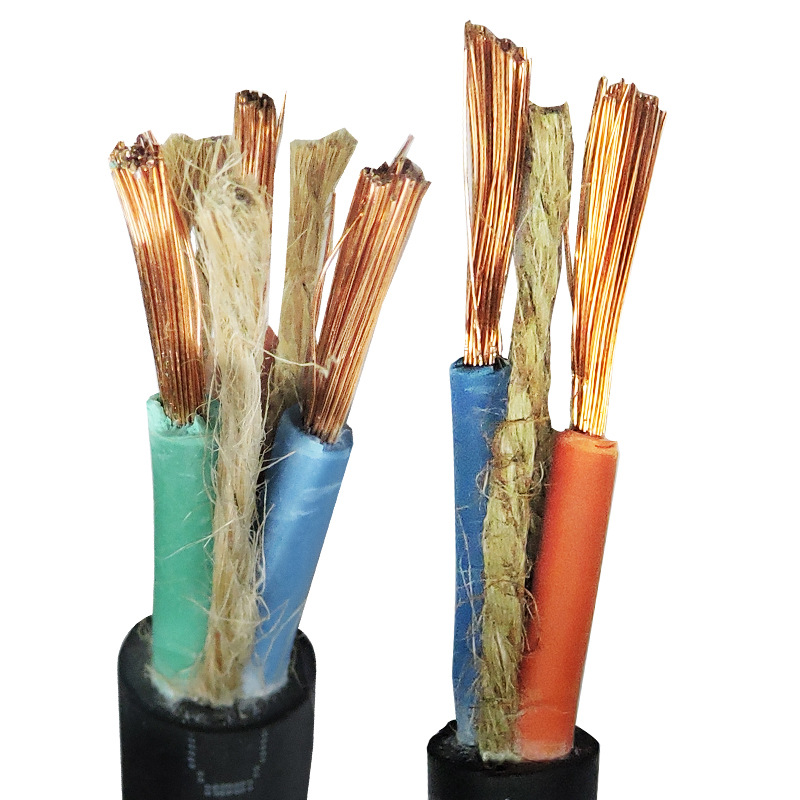

silicone rubber cable cores number 1 core,2 core, 3 cores, 4 cores, 5 cores, 3+2 cores, 3+1 cores
silicone rubber cable size: 1.5 mm2-500 mm2
MOQ: 500 m
