Product parameter

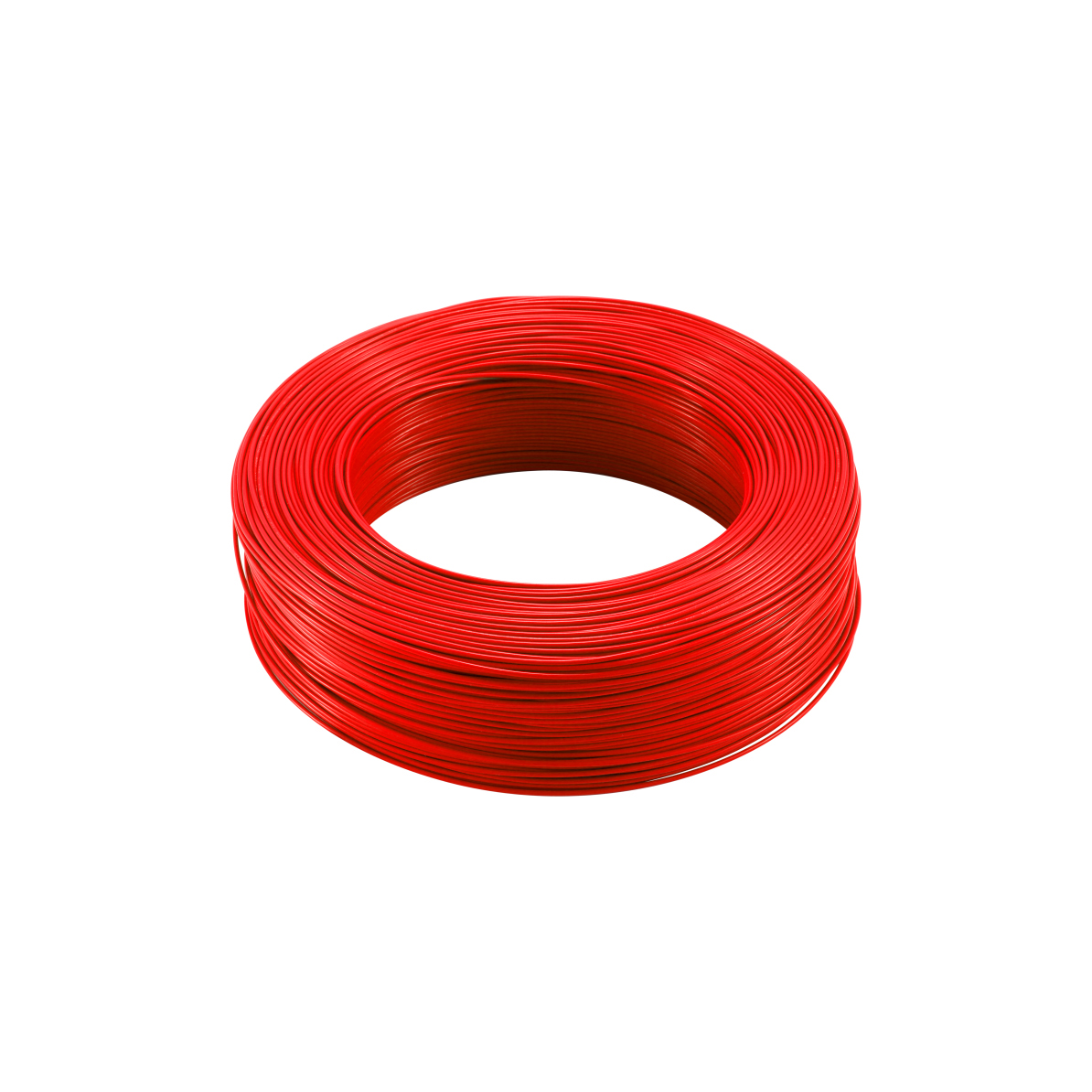

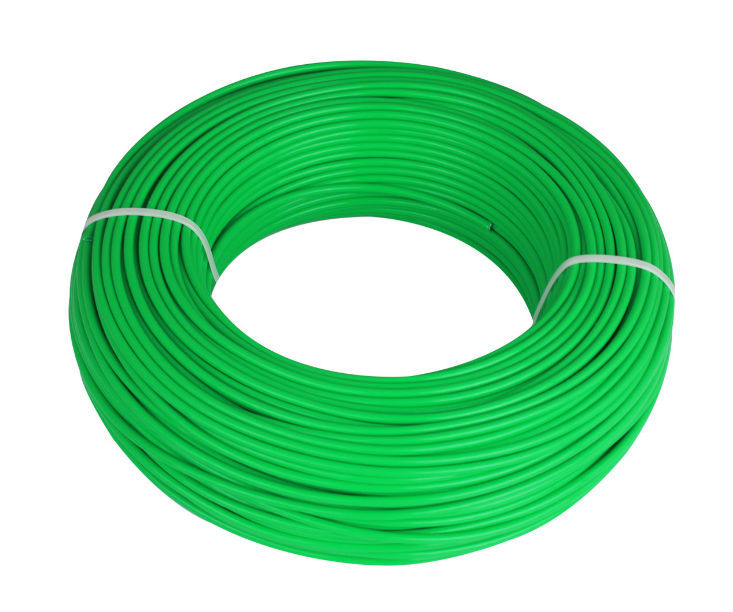

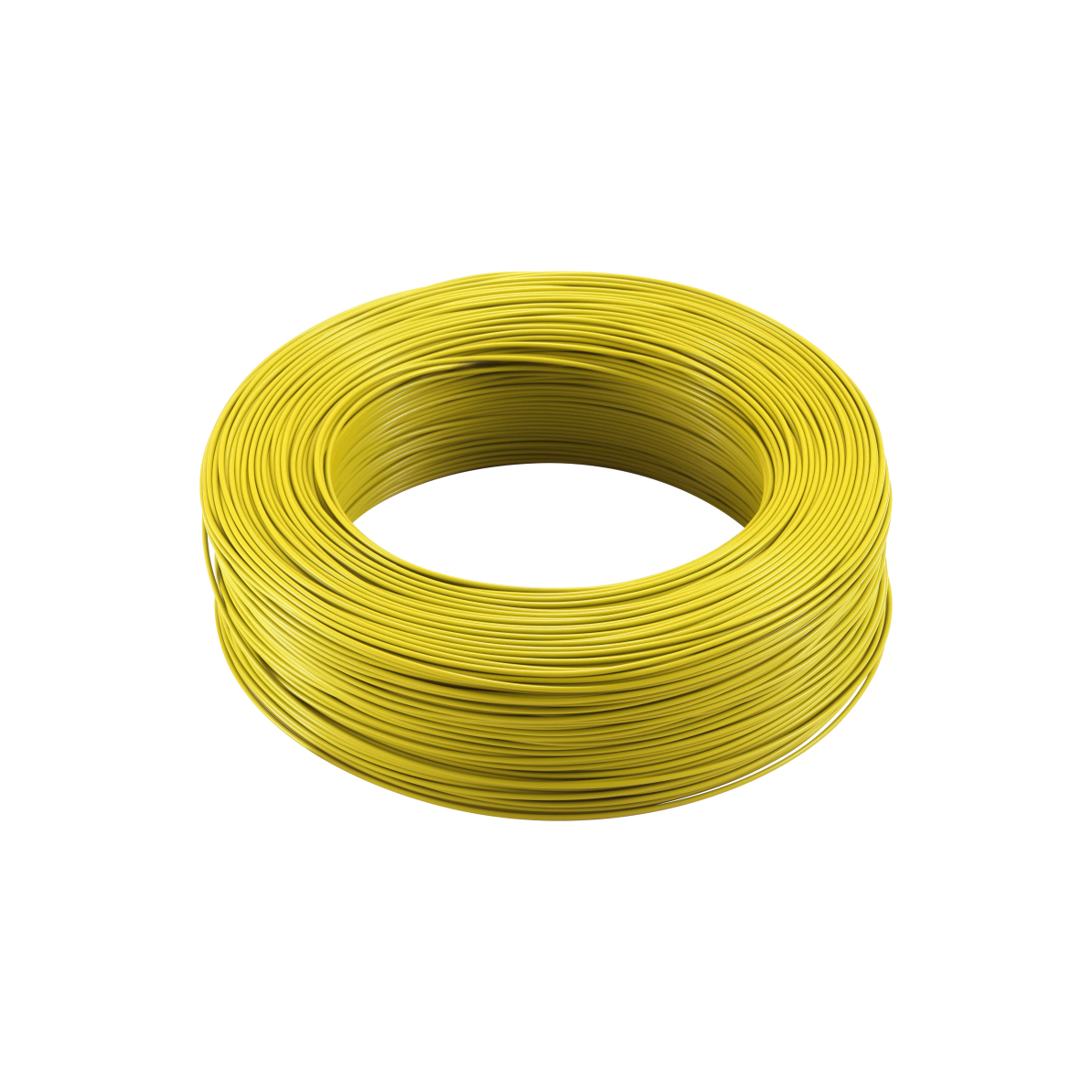

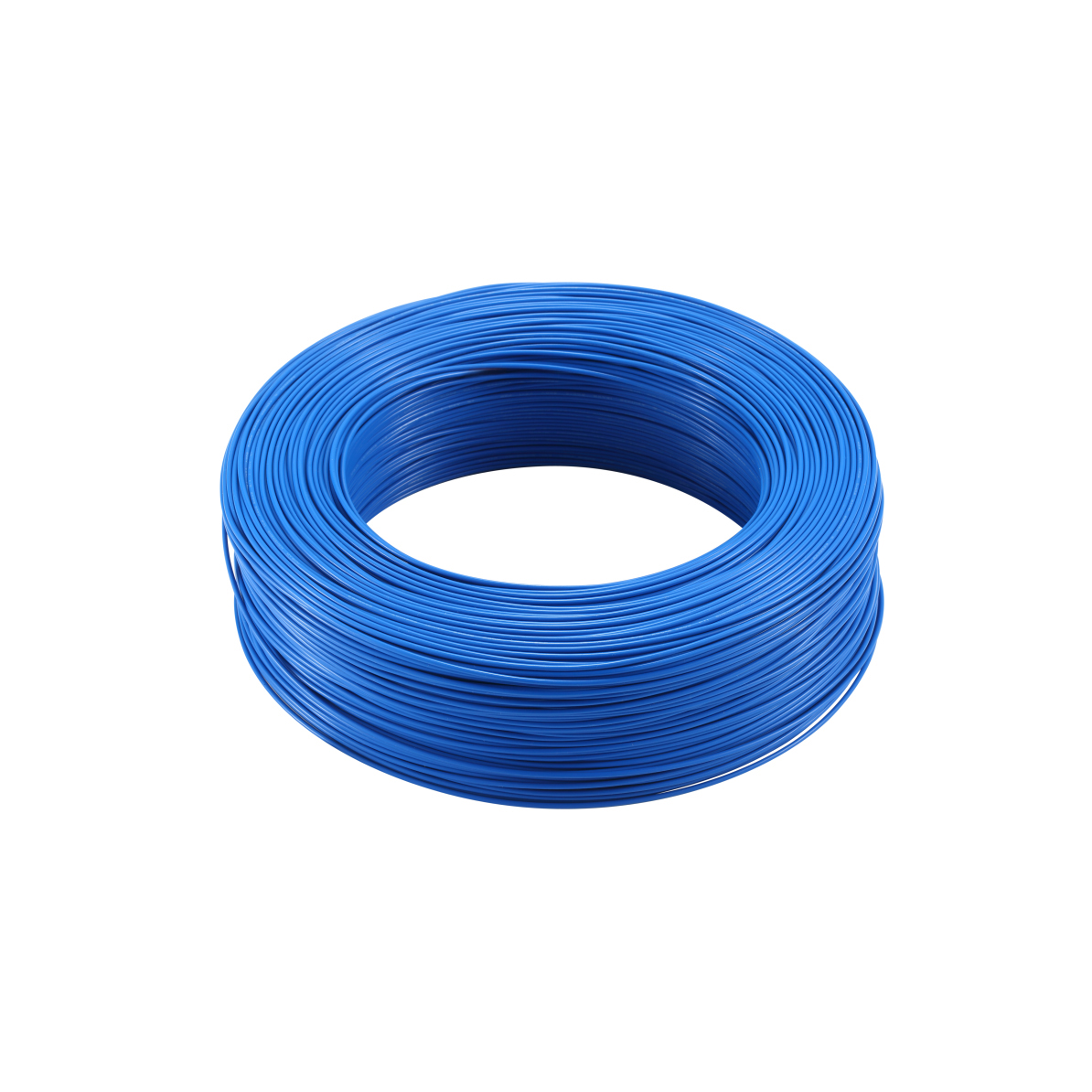

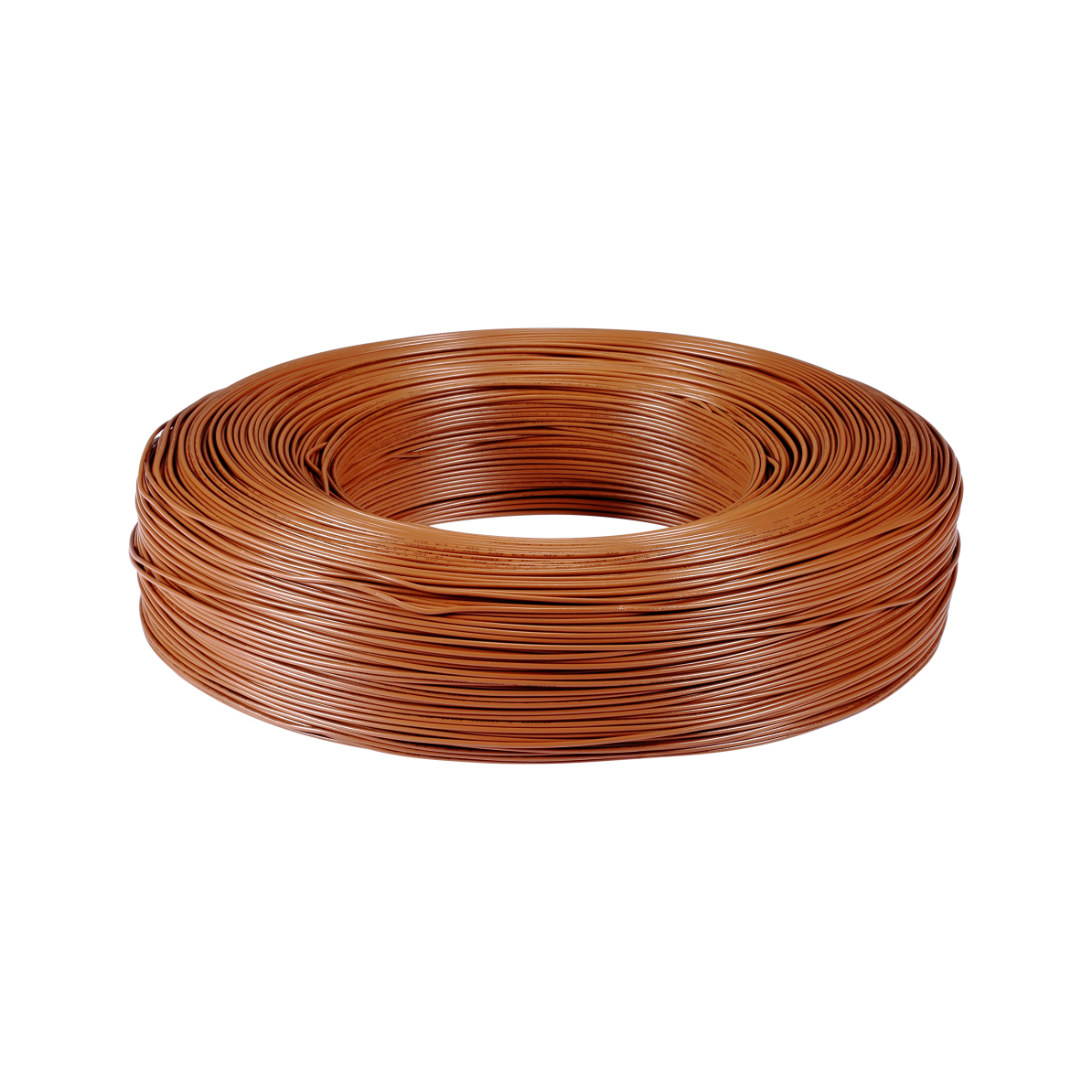

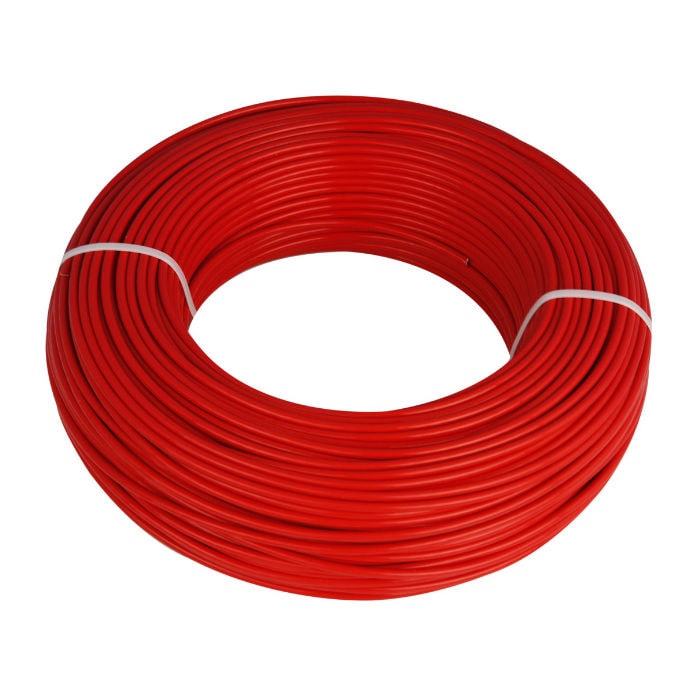

PTFE silver plated copper flexible wire widely used as Internal wiring for electronic equipments,like aerospace, instruments, high temperature resistance, aging resistance, anti corrosion, fire proof
wire temperature: -60 to +250 centi degree
voltage:250V
color: white,pink, purple, orange,red, blue,green,black,brown,yellow
wire conductor size:0.035 mm2,0.05mm2,0.07mm2.0.09m2.0.1mm2,0.12 mm2,0.15 mm2,0.2mm2,0.3mm2,0.5mm2
| AWG | Conductor area | conductor construction | wire insulation thickness | wire diameter | Conductor resistance | working temperature |
| mm2 | #/mm | mm | mm | ohm/KM | centi degree | |
| 32 | 0.035 | 7/0.08 | 0.15 | 0.5+/-0.05 | 525 | -60 to +250 |
| 30 | 0.05 | 10/0.08 | 0.15 | 0.58+/-0.05 | 370 | |
| 28 | 0.07 | 14/0.08 | 0.15 | 0.66+/-0.05 | 260 | |
| 27 | 0.1 | 21/0.08 | 0.15 | 0.73+/-0.05 | 188 | |
| 26 | 0.12 | 24/0.08 | 0.15 | 0.76+/-0.05 | 165 | |
| 25 | 0.15 | 30/0.08 | 0.15 | 0.85+/-0.05 | 150 | |
| 24 | 0.2 | 42/0.08 | 0.15 | 0.96+/-0.05 | 90.4 | |
| 23 | 0.3 | 62/0.08 | 0.15 | 1.00+/-0.05 | / | |
| 22 | 0.35 | 75/0.08 | 0.15 | 1.15+/-0.05 | 53.1 | |
| 20 | 0.5 | 105/0.08 | 0.15 | 1.26+/-0.05 | 36 | |
| 18 | 0.75 | 150/0.08 | 0.2 | 1.58+/-0.05 | 22.7 | |
| 17 | 1.0 | 200/0.08 | 0.2 | 1.75+/-0.05 | 19 | |
| 15 | 1.5 | 300/0.08 | 0.2 | 2.10+/-0.05 | 11.7 | |
| 14 | 2.0 | 400/0.08 | 0.2 | 2.35+/-0.05 | 9.45 |
