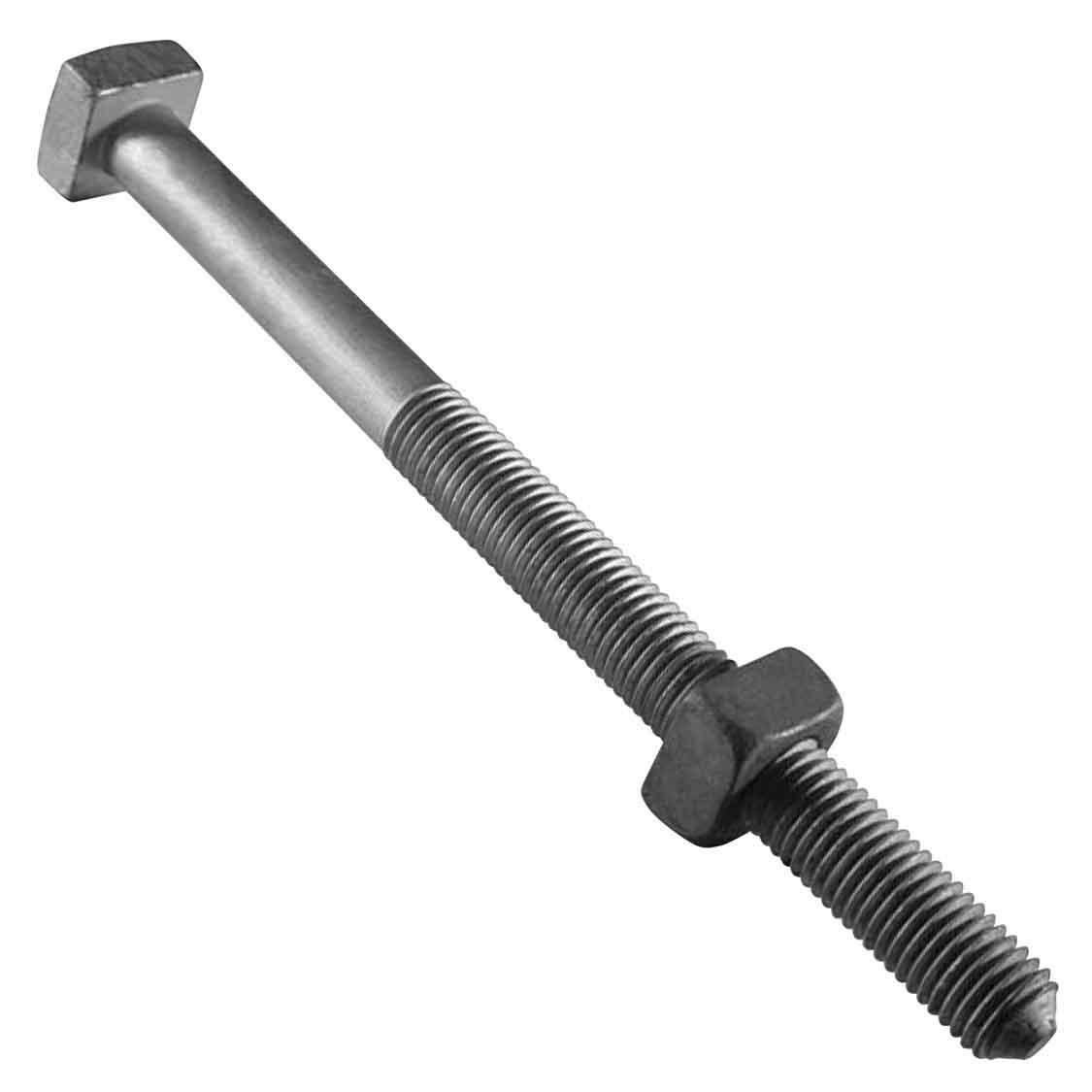

hot dip galvanized machine bolt with kinds of size
Machine bolts are hot dip galvanzied, with rolled threads and lineman preferred head and nut. bolts more than 6 inches in length are made with buf fer point. manufactured in accordance with ANSI standard C 135.1-1979.
As one of the most common fasteners in constructions and other industries, machine bolt are designed to connect two pieces of metal securely. which also can be removed easily.
1/2 inch diameter-minimum tensile strenfrh:35,000 kg
| stock no. | bolt length inch(mm) | thread length inch(mm) | approx. weight 100pc/kg | standard packing/cartons |
| A0112-1.5 | 1-1/2(38) | 1-1/4(32) | 7.70 | 250 |
| A0112-02 | 2(50) | 1-3/4(44) | 8.70 | 200 |
| A0112-2.5 | 2-1/2(63) | 2-1/4(58) | 10.00 | 200 |
| A0112-03 | 3 (75) | 2-3/4 (69) | 11.00 | 200 |
| A0112-04 | 4 (100) | 3 (75) | 13.00 | 200 |
| A 0112-05 | 5 (125) | 3 (75) | 15.00 | 200 |
| A0112-06 | 6 (150) | 3 (75) | 17.00 | 100 |
| A0112-08 | 8(200) | 4(100) | 21.00 | 100 |
| A0112-10 | 10 (250) | 4 (100) | 25.00 | 100 |
| stock no. | bolt length inch(mm) | thread length inch(mm) | approx. weight 100 pc/kg | packing/carton |
| A0158-05 | 5 (125) | 6(150) | 25 | 100 |
| A0158-06 | 6 (150) | 6(150) | 29 | 60 |
| A0158-08 | 8(200) | 6 (150) | 35 | 65 |
| A0158-10 | 10 (250) | 6 (150) | 42 | 50 |
| A0158-12 | 12 (300) | 6 (150) | 48 | 50 |
| A0158-14 | 14 (350) | 6 (150) | 53 | 50 |
| A0158-16 | 16 (400) | 6 (150) | 61 | 50 |
| stock no. | bolt length inch (mm) | thread length inch (mm) | approx. weight 100 pc/kg | packing/carton kg |
| A0134-08 | 8 (200) | 4 (100) | 51 | 50 |
| A0134-10 | 10 (250) | 4 (100) | 61 | 45 |
| A0134-12 | 12 (300) | 6 (150) | 71 | 60 |
| A0134-14 | 14 (350) | 6 (150) | 80 | 40 |
| A0134-16 | 16 (400) | 6 (150) | 90 | 40 |
| A0134-18 | 18 (450) | 6 (150) | 100 | 40 |
| A0134-20 | 20 (500) | 6 (150) | 110 | 40 |
7/8 Inches diameter minimum tensile strength:11,550 kg
| A0178-14 | 14(350) | 6 (150) | 129 | 25 |
| A0178-16 | 16(400) | 6 (150) | 137 | 25 |
| A0178-18 | 18 (450) | 6 (150) | 145 | 25 |
| A0178-20 | 20 (500) | 6 (150) | 153 | 25 |
| A0178-22 | 22 (550) | 6 (150) | 161 | 25 |
