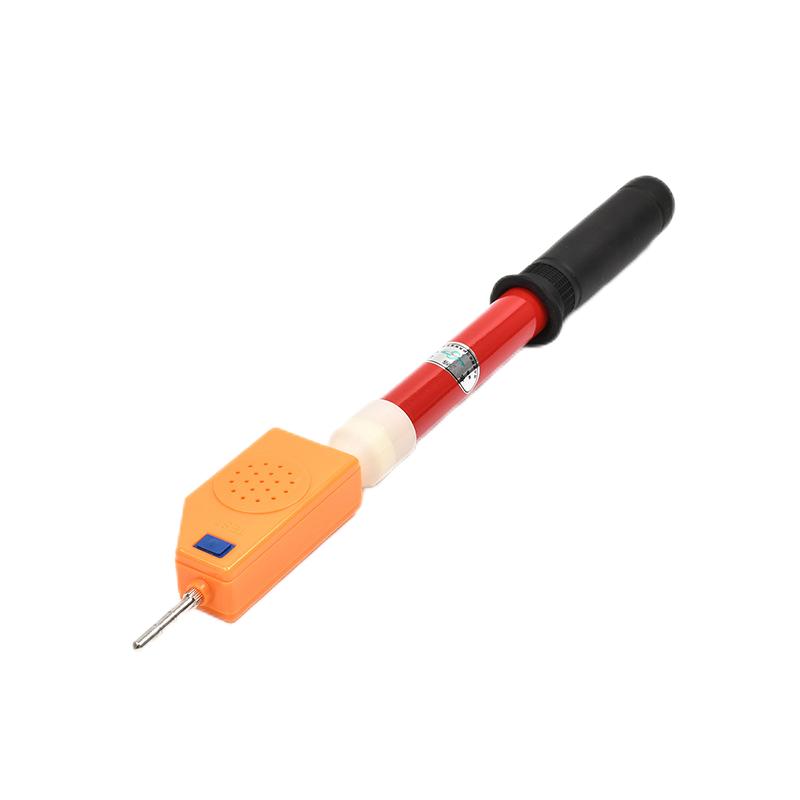

High Voltage Electroscope

Application

High voltage electroscope AC sound and light alarm test electrical device used to detect whether the object have charging or not, it is necessary saftey tool in power plants, substation, mining and electrical equipments.

Advantages

1. easy to carry,portable; 2.high electrical sensitivity;3. without distrubing from power filed; 4, auto detect when power on; 5, long working time

Parameters

model	voltage grade KV	section number	shrink length mm	elongation length mm	effective insulation length mm	handle length mm	weight g	material
CH-GDY	0.1-10	7	170	900	700	100	150	epoxy resin rod
	10	5	380	1000	700	130	270	ABS/epoxy resin rod
	35	5	480	1500	1100	200	500	ABS/epoxy resin rod
	110	5	580	2000	1440	400	600	epoxy resin rod
	220	5	780	3100	2440	500	1000	epoxy resin rod
	330	5	1320	6000	5200	800	2000	epoxy resin rod
	500	6	1600	7200	6000	1200	2500	epoxy resin rod
