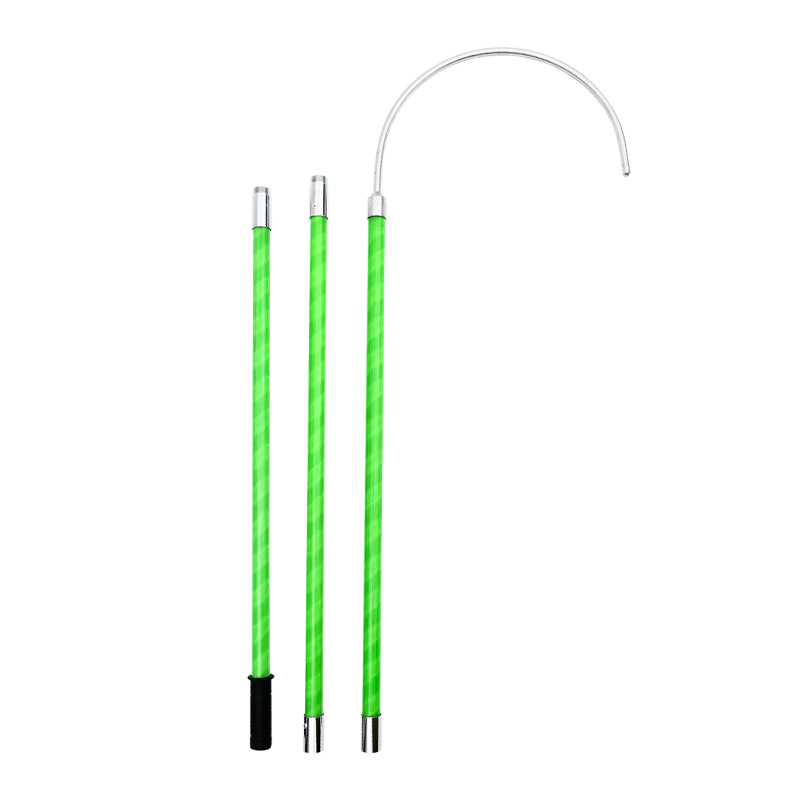

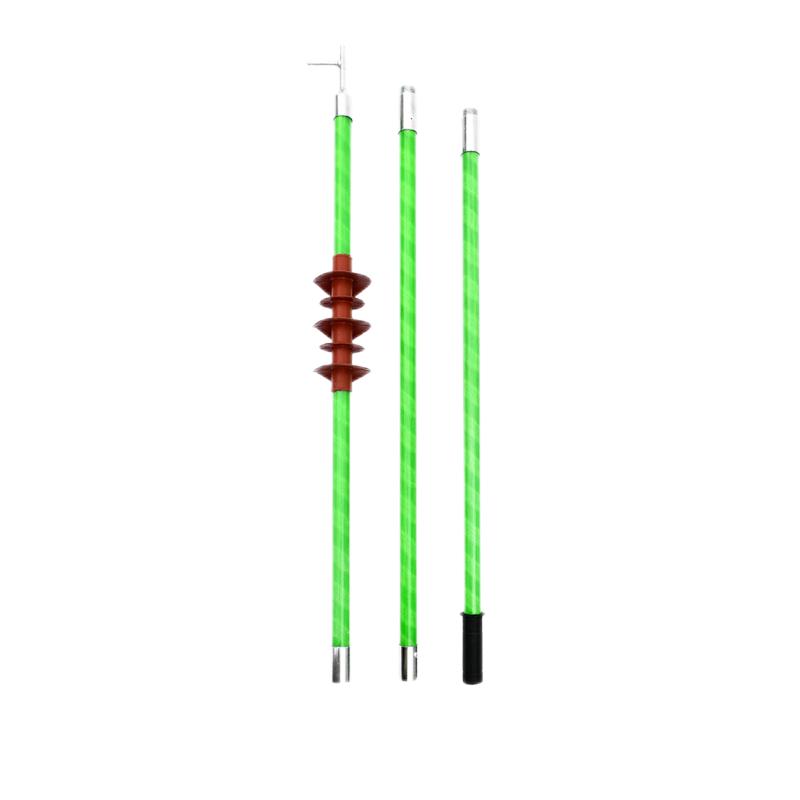

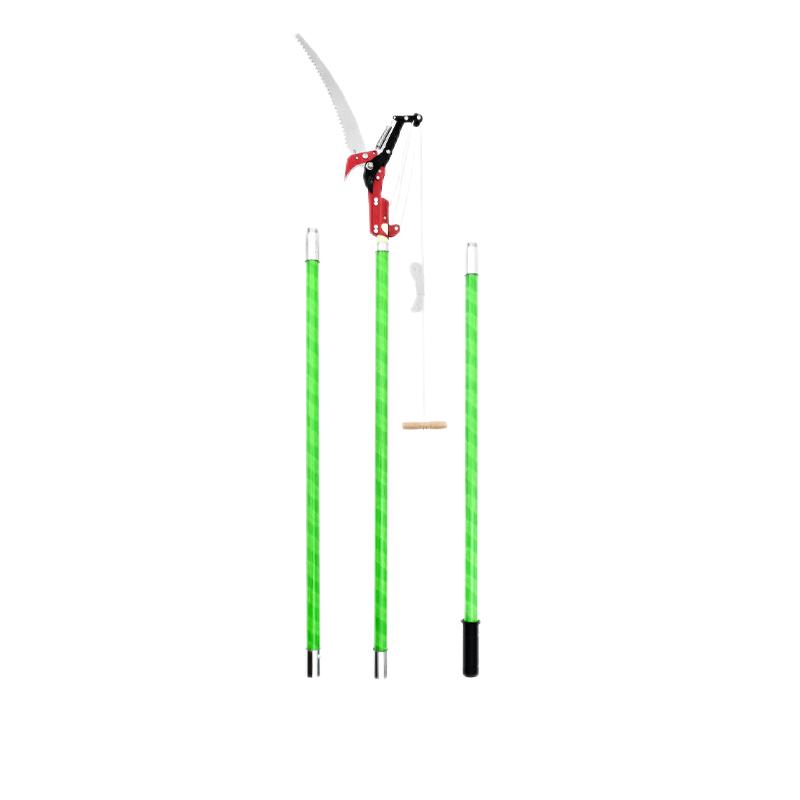

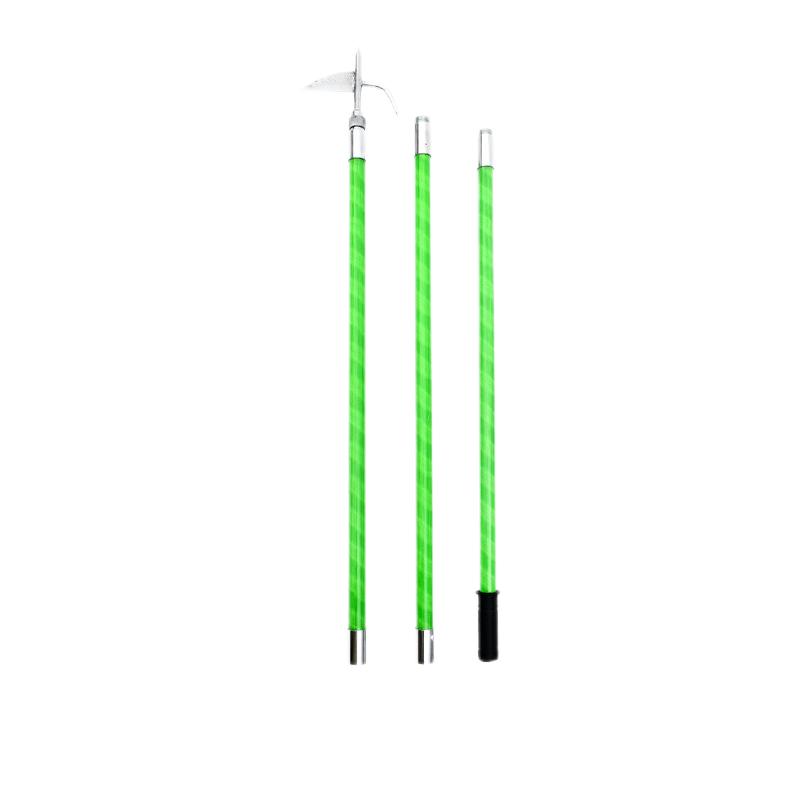

HT Gate Insulation Operating rods

  • 30 years production experience
  • quality inspected before shipping
  • Rated voltage: 10kv-500kv
  • length:1300-3400 mm

Application

Operating rods, also called high voltage gate, make gram sticks, has good performance on insulation, it is used for a short time on the charged equipment to operate as insulation tools, such as turn on or turn off the HT connectors, drop fuse, etc

Aavantages

  1. security 2. good insulation; 3. durable 4. light weight 5. different rod material; 6. extenstion length to be 8 m.7. quality inspected before shipping

Parameters

typevoltage withstand KVsection number and lengthmaterial
iron then button10KV-500KV3/4 section, 3-8mepoxy resin rod
telescopic
10KV-500KV
3/4 section, 3-8mepoxy resin rod
electroscope type
multifuction

10KV-500KV
3/4 section, 3-8mepoxy resin rod
compostion: discharge rod+ single phase ground wire+ground clamp
