hot dip galvanized ANSI insulator pin for Low voltage and High voltage

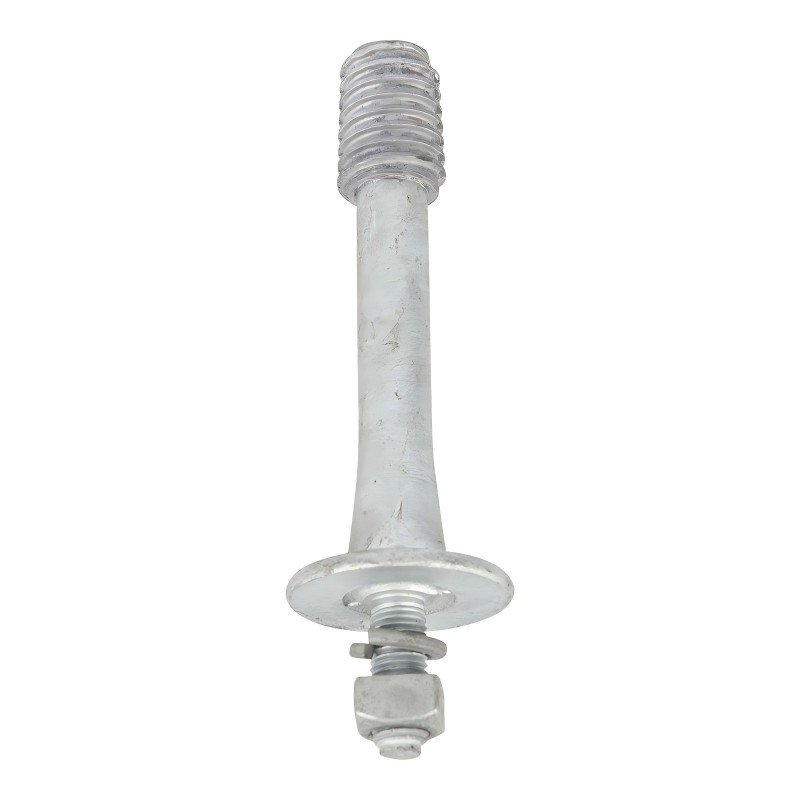

The forge low voltage insulator steel pin are forged in one piece from basic open hearth steel and provide with a square wreching shoulder, these pins have 1 inch ANSI standard cast lead thread and comes complete with 2*2*1/8 square washer, square nut and MF lock nut.
The high voltage steel pin comes into two pices open-heart steel. the stud bolt shank is deeply screwed and welded to the forged base of the pin arm. the pins have a 1-3/8 inch ANSI cast lead threads.
stand off pin is used for carrying the lead to transformer.
low voltage steel pin

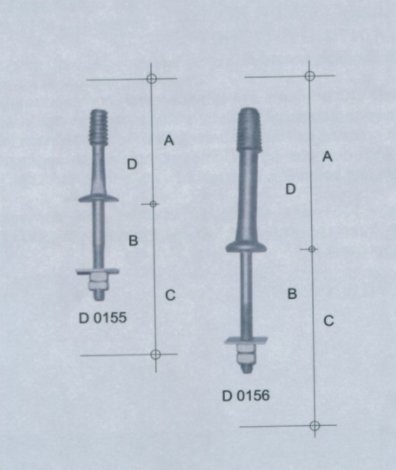

| stock no. | A inch | B inch | C inch | D inch | approx. weight 100 pc/kg | packing/carton |
| D0155-01 | 5 | 5-3/4 | 5/8 | 5/8 | 81.8 | 40 |
| D0155-02 | 5 | 6-1/2 | 5/8 | 5/8 | 86.3 | 30 |
| D0155-03 | 5 | 5-3/4 | 3/4 | 3/4 | 83.5 | 30 |
| D0155H-04 | 7-7/8 | 6-1/2 | 3/4 | 7/8 | 210 | 30 |
| stock no. | A inch | B inch | C inch | approx. weight 100pc/kg | packing/carton |
| D0156-01 | 9 | 9/16 | 3/4 | 295 | 15 |
| D0156-02 | 9 | 6-1/2 | 3/4 | 210 | 15 |
| stock no. | A inch | B inch | C inch | approx. weight 100pc/kg | packing/carton |
| D0157-01 | 6 | 7/8 | / | 159 | 10 |
