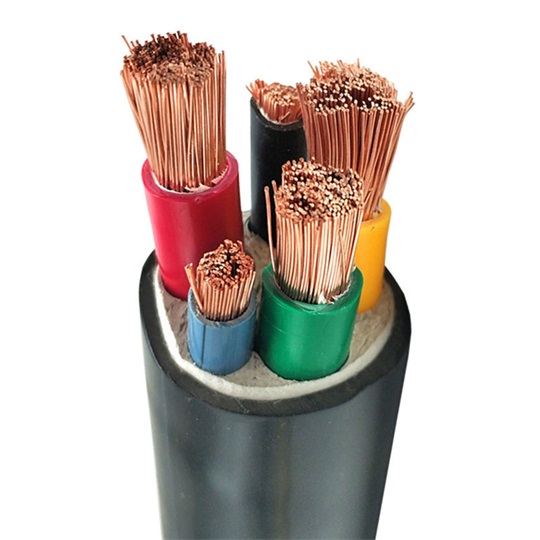

0.6/1kV PVC Insulated Power Cable
Installation Temperature: The installation temperature should be over 0℃,If the ambient temperature is lower than 0℃,the cable should be preheated.
Operating temperature: Max permissible continuous operating temperature of
conductor shall not exceed 70℃ .
Conductor Short-circuit Temperature: Max temperature at short-circuit shall conductor shall not exceed 160℃,The short-circuit duration shall not exceed 5 seconds.
IEC 12706,IEC60502 or other standard required by customer.
The requirements for flame retardant property is according to IEC60332-3 and GB18380.
Packing:Steel/wooden reel,wooden reel or steel reel.
PVC insulated power cable is suitable for power supply and distribution circuits in manufacturing and processing plant,commercial building or residence at the rated voltage 0.6/1kV or less. The power cables can be flame retardant application when use fire retardant material related.
| Description | Application |
| Cu or Al conductor/PVC insulated/PVC sheathed/ power cable | It is installed in indoor,in duct or in tunnel,but unable to bear pulling force and pressure |
| Cu or Al conductor/PVC insulated/steel tape armored/PVC sheathed/ power cable | It is installed in indoor,i in tunnel,directly in ground,able to bear proper pressure |
| Cu or Al conductor/PVC insulated/steel wire armored/PVC sheathed/ power cable | It is installed in indoor,in well,under water, able to bear proper pulling force |
| Cu or Al conductor/PVC insulated/PVC sheathed/ flame retardant power cable | It is installed in indoor,in duct or in tunnel,but unable to bear pulling force and pressure |
| Cu or Al conductor/PVC insulated/steel tape armored/PVC sheathed/ flame retardant power cable | It is installed in indoor,i in tunnel,directly in ground,able to bear proper pressure |
| Cu or Al conductor/PVC insulated/steel wire armored/PVC sheathed/flame retardant power cable | It is installed in indoor,in well,under water, able to bear proper pulling force |
Supply Range
| Description | No of cores | Nominal conductor cross section area (mm2) | |
| Cu or Al conductor/PVC or flame retardant PVC insulated/PVC or flame retardant PVC sheathed | 1 | 1.5 to 630 | 1.5 to 630 |
| 2 | 1.5 to 400 | 1.5 to 400 | |
| 3 | 1.5 to 400 | 1.5 to 400 | |
| 4 | 2.5 to 400 | 2.5 to 400 | |
| 5 | 2.5 to 400 | 2.5 to 400 | |
| Cu or Al conductor/PVC or flameretardant PVC insulated/steeltape or wire armor/PVC or flameretardant PVC sheathed | 2,3,4,5 | 4 to 400 | 4 to 400 |
Technical Characteristics for CU or AL/PVC/PVC,SINGLE CORE
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 1x1.5 | 0.8 | 1.54 | 6.1 | 12.1 | --- | 50.7 | 41.3 |
| 1x2.5 | 0.8 | 1.54 | 6.5 | 7.41 | 12.1 | 63.5 | 47.9 |
| 1x4 | 1.0 | 1.54 | 7.4 | 4.61 | 7.41 | 87.7 | 63.0 |
| 1x6 | 1.0 | 1.54 | 7.9 | 3.08 | 4.61 | 111.0 | 75.9 |
| 1x10 | 1.0 | 1.54 | 9.2 | 1.83 | 3.02 | 166.6 | 93.0 |
| 1x16 | 1.0 | 1.54 | 10.3 | 1.15 | 1.91 | 233.3 | 132.2 |
| 1x25 | 1.2 | 1.54 | 12.0 | 0.727 | 1.20 | 344.9 | 185.4 |
| 1x35 | 1.2 | 1.54 | 13.2 | 0.524 | 0.868 | 449.8 | 228.7 |
| 1x50 | 1.4 | 1.54 | 14.9 | 0.387 | 0.641 | 590.5 | 289.8 |
| 1x70 | 1.4 | 1.54 | 16.7 | 0.268 | 0.443 | 807.3 | 374.2 |
| 1x95 | 1.6 | 1.65 | 19.3 | 0.193 | 0.320 | 1102.0 | 501.4 |
| 1x120 | 1.6 | 1.65 | 20.9 | 0.153 | 0.253 | 1349.0 | 590.3 |
| 1x150 | 1.8 | 1.76 | 23.1 | 0.124 | 0.206 | 1654.0 | 721.3 |
| 1x185 | 2.0 | 1.87 | 25.6 | 0.0991 | 0.164 | 2060.0 | 891.6 |
| 1x240 | 2.2 | 1.98 | 28.8 | 0.0754 | 0.125 | 2651.0 | 1114.0 |
| 1x300 | 2.4 | 2.09 | 31.9 | 0.0601 | 0.100 | 3323.0 | 1396.0 |
| 1x400 | 2.6 | 2.20 | 35.5 | 0.0470 | 0.0778 | 4205.0 | 1742.0 |
| 1x500 | 2.8 | 2.31 | 39.7 | 0.0366 | 0.0605 | 5359.0 | 2128.0 |
| 1x630 | 2.8 | 2.40 | 43.7 | 0.0283 | 0.0469 | 6707.0 | 2605.0 |
Technical Characteristics for CU or AL/PVC/PVC,2 CORES
| Nominalconductorcrosssectionarea(mm) | Nominal Insulationthickness (mm) | Nominalsheaththickness(mm) | ApproxOverallDiameter(mm) | Max DC Conductorresistance at20℃ (Ω/km) | Approx weight ofcable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 2X1.5 | 0.8 | 1.8 | 10.5 | 12.1 | --- | 119.0 | 100.0 |
| 2X2.5 | 0.8 | 1.8 | 11.3 | 7.41 | 12.1 | 150.0 | 118.0 |
| 2X4 | 1.0 | 1.8 | 13.1 | 4.61 | 7.41 | 210.0 | 160.0 |
| 2X6 | 1.0 | 1.8 | 14.1 | 3.08 | 4.61 | 264.0 | 192.0 |
| 2X10 | 1.0 | 1.8 | 16.7 | 1.83 | 3.02 | 393.0 | 242.0 |
| 2X16 | 1.0 | 1.8 | 18.8 | 1.15 | 1.91 | 541.0 | 334.0 |
| 2X25 | 1.2 | 1.8 | 19.6 | 0.727 | 1.20 | 794.0 | 469.0 |
| 2X35 | 1.2 | 1.8 | 21.8 | 0.524 | 0.868 | 1037.0 | 585.0 |
| 2X50 | 1.4 | 1.8 | 25.1 | 0.387 | 0.641 | 1227.0 | 620.0 |
| 2X70 | 1.4 | 1.9 | 28.2 | 0.268 | 0.443 | 1650.0 | 747.0 |
| 2X95 | 1.6 | 2.0 | 29.2 | 0.193 | 0.320 | 2213.0 | 988.0 |
| 2X120 | 1.6 | 2.1 | 31.3 | 0.153 | 0.253 | 2733.0 | 1186.0 |
| 2X150 | 1.8 | 2.2 | 34.7 | 0.124 | 0.206 | 3396.0 | 1462.0 |
| 2X185 | 2.0 | 2.4 | 37.9 | 0.0991 | 0.164 | 3943.0 | 1559.0 |
Technical Characteristics for CU or AL/PVC/PVC,3-CORES
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 3X1.5 | 0.8 | 1.8 | 10.9 | 12.1 | --- | 142 | 113 |
| 3X2.5 | 0.8 | 1.8 | 11.8 | 7.41 | 12.1 | 187 | 139 |
| 3X4 | 1.0 | 1.8 | 13.7 | 4.61 | 7.41 | 265 | 189 |
| 3X6 | 1.0 | 1.8 | 14.8 | 3.08 | 4.61 | 335 | 227 |
| 3X10 | 1.0 | 1.8 | 17.6 | 1.83 | 3.02 | 514 | 290 |
| 3X16 | 1.0 | 1.8 | 19.9 | 1.15 | 1.91 | 728 | 419 |
| 3X25 | 1.2 | 1.8 | 23.6 | 0.727 | 1.20 | 1084 | 596 |
| 3X35 | 1.2 | 1.8 | 26.1 | 0.524 | 0.868 | 1422 | 745 |
| 3X50 | 1.4 | 1.8 | 26.5 | 0.387 | 0.641 | 1801 | 834 |
| 3X70 | 1.4 | 1.9 | 28.8 | 0.268 | 0.443 | 2415 | 1061 |
| 3X95 | 1.6 | 2.1 | 33.6 | 0.193 | 0.320 | 3205 | 1418 |
| 3X120 | 1.6 | 2.2 | 37.1 | 0.153 | 0.253 | 4037 | 1716 |
| 3X150 | 1.8 | 2.3 | 41.9 | 0.124 | 0.206 | 5028 | 2127 |
| 3X185 | 2.0 | 2.5 | 45.9 | 0.0991 | 0.164 | 6180 | 2602 |
| 3X240 | 2.2 | 2.7 | 51.8 | 0.0754 | 0.125 | 7949 | 3308 |
| 3X300 | 2.4 | 2.8 | 55.3 | 0.0601 | 0.100 | 9780 | 3979 |
Technical Characteristics for CU or AL PVC PVC,4-CORES
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Al | |||||
| 4X2.5 | 0.8 | 1.8 | 12.7 | 7.41 | 12.1 | 232 | 169 |
| 4X4 | 1.0 | 1.8 | 14.9 | 4.61 | 7.41 | 322 | 221 |
| 4X6 | 1.0 | 1.8 | 16.1 | 3.08 | 4.61 | 422 | 271 |
| 4X10 | 1.0 | 1.8 | 19.2 | 1.83 | 3.02 | 649 | 388 |
| 4X16 | 1.0 | 1.8 | 21.7 | 1.15 | 1.91 | 922 | 509 |
| 4X25 | 1.2 | 1.8 | 25.9 | 0.727 | 1.20 | 1373 | 722 |
| 4X35 | 1.2 | 1.8 | 28.7 | 0.524 | 0.868 | 1802 | 899 |
| 4X50 | 1.4 | 1.9 | 30.4 | 0.387 | 0.641 | 2380 | 1091 |
| 4X70 | 1.4 | 2.0 | 33.9 | 0.268 | 0.443 | 3202 | 1398 |
| 4X95 | 1.6 | 2.2 | 39.7 | 0.193 | 0.320 | 4315 | 1866 |
| 4X120 | 1.6 | 2.3 | 44.2 | 0.153 | 0.253 | 5359 | 2265 |
| 4X150 | 1.8 | 2.5 | 48.7 | 0.124 | 0.206 | 6679 | 2811 |
| 4X185 | 2.0 | 2.6 | 53.5 | 0.0991 | 0.164 | 8190 | 3420 |
| 4X240 | 2.2 | 2.9 | 55.4 | 0.0754 | 0.125 | 10494 | 4305 |
| 4X300 | 2.4 | 3.1 | 60.2 | 0.0601 | 0.100 | 12948 | 5215 |
Technical Characteristics for CU or AL/PVC Insulated/Steel Tape Armored/PVC
sheathed Power Cable, 2-CORES
| Nominalconductor crosssectionarea(mm) | Nominal Insulation thickness (mm) | NominalBeddingThickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃(Ω/km) | Approxweight ofcable(kg/km) | ||
| Cu | Al | Cu | Al | |||||
| 2X4 | 1.0 | 1.2 | 1.8 | 13.1 | 4.61 | 7.41 | 210 | 160 |
| 2X6 | 1.0 | 1.2 | 1.8 | 14.1 | 3.08 | 4.61 | 264 | 192 |
| 2X10 | 1.0 | 1.2 | 1.8 | 16.7 | 1.83 | 3.02 | 393 | 242 |
| 2X16 | 1.0 | 1.2 | 1.8 | 18.8 | 1.15 | 1.91 | 541 | 334 |
| 2X25 | 1.2 | 1.2 | 1.8 | 22.2 | 0.727 | 1.20 | 794 | 469 |
| 2X35 | 1.2 | 1.2 | 1.8 | 24.5 | 0.524 | 0.868 | 1037 | 585 |
| 2X50 | 1.4 | 1.2 | 1.8 | 21.8 | 0.387 | 0.641 | 1227 | 610 |
| 2X70 | 1.4 | 1.2 | 1.9 | 24.7 | 0.268 | 0.443 | 1650 | 747 |
| 2X95 | 1.6 | 1.2 | 2.0 | 29.2 | 0.193 | 0.320 | 2213 | 988 |
| 2X120 | 1.6 | 1.2 | 2.1 | 31.3 | 0.153 | 0.253 | 2733 | 1186 |
| 2X150 | 1.8 | 1.3 | 2.2 | 34.7 | 0.124 | 0.206 | 3396 | 1462 |
| 2X185 | 2.0 | 1.4 | 2.2 | 39.2 | 0.0991 | 0.164 | 4112 | 1726 |
Technical Characteristics for CU or AL/PVC Insulated/Steel Tape Armored /PVC
sheathed Power Cable, 3-CORES
| Nominalconductor crosssectionarea(mm) | Nominal Insulation thickness (mm) | NominalBeddingThickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃(Ω/km) | Approxweight ofcable(kg/km) | ||
| Cu | Al | Cu | Al | |||||
| 3X4 | 1.0 | 1.2 | 1.8 | 17.3 | 4.61 | 7.41 | 489 | 414 |
| 3X6 | 1.0 | 1.2 | 1.8 | 18.4 | 3.08 | 4.61 | 577 | 472 |
| 3X10 | 1.0 | 1.2 | 1.8 | 21.2 | 1.83 | 3.02 | 800 | 559 |
| 3X16 | 1.0 | 1.2 | 1.8 | 23.5 | 1.15 | 1.91 | 1050 | 740 |
| 3X25 | 1.2 | 1.2 | 1.8 | 27.2 | 0.727 | 1.20 | 1465 | 976 |
| 3X35 | 1.2 | 1.2 | 1.9 | 30.7 | 0.524 | 0.868 | 2149 | 1372 |
| 3X50 | 1.4 | 1.2 | 2.0 | 31.3 | 0.387 | 0.641 | 2453 | 1486 |
| 3X70 | 1.4 | 1.2 | 2.1 | 33.6 | 0.268 | 0.443 | 3116 | 1763 |
| 3X95 | 1.6 | 1.2 | 2.2 | 38.3 | 0.193 | 0.320 | 4053 | 2216 |
| 3X120 | 1.6 | 1.3 | 2.3 | 41.9 | 0.153 | 0.253 | 4930 | 2609 |
| 3X150 | 1.8 | 1.4 | 2.5 | 47.1 | 0.124 | 0.206 | 6075 | 3174 |
| 3X185 | 2.0 | 1.4 | 2.6 | 50.9 | 0.0991 | 0.164 | 7299 | 3721 |
| 3X240 | 2.2 | 1.5 | 2.8 | 57.0 | 0.0754 | 0.125 | 9213 | 4590 |
| 3X300 | 2.4 | 1.7 | 3.0 | 61.1 | 0.0601 | 0.100 | 11185 | 5438 |
Technical Characteristics for CU or AL/PVC Insulated/Steel Tape Armored/PVC
sheathed Power Cable, 4-CORES
| Nominalconductor crosssectionarea(mm) | Nominal Insulation thickness (mm) | NominalBeddingThickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃(Ω/km) | Approxweight ofcable(kg/km) | ||
| Cu | Al | Cu | Al | |||||
| 4X4 | 1.0 | 1.2 | 1.8 | 18.5 | 4.61 | 7.41 | 565 | 464 |
| 4X6 | 1.0 | 1.2 | 1.8 | 19.7 | 3.08 | 4.61 | 685 | 533 |
| 4X10 | 1.0 | 1.2 | 1.8 | 22.8 | 1.83 | 3.02 | 960 | 699 |
| 4X16 | 1.0 | 1.2 | 1.8 | 25.3 | 1.15 | 1.91 | 1273 | 851 |
| 4X25 | 1.2 | 1.2 | 1.9 | 30.5 | 0.727 | 1.20 | 1998 | 1347 |
| 4X35 | 1.2 | 1.2 | 2.0 | 33.5 | 0.524 | 0.868 | 2505 | 1602 |
| 4X50 | 1.4 | 1.2 | 2.1 | 35.2 | 0.387 | 0.641 | 3122 | 1832 |
| 4X70 | 1.4 | 1.2 | 2.2 | 38.7 | 0.268 | 0.443 | 4025 | 2220 |
| 4X95 | 1.6 | 1.3 | 2.3 | 44.7 | 0.193 | 0.320 | 5291 | 2842 |
| 4X120 | 1.6 | 1.4 | 2.5 | 49.4 | 0.153 | 0.253 | 6464 | 3370 |
| 4X150 | 1.8 | 1.4 | 2.6 | 53.7 | 0.124 | 0.206 | 7866 | 3998 |
| 4X185 | 2.0 | 1.5 | 2.8 | 58.9 | 0.0991 | 0.164 | 9542 | 4772 |
| 4X240 | 2.2 | 1.7 | 3.0 | 61.0 | 0.0754 | 0.125 | 11916 | 5727 |
| 4X300 | 2.4 | 1.8 | 3.3 | 66.2 | 0.0601 | 0.100 | 14501 | 6767 |
Technical Characteristics for CU or AL/PVC Insulated/Steel Wire Armored/PVC CU/PVC/SWA/PVC Sheathed Power Cable, 2-CORES
| Nominalconductor crosssectionarea(mm) | Nominal Insulation thickness (mm) | NominalBeddingThickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃(Ω/km) | Approxweight ofcable(kg/km) | ||
| Cu | Al | Cu | Al | |||||
| 2X4 | 1.0 | 1.2 | 1.8 | 18.7 | 4.61 | 7.41 | 723 | 672 |
| 2X6 | 1.0 | 1.2 | 1.8 | 19.9 | 3.08 | 4.61 | 818 | 744 |
| 2X10 | 1.0 | 1.2 | 1.8 | 22.3 | 1.83 | 3.02 | 1044 | 802 |
| 2X16 | 1.0 | 1.2 | 1.8 | 25.2 | 1.15 | 1.91 | 1432 | 1225 |
| 2X25 | 1.2 | 1.2 | 1.9 | 28.8 | 0.727 | 1.20 | 1848 | 1522 |
| 2X35 | 1.2 | 1.2 | 1.9 | 31.1 | 0.524 | 0.868 | 2200 | 2003 |
| 2X50 | 1.4 | 1.2 | 2.0 | 28.6 | 0.387 | 0.641 | 2265 | 1620 |
| 2X70 | 1.4 | 1.2 | 2.1 | 31.5 | 0.268 | 0.443 | 2810 | 1907 |
| 2X95 | 1.6 | 1.2 | 2.3 | 36.2 | 0.193 | 0.320 | 3582 | 2357 |
| 2X120 | 1.6 | 1.2 | 2.4 | 38.3 | 0.153 | 0.253 | 4190 | 2643 |
| 2X150 | 1.8 | 1.3 | 2.5 | 42.9 | 0.124 | 0.206 | 5392 | 3459 |
| 2X185 | 2.0 | 1.4 | 2.7 | 48.0 | 0.0991 | 0.164 | 6590 | 5340 |
Technical Characteristics for CU or AL/PVC Insulated/Steel Wire Armored/PVC
Sheathed Power Cable, 3-CORES
| Nominalconductor crosssectionarea(mm) | Nominal Insulation thickness (mm) | NominalBeddingThickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃(Ω/km) | Approxweight ofcable(kg/km) | ||
| Cu | Al | Cu | Al | |||||
| 3X4 | 1.0 | 1.2 | 1.8 | 19.3 | 4.61 | 7.41 | 798 | 722 |
| 3X6 | 1.0 | 1.2 | 1.8 | 20.6 | 3.08 | 4.61 | 908 | 799 |
| 3X10 | 1.0 | 1.2 | 1.8 | 22.1 | 1.83 | 3.02 | 1183 | 965 |
| 3X16 | 1.0 | 1.2 | 1.9 | 26.3 | 1.15 | 1.91 | 1658 | 1349 |
| 3X25 | 1.2 | 1.2 | 1.9 | 30.2 | 0.727 | 1.20 | 2190 | 1701 |
| 3X35 | 1.2 | 1.2 | 2.0 | 32.7 | 0.524 | 0.868 | 2635 | 1957 |
| 3X50 | 1.4 | 1.2 | 2.1 | 33.3 | 0.387 | 0.641 | 3050 | 2083 |
| 3X70 | 1.4 | 1.2 | 2.2 | 35.6 | 0.268 | 0.443 | 3755 | 2401 |
| 3X95 | 1.6 | 1.2 | 2.3 | 41.5 | 0.193 | 0.320 | 5162 | 3324 |
| 3X120 | 1.6 | 1.3 | 2.4 | 45.1 | 0.153 | 0.253 | 6143 | 3822 |
| 3X150 | 1.8 | 1.4 | 2.6 | 51.6 | 0.124 | 0.206 | 8025 | 5124 |
| 3X185 | 2.0 | 1.4 | 2.8 | 55.6 | 0.0991 | 0.164 | 9428 | 5850 |
| 3X240 | 2.2 | 1.5 | 3.0 | 61.7 | 0.0754 | 0.125 | 11612 | 6971 |
| 3X300 | 2.4 | 1.7 | 3.2 | 65.8 | 0.0601 | 0.100 | 13781 | 7980 |
Technical Characteristics for CU or AL/PVC Insulated/Steel Wire Armored/PVC
Sheathed Power Cable,4-CORES
| Nominalconductor crosssectionarea(mm) | Nominal Insulation thickness (mm) | NominalBeddingThickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃(Ω/km) | Approxweight ofcable(kg/km) | ||
| Cu | Al | Cu | Al | |||||
| 4X4 | 1.0 | 1.2 | 1.8 | 20.1 | 4.61 | 7.41 | 874 | 773 |
| 4X6 | 1.0 | 1.2 | 1.8 | 21.7 | 3.08 | 4.61 | 1130 | 978 |
| 4x10 | 1.0 | 1.2 | 1.8 | 25.6 | 1.83 | 3.02 | 1515 | 1254 |
| 4x16 | 1.0 | 1.2 | 1.8 | 28.1 | 1.15 | 1.91 | 1924 | 1502 |
| 4x25 | 1.2 | 1.2 | 2.0 | 32.7 | 0.727 | 1.20 | 2570 | 1919 |
| 4x35 | 1.2 | 1.2 | 2.1 | 35.7 | 0.524 | 0.868 | 3130 | 2227 |
| 4x50 | 1.4 | 1.2 | 2.1 | 37.2 | 0.387 | 0.641 | 3795 | 2505 |
| 4x70 | 1.4 | 1.2 | 2.3 | 41.9 | 0.268 | 0.443 | 5147 | 3342 |
| 4x95 | 1.6 | 1.3 | 2.5 | 47.9 | 0.193 | 0.320 | 6586 | 4137 |
| 4x120 | 1.6 | 1.4 | 2.6 | 53.9 | 0.153 | 0.253 | 8514 | 5420 |
| 4x150 | 1.8 | 1.4 | 2.8 | 58.4 | 0.124 | 0.206 | 10116 | 6248 |
| 4x185 | 2.0 | 1.5 | 3.0 | 63.6 | 0.0991 | 0.164 | 12007 | 7237 |
| 4x240 | 2.2 | 1.7 | 3.2 | 65.7 | 0.0754 | 0.125 | 14460 | 8271 |
| 4x300 | 2.4 | 1.8 | 3.4 | 70.7 | 0.0601 | 0.100 | 17249 | 9515 |
