Round Portable Power Cable, CPE Jacket 8kV Standards
8.7/10kV metal/fiber braided screened,mining rubber insulated cabl
Round Portable Power Cable, CPE Jacket 8kV

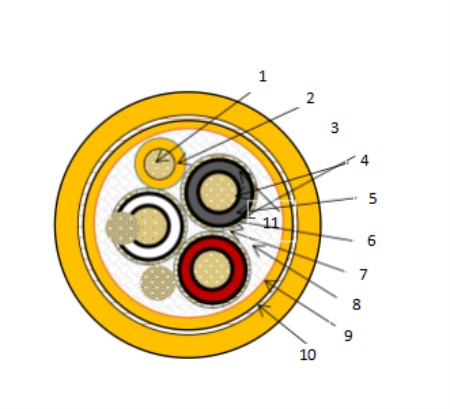

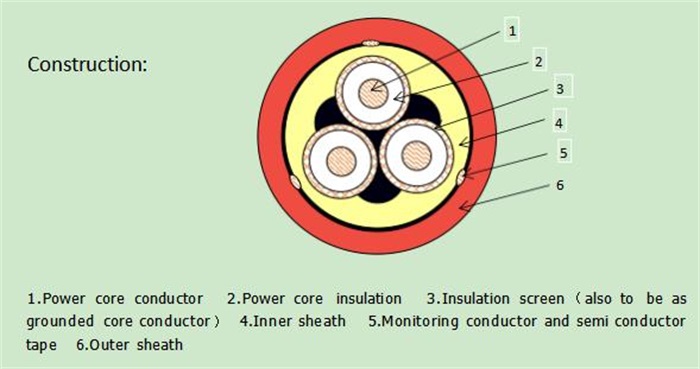

1.Ground check conductor
2.Ground check insulation
3.Power conductor
4.Conductor screen
5.Power core insulation
6.Power core insulation screen
7.Metal/fiber braided layer
8.Grounded conductor
9.Inner sheath
10.Metal/fiber braided layer enforced
11.Outer sheath
These heavy duty cables are designed for applications such as long wall shearers, continuous miners and portable equipment such as shovels, dredges and drills.
8.7/10kV metal/fiber braided screened,mining rubber insulated cable
| Cores no. x crosssection area（mm2） | Insulationthickness(mm) | Sheaththickness(mm) | Cable OD(mm) | Weight (km/kg) | Maxresistance20℃(Ω/km） | Currentcapacity at 25℃(A) | |
| min | max | ||||||
| 3×35+3×16/3+1×16 | 5.5 | 5.5 | 63.0 | 66.0 | 5860 | 0.565 | 135 |
| 3×50+3×25/3+1×25 | 5.5 | 5.5 | 66.0 | 69.0 | 6849 | 0.393 | 170 |
| 3×70+3×35/3+1×35 | 5.5 | 5.5 | 70.0 | 73.0 | 8200 | 0.277 | 205 |
| 3×95+3×50/3+1×50 | 5.5 | 5.5 | 75.0 | 78.0 | 10000 | 0.21 | 250 |
| 3×25+3×10 | 5.5 | 5.5 | 56.2 | 61.2 | 4260 | 0.795 | 110 |
| 3×35+3×10 | 5.5 | 5.5 | 59.2 | 64.2 | 4828 | 0.565 | 135 |
| 3×50+3×16 | 5.5 | 5.5 | 63.1 | 68.1 | 5680 | 0.393 | 170 |
| 3×70+3×16 | 5.5 | 5.5 | 69.5 | 74.5 | 7180 | 0.277 | 205 |
| 3×95+3×16 | 5.5 | 5.5 | 74.0 | 79.0 | 8340 | 0.21 | 250 |
SHD-GC-8kV(2AWG～4/0AWG)
| Construction | Number ofStrands | GroundingConductorSize | GroundCheckConductorSize | NominalInsulationThickness | NominalJacketThickness | NominalOverallDiameter | Nominal Weight | Ampacity | ||||
| No of Cores xAWG/kcmil | - | AWG/kcmil | AWG/kcmil | inch | mm | inch | mm | inch | mm | Ibs/kft | Kg/km | A |
| 3×4 | 259 | 8 | 8 | 0.150 | 3.8 | 0.205 | 5.2 | 1.94 | 49.3 | 2308 | 3594 | 122 |
| 3×2 | 259 | 6 | 8 | 0.150 | 3.8 | 0.220 | 5.6 | 2.12 | 53.8 | 2920 | 4554 | 159 |
| 3×1 | 329 | 5 | 8 | 0.150 | 3.8 | 0.220 | 5.6 | 2.21 | 56.1 | 3292 | 5104 | 184 |
| 3×1/0 | 259 | 4 | 8 | 0.150 | 3.8 | 0.220 | 5.6 | 2.32 | 58.9 | 3675 | 5700 | 211 |
| 3×2/0 | 329 | 3 | 8 | 0.150 | 3.8 | 0.235 | 6.0 | 2.46 | 62.5 | 4304 | 6593 | 243 |
| 3×3/0 | 413 | 2 | 8 | 0.150 | 3.8 | 0.250 | 6.4 | 2.62 | 66.5 | 5200 | 7738 | 279 |
| 3×4/0 | 532 | 1 | 8 | 0.150 | 3.8 | 0.250 | 6.4 | 2.75 | 69.8 | 5840 | 8713 | 321 |
| 3×250 | 608 | 1/0 | 6 | 0.150 | 3.8 | 0.250 | 6.4 | 2.89 | 73.4 | 6774 | 9948 | 355 |
| 3×300 | 741 | 1/0 | 6 | 0.150 | 3.8 | 0.265 | 6.7 | 3.04 | 77.2 | 7423 | 11384 | 398 |
| 3×350 | 888 | 2/0 | 6 | 0.150 | 3.8 | 0.280 | 7.1 | 3.21 | 81.3 | 8543 | 12739 | 435 |
| 3×500 | 1221 | 4/0 | 6 | 0.150 | 3.8 | 0.295 | 7.5 | 3.56 | 90.4 | 11260 | 16757 | 536 |
