switchgear

Description

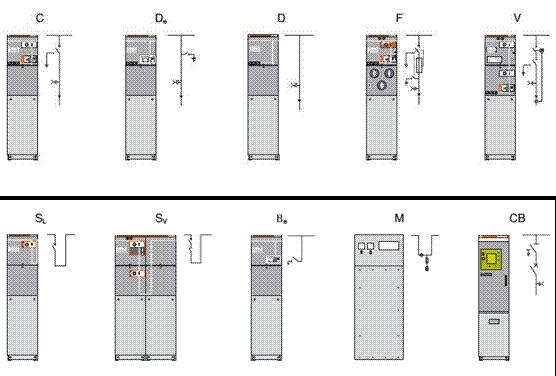

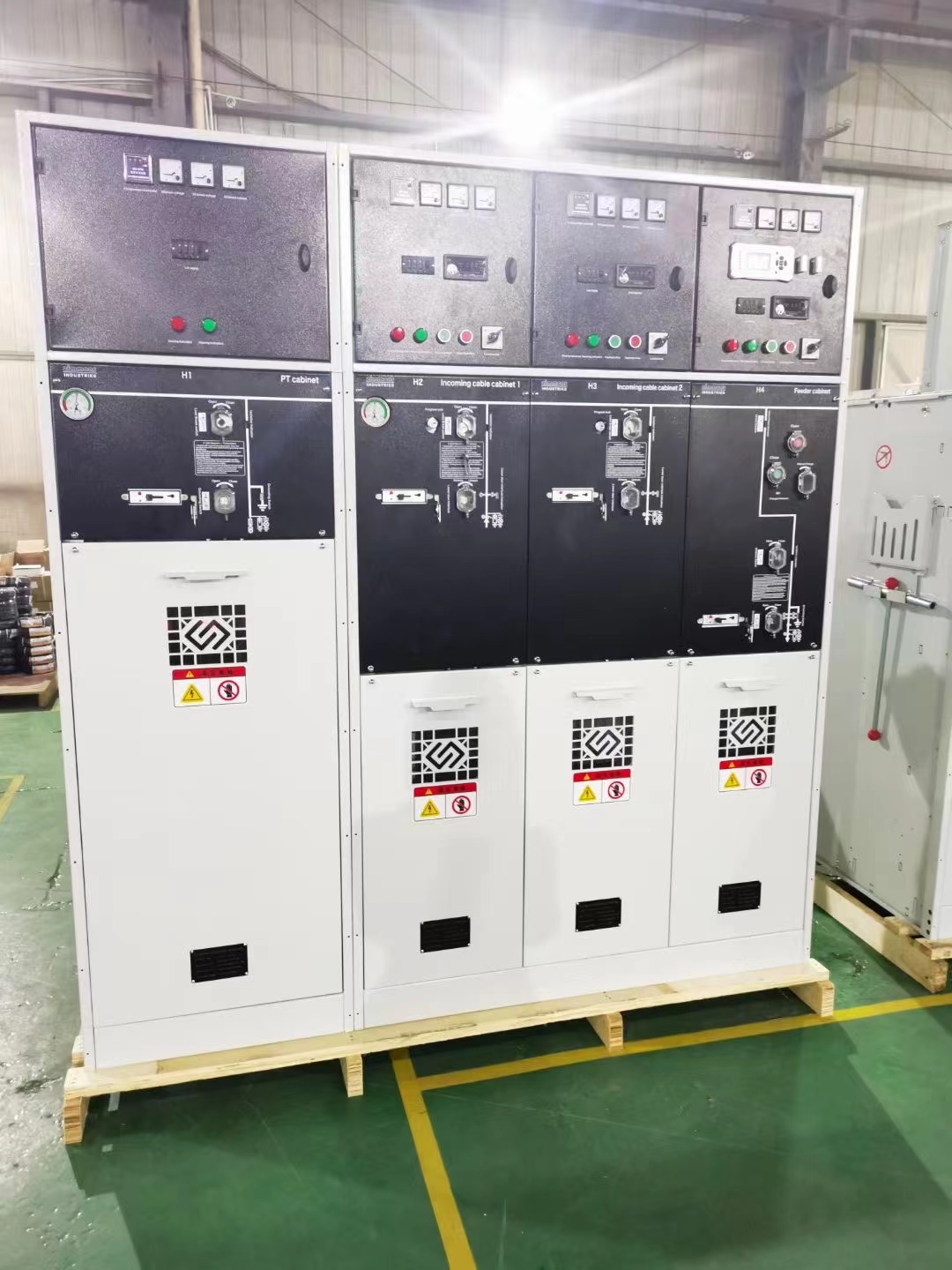

SF6 gas insulated switchgear ring main unit for the secondary distribution network. We can be supplied in 10 different configurations suitable for most switching applications in 12/24/36 kV distribution networks. It is have Non-extension and extension able modular compact switchgear, they represent a complete solution for 12/24/36 kV secondary distribution networks. FGRMU and FGRMU-plus have identical user interfaces. FGRMU is a completely sealed system with a stainless-steel tank containing all live parts and switching functions. A sealed steel tank with constant atmospheric conditions ensures a high level of reliability as well as personnel safety and a virtually maintenance-free system. The FGRMU concept offers a choice of either switch-fuse combination or circuit-breaker with relay for protection of the transformer. FGRMU can be supplied with an integrated RTU remote control and monitoring unit.

Service condition

a) Air temperature: Maximum temperature: +40℃; Minimum temperature:-20℃ b) Humidity: Monthly average humidity 95%; Daily average humidity 90% . c) Altitude above sea level: Maximum installation altitude: 2500m d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc. e) No frequent violent shake

technical parameter

Line voltage	Power line capac ity	Dimension			Total weigh
kV	kVA	Length(mmy	Width (mm	Height (mm)	kGs
10-1kV (~±20 Regulation range)	1000	1760	960	135	810
	2000	2050	1150	1350	1340
	3000	2200	1200	1400	1830
	4000	2350	1400	1450	2250
	5000	2455	1450	1490	2555
	6300	2485	1500	1490	3150
20~24kV (0%~±20% Regulation range)	1000	1910	1152	1450	920
	2000	220	1380	1500	1550
	3000	2350	1440	1550	2150
	4000	2500	1500	1600	2600
	5000	2605	1500	1640	2950
	6300	2635	1550	1640	3465
30~35kV (0%*±20% Regulation range)	1000	2060	1302	1070	1070
	2000	2350	1530	1770	1770
	3000	2500	1390	2415	2415
	4000	2650	1650	2970	2970
	5000	2755	1650	3375	3375
	6300	2785	1700	4160	4160
