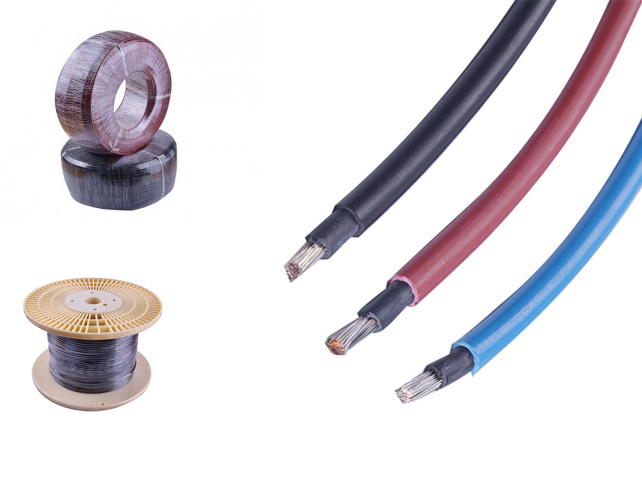

Double insulation,electron-beam cross-linked cables for photovoltaic power station.
Fire-resistance performance: IEC 60332-1
Smoke emission: IEC 61034;EN 50268-2
Low fire load: DIN 51900
Approvals: TUV 2PfG 1169/08.2007 PV1-F
Application standards: UNE 21123;UNE 20.460-5-52,UTE C 32-50
| Construction | ConductorConstruction | Conductor φ | Outer φ | ResistanceMax. | Current CarringCapacity |
| nxmm2 | n/m | mm | mm | Ω/Km | A |
| 1×1.5 | 30/0.25 | 1.58 | 4.90 | 13.30 | 30 |
| 1×2.5 | 50/0.25 | 2.02 | 5.45 | 7.98 | 41 |
| 1×4.0 | 56/0.30 | 2.30 | 6.10 | 4.75 | 55 |
| 1×6.0 | 84/0.30 | 3.42 | 7.20 | 3.39 | 70 |
| 1×10.0 | 142/0.30 | 4.56 | 9.00 | 1.95 | 98 |
| 1×16.0 | 228/0.30 | 5.60 | 10.20 | 1.24 | 132 |
| 1×25.0 | 361/0.30 | 6.95 | 12.00 | 0.795 | 176 |
| 1×35.0 | 525/0.30 | 8.74 | 13.80 | 0.565 | 218 |
| 1×50.0 | 720/0.30 | 9.20 | 14.80 | 0.393 | 280 |
| 1×70.0 | 988/0.30 | 11.00 | 16.90 | 0.277 | 350 |
| 1×95.0 | 1349/0.30 | 12.50 | 18.70 | 0.21 | 410 |
| 1×120.0 | 169110.30 | 14.20 | 20.70 | 0.164 | 480 |
