Internal wiring or electronic equipments, widly used in Air conditioners, microwave ovens, electronic sterilizers, electric rice burgers, electronic hot water bottles, electric.
Marking: E529032 9M AWM 1617 18AWG 105 300V PVC wire FT2
conducor: copper or tin copper wire, complying with UL758 , ASTM B3 DIN VDE0295 IEC 60228
Insulation:PVC HEPE

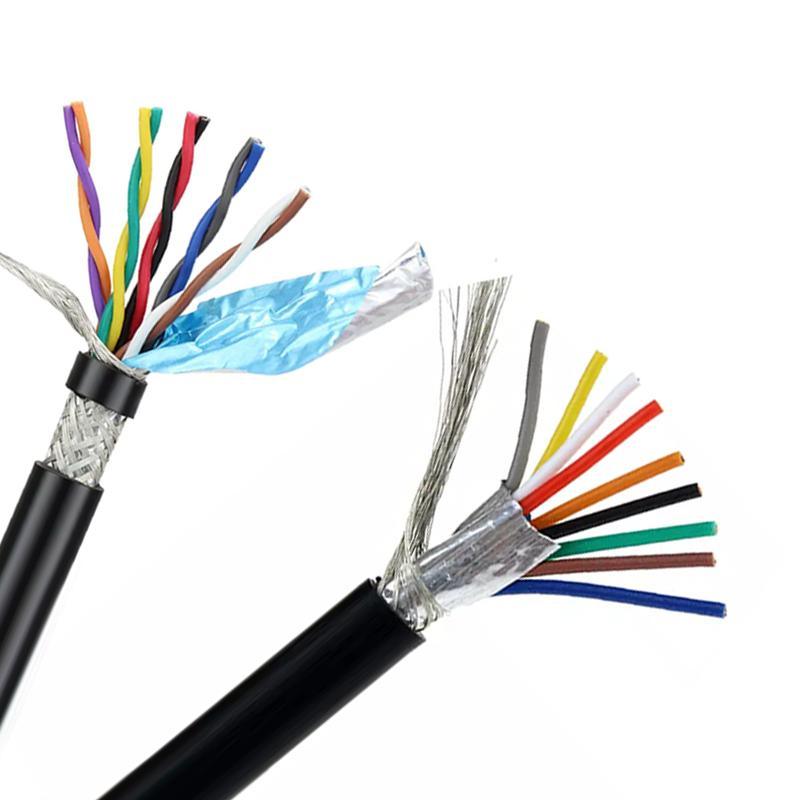

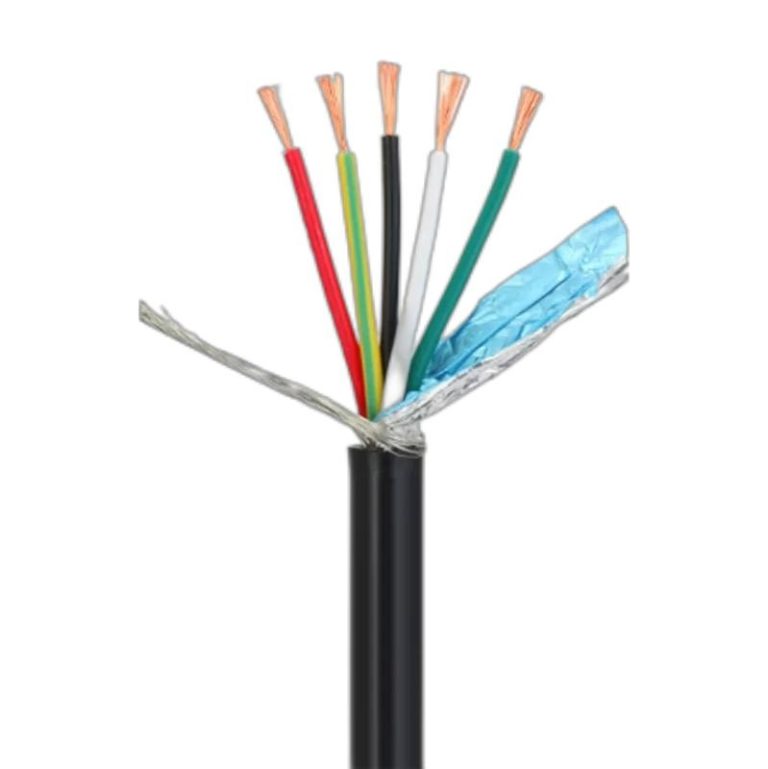

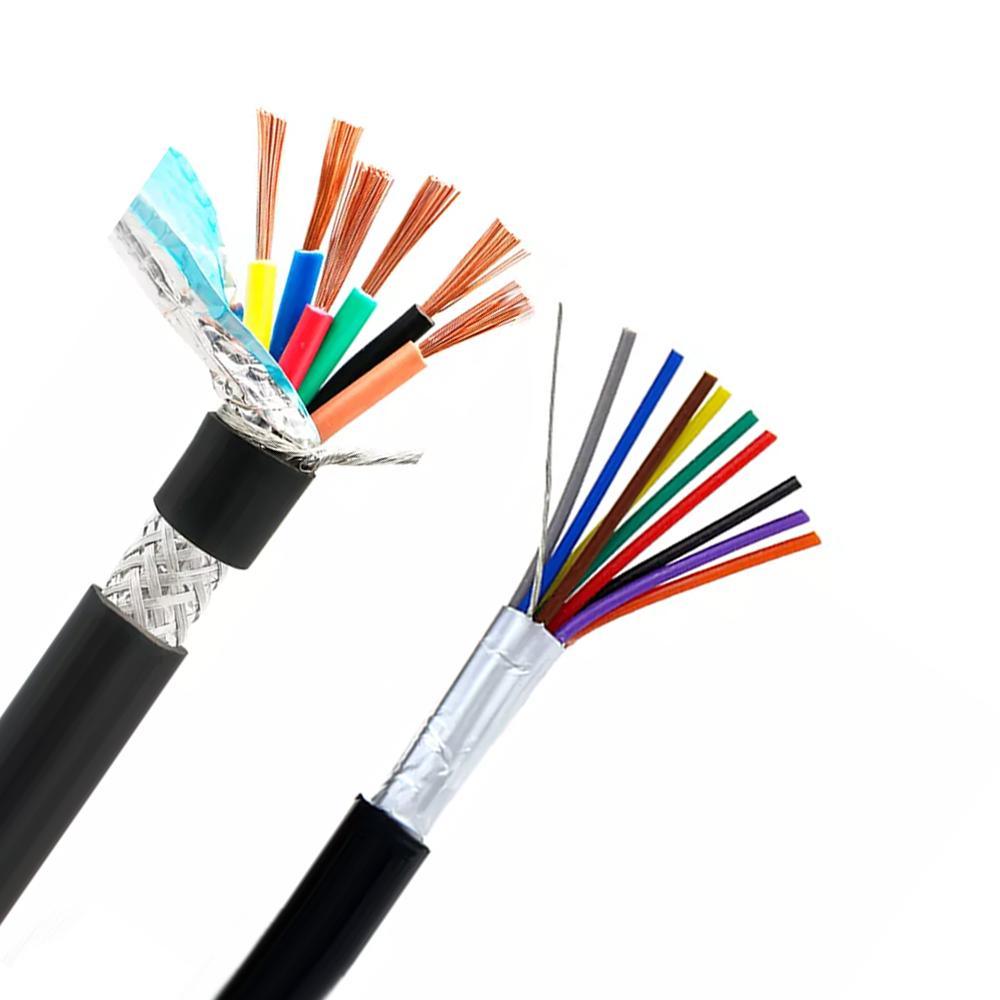

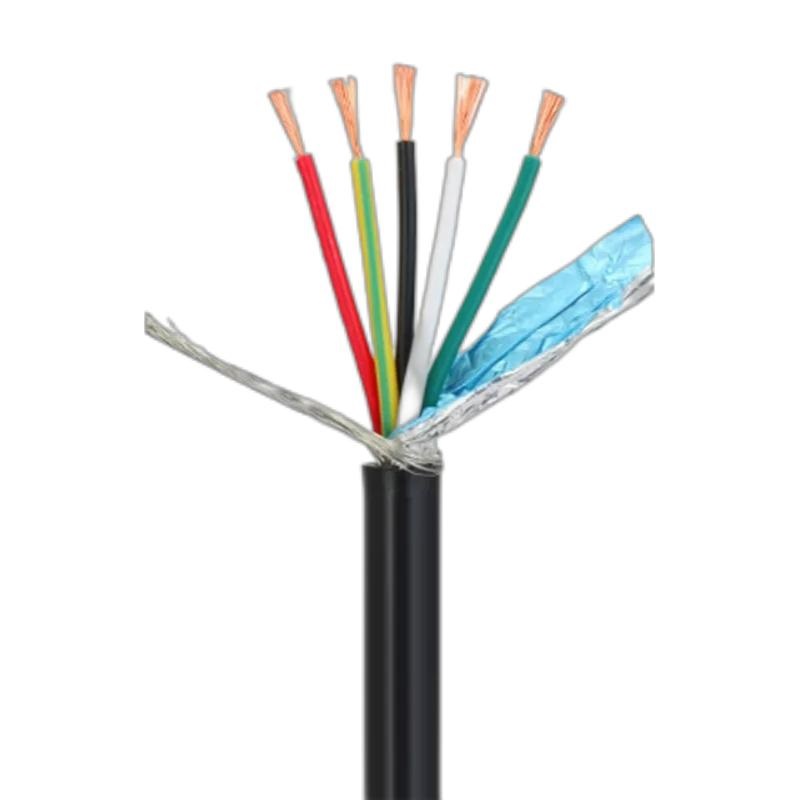

shield: aluminum foil tape 100%, wire braided 85%
Insulation Identification: below 20AWG, with cores number below 5 cores inculding 5 cores, colors, above 5 cores marked with numbers
sheath:PVC-Black or grey
voltage:300v
| No. of cores | conductor | PVC Insulation | PVC jacket | standard packing m | |||
| wire size AWG | standing #/mm | average thickness mm | diameter mm | average thickness mm | diameter mm | ||
| 3 | 22 | 7/0.25 | 0.48 | 1.35 | 0.76 | 4.80 | 305/1000ft |
| 4 | 24 | 7/0.20 | 0.61 | 1.50 | 0.76 | 4.95 | 305/1000ft |
| 5 | 26 | 7/0.16 | 0.76 | 1.65 | 0.76 | 5.25 | 305/1000ft |
| 6 | 28 | 7/0.127 | 0.95 | 1.85 | 0.76 | 5.70 | 305/1000ft |
| 7 | 18 | 34/0.18 | 1.21 | 2.10 | 0.76 | 6.25 | 305/1000ft |
| 8 | 26 | 7/0.16 | 0.48 | 1.35 | 0.76 | 4.95 | 305/1000ft |
| 9 | 24 | 11/0.16 | 0.61 | 1.50 | 0.76 | 5.30 | 305/1000ft |
| 10 | 22 | 17/0.16 | 0.76 | 1.65 | 0.76 | 5.70 | 305/1000ft |
| 15 | 20 | 21/0.18 | 0.95 | 1.85 | 0.76 | 6.15 | 305/1000ft |
| 20 | 18 | 34/0.18 | 1.21 | 2.10 | 0.76 | 6.75 | 305/1000ft |
