Internal wiring or electronic equipments, widly used in Air conditioners, microwave ovens, electronic sterilizers, electric rice burgers, electronic hot water bottles, electric.
Marking: E529032 9M AWM 3530 18AWG 200C 600Vsilicone rubber wire FT2
| wire size mm2 | conductor(No./mm) | insulation(mm) | OD mm | Conductor resistance20℃≤Ω/km |
| 0.014 | 7/0.05 | 0.15 | 0.45 | 1343 |
| 0.035 | 7/0.08 | 0.15 | 0.6 | 525 |
| 0.05 | 1/0.26(7/0.10) | 0.15 | 0.6 | 330 |
| 0.07 | 1/0.30 | 0.2 | 0.7 | 245 |
| 0.08 | 7/0.12 | 0.2 | 0.78 | 227 |
| 0.12 | 7/0.15 | 0.2 | 0.85 | 128 |
| 0.2 | 7/0.20 | 0.25 | 1.1 | 90.4 |
| 0.35 | 19/0.16 | 0.25 | 1.3 | 49.5 |
| 0.5 | 19/0.18 | 0.25 | 1.4 | 30.1 |
| 0.75 | 19/0.23 | 0.25 | 1.7 | 22.7 |
| 1 | 19/0.26 | 0.25 | 1.8 | 17.8 |
| 1.2 | 19/0.28 | 0.3 | 2 | 15.3 |
| 1.5 | 19/0.32 | 0.3 | 2.2 | 11.7 |
| 2 | 19/0.37 | 0.3 | 2.45 | 8.78 |
| 2.5 | 19/0.41 | 0.4 | 2.95 | 6.86 |
| 4 | 37/0.37 | 0.4 | 3.4 | 4.51 |
| 6 | 37/0.45 | 0.5 | 4.2 | 2.99 |

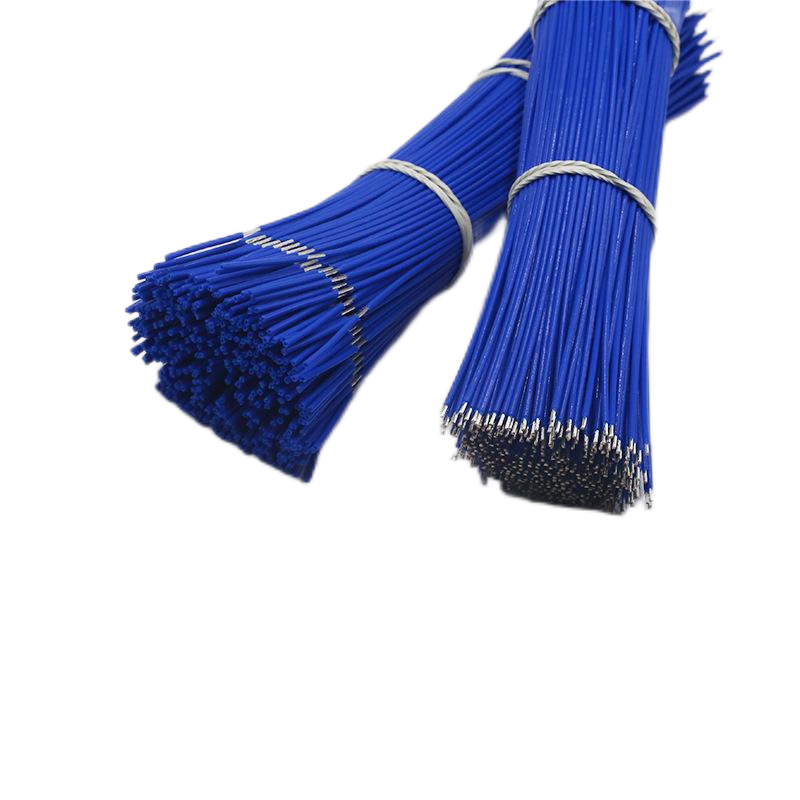

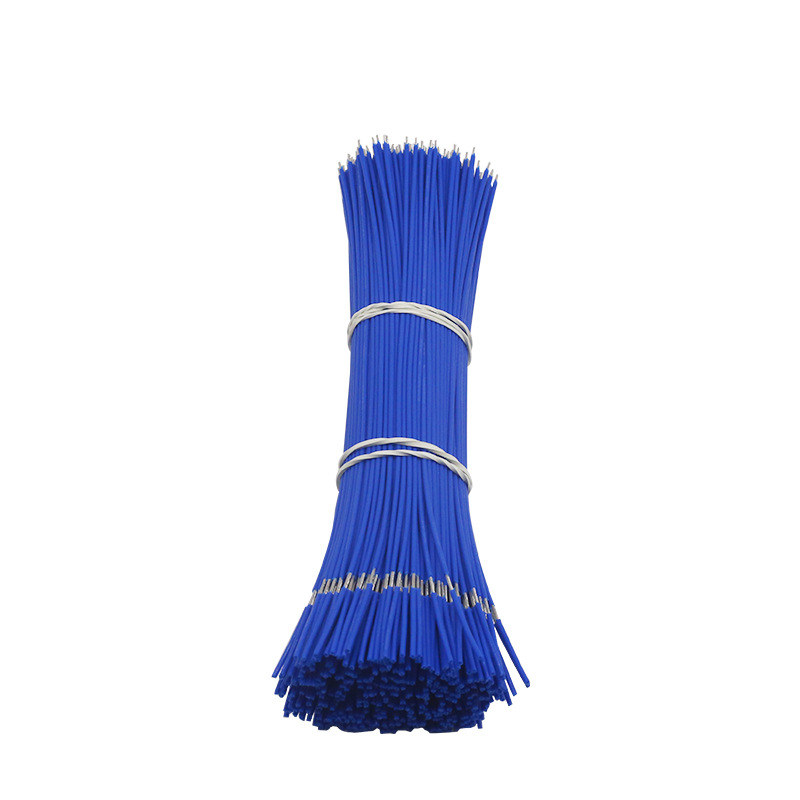

silicone rubber wire can be cut with customer required length, and assemblied with different terminals and plugs.
free sample for quality checking if any interesting items
silicone wire MOQ: 1000 m
silicone rubber wire harness we have produced for ignition industry, value industry, auto industry, good working experience
so any wire harness or assy wire required, welcome to contact Chanelectric
