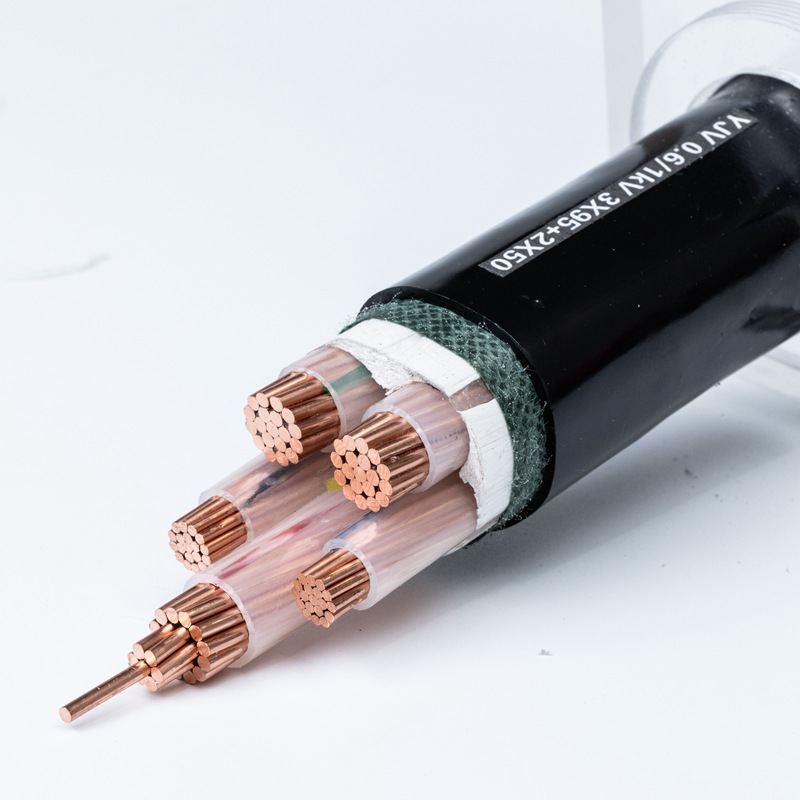

flame retardant XAV 0.6-1KV Power cable

  • Bending Radius:20( d+D) +/-5% for single core cable,15( d+D )+/-5% for multi-core cable.
  • D=Actual outer diameter of cable (mm),d=Actual diameter of the conductor (mm)
  • Packing:Steel/wooden reel,wooden reel or steel reel.

Application

XAV power cable is suitable for direct burial distribution system at the voltage from LV to MV. power cables has character of flame retardant as type ZR. it could be used without additional protection or for installation on cable trays or in ducts.

Standard

 NF C 32-322

The requirements for flame retardant property is according to IEC60332-3 and GB18380.

parameter of XAV cable

DescriptionApplication
Cu or Al conductor/ XLPE insulated/ PVC sheathed power cablepower cable installed in indoor or outdoor,and can be pulled with a proper force during installation ,but unable to bear external mechanical  force.Single  core  cable  is not  permitted  to  install  in  magnetic duct.
Cu or Al conductor/ XLPE insulated/ PVC sheathed flame retardant power cable

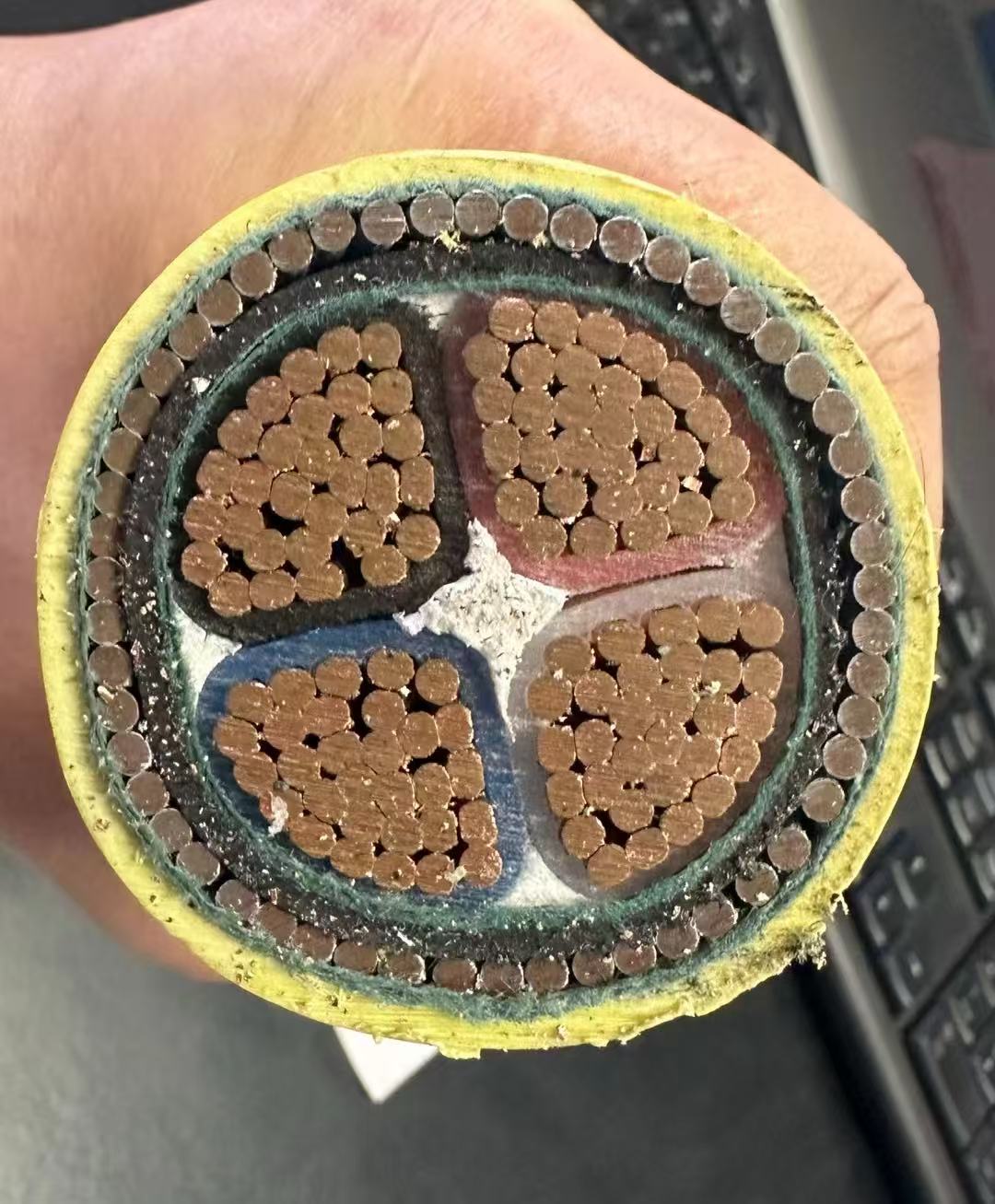

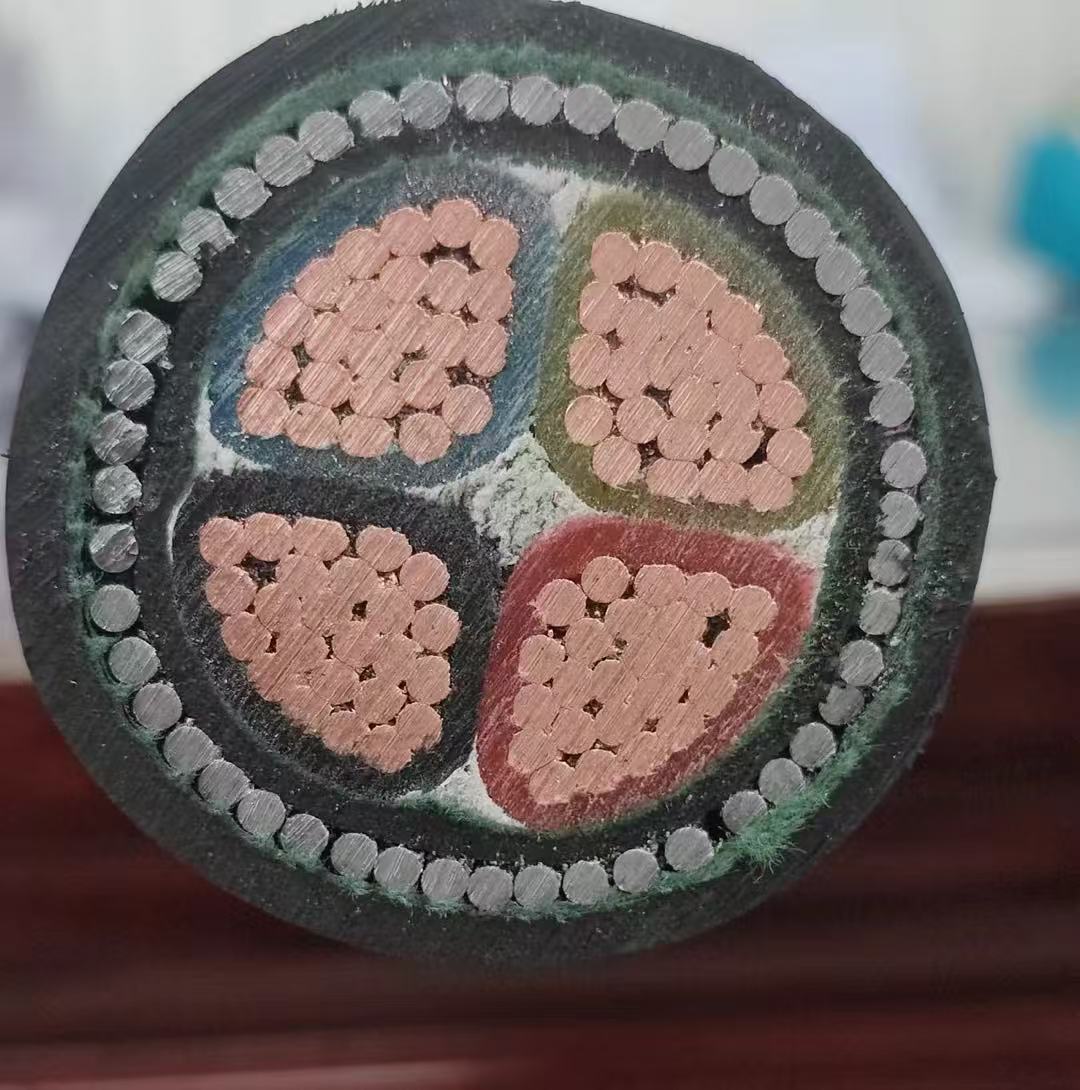

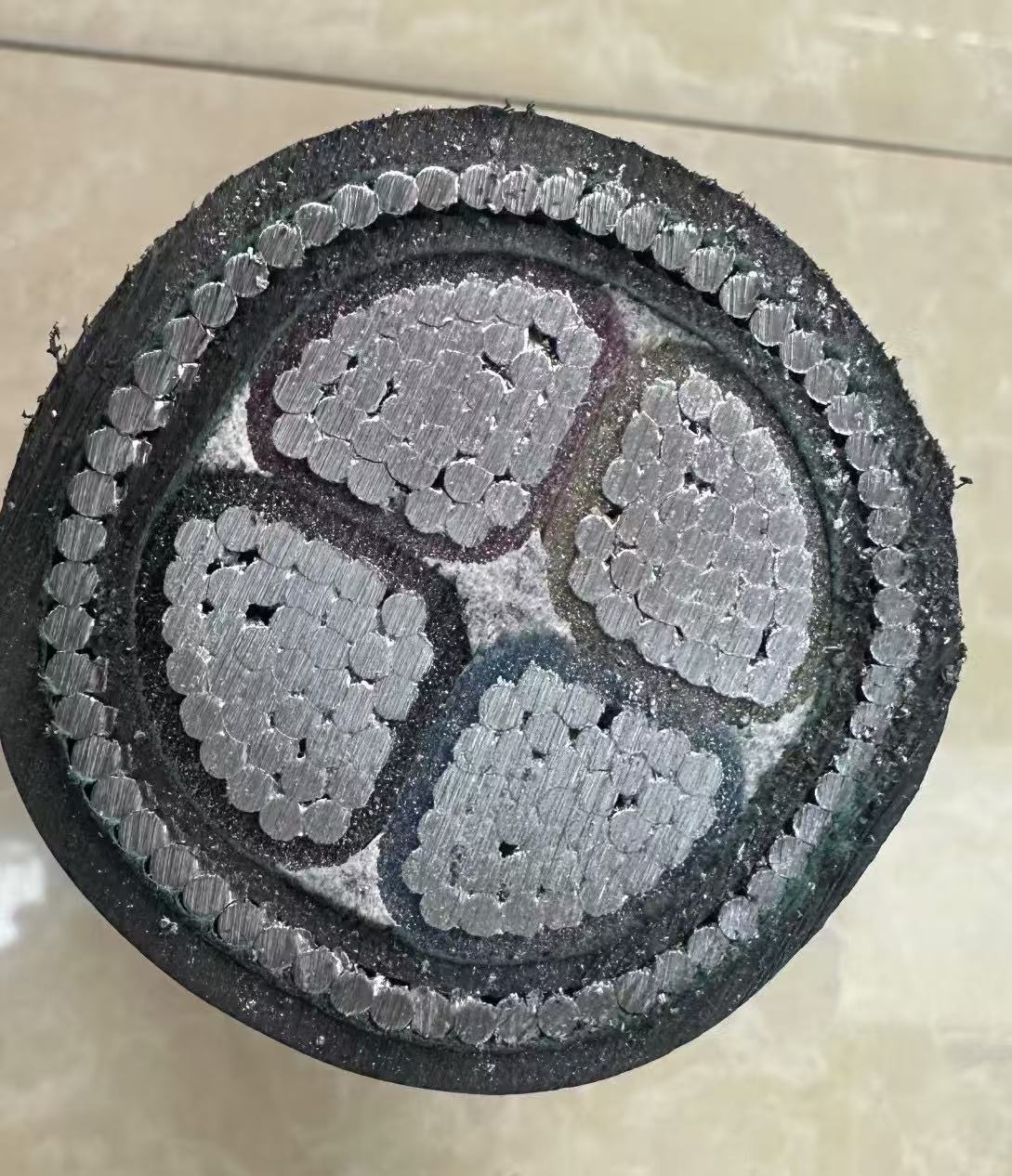

Cu  or  Al  conductor/  XLPE  insulated/  steel  tape armored/ PVC sheathed power cableXAV cable installed under ground and able to bear   external   mechanical   force,but unable to bear large pulling force.
Cu  or  Al  conductor/  XLPE  insulated  steel  tape armored/ PVC sheathed flame retardant power cable
Cu  or  Al  conductor/  XLPE   insulated/  steel  wire armored/ PVC sheathed power cablepower cable installed under water or where the cable route is with large difference of level.It   is   able   to    bear   external mechanical  force  and  proper  pulling force.
Cu  or  Al  conductor/  XLPE   insulated/  steel  wire armored/ PVC sheathed flame retardant power cable
No. of coresnominal conductor size mm2cable OD mmcable weight kg/km
2 cores1.513215
2 cores2.514249
2 cores4.015.5309
2 cores6.016.5386
2 cores1018.5515
2 cores1620.5709
2 cores2523.51063
3 cores2.514.5274
3 cores4.016.0352
3 cores6.017.5447
3 cores10.019.0624
3 cores16.022.0849
3 cores25.025.01273
3 cores35.032.52107
3p+1 N cores3*25+1*1625.81110
3p+1 N cores3*50+1*2531.02100
3p+1 N cores3*70+1*3529.32875

More specification about XAV 0.6-1KV power cable,welcome to contact Chanelectric, a very good price you will have from us, thank you.
