Installation Temperature : The installation temperature should be over 0℃ . If the ambient temperature is lower than 0℃,the cable should be preheated.
Operating Temperature : Max permissible continuous operating temperature of conductor shall not exceed 90℃ .
Conductor Short-circuit Temperature : Max temperature at short-circuit shall not exceed 250℃ . The short-circuit duration shall not exceed 5 seconds.
This product is suitable for transmission and distribution system at the voltage from LV to MV. The power cables can be flame retardant when used as type ZR.
IEC60502, GB/T12706 or other standard required by customer.
The requirements for flame retardant property is according to IEC60332-3 and GB18380.
Description and Application of Cable
| Description | Application |

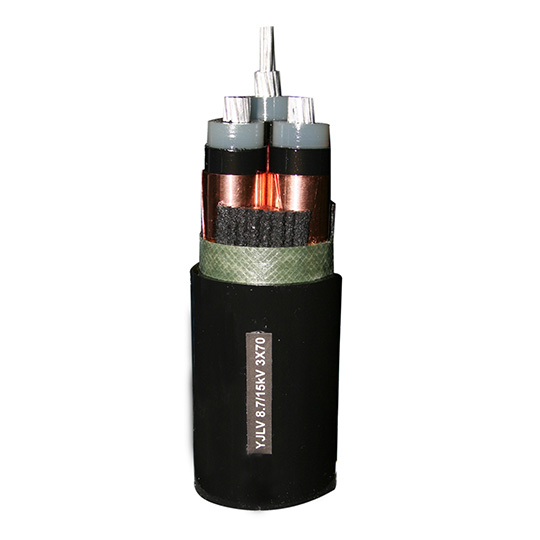

| Cu or Al conductor/ XLPE insulated/ PVC sheathed power cable | It is installed in indoor or outdoor,and can be pulled with a proper force during installation ,but unable to bear external mechanical force.Single core cable is not permitted to install in magnetic duct. |
| Cu or Al conductor/ XLPE insulated/ PVC sheathed flame retardant power cable | |

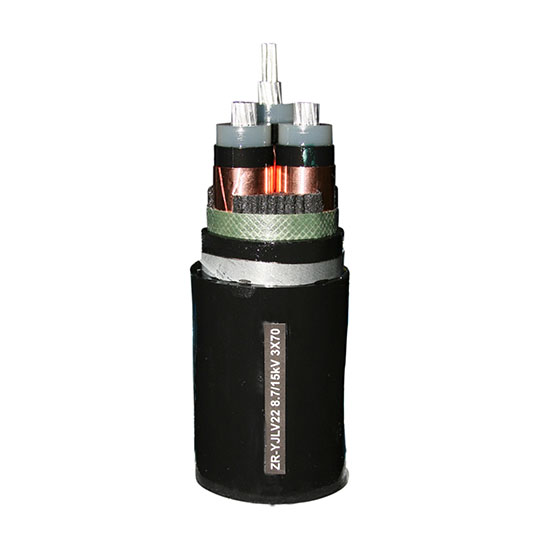

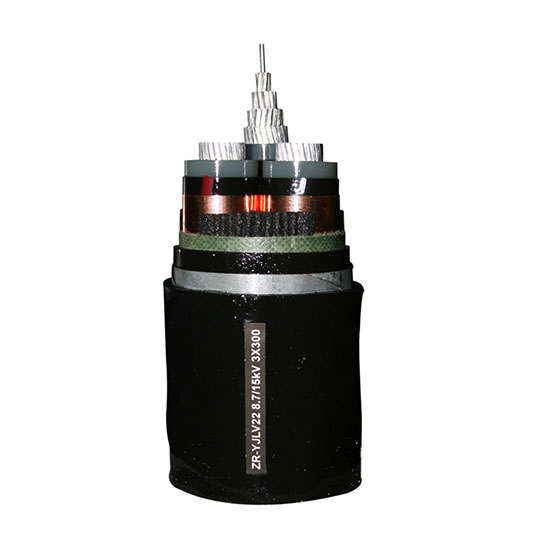

| Cu or Al conductor/ XLPE insulated/ steel tape armored/ PVC sheathed power cable | It is installed under ground and able to bear external mechanical force,but unable to bear large pulling force. |
| Cu or Al conductor/ XLPE insulated steel tape armored/ PVC sheathed flame retardant power cable | |
| Cu or Al conductor/ XLPE insulated/ steel wire armored/ PVC sheathed power cable | It is installed under water or where the cable route is with large difference of level.It is able to bear external mechanical force and proper pulling force. |
| Cu or Al conductor/ XLPE insulated/ steel wire armored/ PVC sheathed flame retardant power cable |
Supply Range
| Type | No ofCores | Rated Voltage (kV) | ||||||
| 0.6/1 | 3.6/6 | 6/66/10 | 8.7/10 8.7/15 | 12/20 | 21/35 | 26/3526/45 | ||
| Nominal Area of Conductor (sq.mm) | ||||||||
| CU orAL/XLPE/PVC | 1 | 1.5 to240 | 25 to500 | 25 to500 | 25 to500 | 35 to 500 | 50 to500 | 50 to500 |
| 3 | 1.5 to240 | 25 to300 | 25 to300 | 25 to300 | 35 to 300 | --- | --- | |
| CU orAL/XLPE/STA/PVC | 3 | 10 to240 | 25 to300 | 25 to300 | 25 to300 | 35 to 300 | --- | --- |
| CU orAL/XLPE/SWA/PVC | 3 | 10 to240 | 25 to300 | 25 to300 | 25 to300 | 35 to 300 | --- | --- |
IEC of 3.6/6kV for CU or AL conductor/XLPE Insulated
/PVC Sheathed Power Cable, 1-core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 1x25 | 2.5 | 1.5 | 19 | 0.727 | 1.20 | 576 | 421 |
| 1x35 | 2.5 | 1.5 | 20 | 0.524 | 0.868 | 695 | 479 |
| 1x50 | 2.5 | 2.0 | 21 | 0.387 | 0.641 | 860 | 550 |
| 1x70 | 2.5 | 2.0 | 23 | 0.268 | 0.443 | 1081 | 648 |
| 1x95 | 2.5 | 2.0 | 24 | 0.193 | 0.320 | 1350 | 762 |
| 1x120 | 2.5 | 2.0 | 26 | 0.153 | 0.253 | 1640 | 897 |
| 1x150 | 2.5 | 2.0 | 27 | 0.124 | 0.206 | 1947 | 1079 |
| 1x185 | 2.5 | 2.0 | 29 | 0.0991 | 0.164 | 2302 | 1156 |
| 1x240 | 2.6 | 2.0 | 32 | 0.0754 | 0.125 | 2886 | 1400 |
| 1x300 | 2.8 | 2.0 | 34 | 0.0601 | 0.100 | 3483 | 1626 |
| 1x400 | 3.0 | 2.5 | 38 | 0.047 | 0.0778 | 4477 | 2001 |
| 1x500 | 3.2 | 2.5 | 41 | 0.0366 | 0.0605 | 5452 | 2357 |
Technical Characteristics of 6/6kV,6/10kV for CU or AL conductor/XLPE Insulated /PVC Sheathed Power Cable, 1-core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 1x25 | 3.4 | 2.0 | 20 | 0.727 | 1.20 | 598 | 443 |
| 1x35 | 3.4 | 2.0 | 22 | 0.524 | 0.868 | 719 | 502 |
| 1x50 | 3.4 | 2.0 | 23 | 0.387 | 0.641 | 884 | 575 |
| 1x70 | 3.4 | 2.0 | 24 | 0.268 | 0.443 | 1097 | 664 |
| 1x95 | 3.4 | 2.0 | 26 | 0.193 | 0.320 | 1378 | 790 |
| 1x120 | 3.4 | 2.0 | 28 | 0.153 | 0.253 | 1658 | 916 |
| 1x150 | 3.4 | 2.0 | 30 | 0.124 | 0.206 | 1967 | 1038 |
| 1x185 | 3.4 | 2.0 | 31 | 0.0991 | 0.164 | 2335 | 1190 |
| 1x240 | 3.4 | 2.0 | 34 | 0.0754 | 0.125 | 2908 | 1423 |
| 1x300 | 3.4 | 2.0 | 36 | 0.0601 | 0.100 | 3507 | 1650 |
| 1x400 | 3.4 | 2.5 | 39 | 0.0470 | 0.0778 | 4503 | 2027 |
| 1x500 | 3.4 | 2.5 | 42 | 0.0366 | 0.0605 | 5479 | 2384 |
Technical Characteristics of 8.7/10kV,8.7/15kV for CU or AL conductor/XLPE
Insulated /PVC Sheathed Power Cable, 1-core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 1x25 | 4.5 | 1.8 | 23 | 0.727 | 1.20 | 680 | 525 |
| 1x35 | 4.5 | 1.8 | 24 | 0.524 | 0.868 | 804 | 587 |
| 1x50 | 4.5 | 1.9 | 25 | 0.387 | 0.641 | 984 | 674 |
| 1x70 | 4.5 | 1.9 | 27 | 0.268 | 0.443 | 1201 | 768 |
| 1x95 | 4.5 | 2.0 | 29 | 0.193 | 0.320 | 1490 | 902 |
| 1x120 | 4.5 | 2.0 | 30 | 0.153 | 0.253 | 1765 | 1022 |
| 1x150 | 4.5 | 2.1 | 32 | 0.124 | 0.206 | 2091 | 1162 |
| 1x185 | 4.5 | 2.1 | 34 | 0.0991 | 0.164 | 2452 | 1307 |
| 1x240 | 4.5 | 2.2 | 36 | 0.0754 | 0.125 | 3034 | 1548 |
| 1x300 | 4.5 | 2.4 | 39 | 0.0601 | 0.100 | 3672 | 1815 |
| 1x400 | 4.5 | 2.4 | 42 | 0.047 | 0.0778 | 4646 | 2170 |
| 1x500 | 4.5 | 2.5 | 45 | 0.0366 | 0.0605 | 5651 | 2556 |
Technical Characteristics of 12/20kVfor CU or AL conductor/XLPE Insulated
PVC Sheathed Power Cable, 1-core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 1x35 | 5.5 | 2.0 | 27 | 0.524 | 0.868 | 979 | 762 |
| 1x50 | 5.5 | 2.0 | 29 | 0.387 | 0.641 | 1155 | 846 |
| 1x70 | 5.5 | 2.0 | 30 | 0.268 | 0.443 | 1393 | 959 |
| 1x95 | 5.5 | 2.0 | 32 | 0.193 | 0.320 | 1681 | 1093 |
| 1x120 | 5.5 | 2.0 | 34 | 0.153 | 0.253 | 1979 | 1236 |
| 1x150 | 5.5 | 2.0 | 35 | 0.124 | 0.206 | 2301 | 1373 |
| 1x185 | 5.5 | 2.0 | 38 | 0.0991 | 0.164 | 2718 | 1573 |
| 1x240 | 5.5 | 2.5 | 40 | 0.0754 | 0.125 | 3302 | 1817 |
| 1x300 | 5.5 | 2.5 | 43 | 0.0601 | 0.100 | 3941 | 2084 |
| 1x400 | 5.5 | 2.5 | 45 | 0.0470 | 0.0778 | 4931 | 2455 |
| 1x500 | 5.5 | 2.5 | 48 | 0.0366 | 0.0605 | 5956 | 2861 |
Technical Characteristics of 21/35kVfor CU or AL conductor/XLPE Insulated
/PVC Sheathed Power Cable, 1-core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 1x50 | 9.3 | 2.0 | 37 | 0.387 | 0.641 | 1609 | 1360 |
| 1x70 | 9.3 | 2.5 | 38 | 0.268 | 0.443 | 1850 | 1417 |
| 1x95 | 9.3 | 2.5 | 40 | 0.193 | 0.320 | 2193 | 1605 |
| 1x120 | 9.3 | 2.5 | 42 | 0.153 | 0.253 | 2498 | 1756 |
| 1x150 | 9.3 | 2.5 | 44 | 0.124 | 0.206 | 2839 | 1910 |
| 1x185 | 9.3 | 2.5 | 45 | 0.0991 | 0.164 | 3248 | 2102 |
| 1x240 | 9.3 | 2.5 | 48 | 0.0754 | 0.125 | 3881 | 2395 |
| 1x300 | 9.3 | 3.0 | 50 | 0.0601 | 0.100 | 4529 | 2672 |
| 1x400 | 9.3 | 3.0 | 53 | 0.0470 | 0.0778 | 5570 | 3094 |
| 1x500 | 9.3 | 3.0 | 55 | 0.0366 | 0.0605 | 6690 | 3595 |
Technical Characteristics of 26/35kV,26/35kV for CU or AL conductor/XLPE
Insulated PVC Sheathed Power Cable, 1-core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 1x50 | 10.5 | 2.2 | 39 | 0.387 | 0.641 | 1758 | 1449 |
| 1x70 | 10.5 | 2.4 | 41 | 0.268 | 0.443 | 2035 | 1604 |
| 1x95 | 10.5 | 2.4 | 43 | 0.193 | 0.320 | 2355 | 1767 |
| 1x120 | 10.5 | 2.4 | 44 | 0.153 | 0.253 | 2666 | 1923 |
| 1x150 | 10.5 | 2.5 | 46 | 0.124 | 0.206 | 3031 | 2103 |
| 1x185 | 10.5 | 2.5 | 48 | 0.0991 | 0.164 | 3427 | 2282 |
| 1x240 | 10.5 | 2.6 | 50 | 0.0754 | 0.125 | 4070 | 2584 |
| 1x300 | 10.5 | 2.7 | 53 | 0.0601 | 0.100 | 4748 | 2891 |
| 1x400 | 10.5 | 2.8 | 56 | 0.0470 | 0.0778 | 5801 | 3325 |
| 1x500 | 10.5 | 2.9 | 59 | 0.0366 | 0.0605 | 6623 | 4076 |
Technical Characteristics of 3.6/6kV for CU or AL conductor/XLPE Insulated
/PVC Sheathed Power Cable, 3-core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 3x25 | 2.5 | 2.5 | 40 | 0.727 | 1.20 | 576 | 421 |
| 3x35 | 2.5 | 2.5 | 43 | 0.524 | 0.868 | 695 | 479 |
| 3x50 | 2.5 | 2.5 | 46 | 0.387 | 0.641 | 850 | 550 |
| 3x70 | 2.5 | 2.5 | 49 | 0.268 | 0.443 | 1081 | 648 |
| 3x95 | 2.5 | 3.0 | 53 | 0.193 | 0.320 | 1350 | 762 |
| 3x120 | 2.5 | 3.0 | 57 | 0.153 | 0.253 | 1640 | 897 |
| 3x150 | 2.5 | 3.0 | 61 | 0.124 | 0.206 | 1947 | 1019 |
| 3x185 | 2.5 | 3.0 | 63 | 0.0991 | 0.164 | 2302 | 1152 |
| 3x240 | 2.6 | 3.5 | 70 | 0.0754 | 0.125 | 2886 | 1400 |
| 3x300 | 2.8 | 3.5 | 75 | 0.0601 | 0.100 | 3351 | 1626 |
Technical Characteristics of 6/6kV,6/10kV for CU or AL conductor/XLPE
Insulated PVC Sheathed Power Cable, 3-core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 3x25 | 3.4 | 2.5 | 42 | 0.727 | 1.20 | 1895 | 1430 |
| 3x35 | 3.4 | 2.5 | 44 | 0.524 | 0.868 | 2293 | 1640 |
| 3x50 | 3.4 | 2.5 | 46 | 0.387 | 0.641 | 2812 | 1881 |
| 3x70 | 3.4 | 3.0 | 50 | 0.268 | 0.443 | 3508 | 2205 |
| 3x95 | 3.4 | 3.0 | 54 | 0.193 | 0.320 | 4402 | 2635 |
| 3x120 | 3.4 | 3.0 | 58 | 0.153 | 0.253 | 5319 | 3087 |
| 3x150 | 3.4 | 3.0 | 62 | 0.124 | 0.206 | 6309 | 3518 |
| 3x185 | 3.4 | 3.0 | 65 | 0.0991 | 0.164 | 7319 | 3877 |
| 3x240 | 3.4 | 3.5 | 71 | 0.0754 | 0.125 | 9218 | 4753 |
| 3x300 | 3.4 | 3.5 | 75 | 0.0601 | 0.100 | 11159 | 5577 |
Technical Characteristics of 8.7/10kV,8.7/15kV for CU or AL conductor/XLPE
Insulated /PVC Sheathed Power Cable, 3-core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 3x25 | 4.5 | 2.8 | 50 | 0.727 | 1.20 | 2537 | 2072 |
| 3x35 | 4.5 | 2.9 | 53 | 0.524 | 0.868 | 2985 | 2334 |
| 3x50 | 4.5 | 2.9 | 55 | 0.387 | 0.641 | 3529 | 2598 |
| 3x70 | 4.5 | 2.9 | 58 | 0.268 | 0.443 | 4197 | 2895 |
| 3x95 | 4.5 | 3.3 | 63 | 0.193 | 0.320 | 5230 | 3462 |
| 3x120 | 4.5 | 3.6 | 66 | 0.153 | 0.253 | 6120 | 3888 |
| 3x150 | 4.5 | 3.6 | 70 | 0.124 | 0.206 | 7207 | 4416 |
| 3x185 | 4.5 | 3.6 | 74 | 0.0991 | 0.164 | 8378 | 4935 |
| 3x240 | 4.5 | 3.6 | 79 | 0.0754 | 0.125 | 10177 | 5712 |
| 3x300 | 4.5 | 3.8 | 84 | 0.0601 | 0.100 | 12159 | 6577 |
Technical Characteristics of 12/20kV for CU or AL conductor/XLPE Insulated /PVC Sheathed Power Cable, 3-core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight ofcable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 3x35 | 5.5 | 3.0 | 57 | 0.524 | 0.868 | 3348 | 2696 |
| 3x50 | 5.5 | 3.0 | 60 | 0.387 | 0.641 | 3904 | 2973 |
| 3x70 | 5.5 | 3.0 | 63 | 0.268 | 0.443 | 4623 | 3321 |
| 3x95 | 5.5 | 3.5 | 67 | 0.193 | 0.320 | 5593 | 3825 |
| 3x120 | 5.5 | 3.5 | 71 | 0.153 | 0.253 | 6495 | 4262 |
| 3x150 | 5.5 | 3.5 | 74 | 0.124 | 0.206 | 7637 | 4846 |
| 3x185 | 5.5 | 3.5 | 78 | 0.0991 | 0.164 | 8803 | 5361 |
| 3x240 | 5.5 | 3.5 | 84 | 0.0754 | 0.125 | 10729 | 6263 |
| 3x300 | 5.5 | 4.0 | 89 | 0.0601 | 0.100 | 12723 | 7141 |
Technical Characteristics for 12/20kV, CU or AL conductor/XLPE Insulated/
Steel Tape Armored/ PVC Sheathed Power Cable, 3-Core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 3x10 | 0.7 | 1.5 | 18 | 1.83 | 3.08 | 622 | 433 |
| 3x16 | 0.7 | 2.0 | 22 | 1.15 | 1.91 | 1005 | 705 |
| 3x25 | 0.9 | 2.0 | 25 | 0.727 | 1.20 | 1371 | 898 |
| 3x35 | 0.9 | 2.0 | 27 | 0.524 | 0.868 | 1724 | 1061 |
| 3x50 | 1.0 | 2.0 | 30 | 0.387 | 0.641 | 2247 | 1300 |
| 3x70 | 1.1 | 2.5 | 35 | 0.268 | 0.443 | 3023 | 1697 |
| 3x95 | 1.1 | 2.5 | 39 | 0.193 | 0.320 | 3825 | 2026 |
| 3x120 | 1.2 | 2.5 | 42 | 0.153 | 0.253 | 4642 | 2370 |
| 3x150 | 1.4 | 3.0 | 48 | 0.124 | 0.206 | 5767 | 2926 |
| 3x185 | 1.6 | 3.0 | 51 | 0.0991 | 0.164 | 6896 | 3391 |
| 3x240 | 1.7 | 3.0 | 56 | 0.0754 | 0.125 | 8617 | 4072 |
Technical Characteristics for 3.6/6kV, CU or AL conductor/ XLPE Insulated/
Steel Tape Armored/ PVC Sheathed Power Cable, 3-Core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 3x25 | 2.5 | 2.6 | 46 | 0.727 | 1.20 | 2945 | 2480 |
| 3x35 | 2.5 | 2.6 | 49 | 0.524 | 0.868 | 3390 | 2739 |
| 3x50 | 2.5 | 2.8 | 52 | 0.387 | 0.641 | 4065 | 3135 |
| 3x70 | 2.5 | 2.8 | 55 | 0.268 | 0.443 | 4816 | 3513 |
| 3x95 | 2.5 | 3.1 | 60 | 0.193 | 0.320 | 5897 | 4129 |
| 3x120 | 2.5 | 3.1 | 63 | 0.153 | 0.253 | 6844 | 4611 |
| 3x150 | 2.5 | 3.3 | 67 | 0.124 | 0.206 | 7973 | 5182 |
| 3x185 | 2.5 | 3.5 | 71 | 0.0991 | 0.164 | 9281 | 5838 |
| 3x240 | 2.6 | 3.6 | 77 | 0.0754 | 0.125 | 11229 | 6763 |
| 3x300 | 2.8 | 3.7 | 83 | 0.0601 | 0.100 | 14106 | 8524 |
Technical Characteristics for 6.6/6kV, 6/10kV, CU or AL conductor/XLPE
Insulated/Steel Tape Armored/PVC Sheathed Power Cable, 3-Core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 3x25 | 3.4 | 2.6 | 47 | 0.727 | 1.20 | 3010 | 2544 |
| 3x35 | 3.4 | 2.8 | 50 | 0.524 | 0.868 | 3498 | 2847 |
| 3x50 | 3.4 | 2.8 | 53 | 0.387 | 0.641 | 4135 | 3205 |
| 3x70 | 3.4 | 3.1 | 56 | 0.268 | 0.443 | 4958 | 3655 |
| 3x95 | 3.4 | 3.1 | 61 | 0.193 | 0.320 | 5974 | 4206 |
| 3x120 | 3.4 | 3.2 | 64 | 0.153 | 0.253 | 6969 | 4736 |
| 3x150 | 3.4 | 3.6 | 69 | 0.124 | 0.206 | 8161 | 5370 |
| 3x185 | 3.4 | 3.6 | 72 | 0.0991 | 0.164 | 9417 | 5975 |
| 3x240 | 3.4 | 3.6 | 78 | 0.0754 | 0.125 | 11340 | 6874 |
| 3x300 | 3.4 | 3.8 | 84 | 0.0601 | 0.100 | 14247 | 8665 |
Technical Characteristics for 8.7/10kV,8.7/15kV,CU or AL conductor/XLPE
Insulated Steel Ta e Armored PVC Sheathed Power Cable, 3-Core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 3x25 | 4.5 | 2.9 | 53 | 0.727 | 1.20 | 3500 | 3035 |
| 3x35 | 4.5 | 2.9 | 55 | 0.524 | 0.868 | 3329 | 3329 |
| 3x50 | 4.5 | 3.1 | 58 | 0.387 | 0.641 | 4679 | 3748 |
| 3x70 | 4.5 | 3.1 | 61 | 0.268 | 0.443 | 5410 | 4107 |
| 3x95 | 4.5 | 3.4 | 66 | 0.193 | 0.320 | 6567 | 4799 |
| 3x120 | 4.5 | 3.4 | 70 | 0.153 | 0.253 | 7541 | 5308 |
| 3x150 | 4.5 | 3.6 | 73 | 0.124 | 0.206 | 8674 | 5883 |
| 3x185 | 4.5 | 3.6 | 77 | 0.0991 | 0.164 | 9991 | 6549 |
| 3x240 | 4.5 | 4.0 | 84 | 0.0754 | 0.125 | 12887 | 8421 |
| 3x300 | 4.5 | 4.0 | 89 | 0.0601 | 0.100 | 14974 | 9392 |
Technical Characteristics for 12/20kV, CU or AL conductor/XLPE Insulated/ Steel Tape Armored/PVC Sheathed Power Cable, 3-Core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 3x35 | 5.5 | 3.2 | 63 | 0.524 | 0.868 | 4840 | 4189 |
| 3x50 | 5.5 | 3.2 | 66 | 0.387 | 0.641 | 5463 | 4532 |
| 3x70 | 5.5 | 3.3 | 69 | 0.268 | 0.443 | 6346 | 5044 |
| 3x95 | 5.5 | 3.6 | 74 | 0.193 | 0.320 | 7457 | 5689 |
| 3x120 | 5.5 | 3.6 | 77 | 0.153 | 0.253 | 8459 | 6227 |
| 3x150 | 5.5 | 3.8 | 82 | 0.124 | 0.206 | 10555 | 7764 |
| 3x185 | 5.5 | 4.0 | 86 | 0.0991 | 0.164 | 11925 | 8483 |
| 3x240 | 5.5 | 4.0 | 92 | 0.0754 | 0.125 | 13959 | 9494 |
| 3x300 | 5.5 | 4.2 | 97 | 0.0601 | 0.100 | 16314 | 10731 |
Technical Characteristics for 3.6/6kV,CU or AL conductor/XLPE Insulated/Steel
Wire Armored/PVC Sheathed Power Cable, 3-Core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 3x25 | 2.5 | 2.5 | 49 | 0.727 | 1.20 | 4246 | 3781 |
| 3x35 | 2.5 | 3.0 | 52 | 0.524 | 0.868 | 4770 | 4119 |
| 3x50 | 2.5 | 3.0 | 57 | 0.387 | 0.641 | 6194 | 5263 |
| 3x70 | 2.5 | 3.0 | 60 | 0.268 | 0.443 | 7092 | 5790 |
| 3x95 | 2.5 | 3.0 | 64 | 0.193 | 0.320 | 8263 | 6495 |
| 3x120 | 2.5 | 3.5 | 68 | 0.153 | 0.253 | 9422 | 7190 |
| 3x150 | 2.5 | 3.5 | 71 | 0.124 | 0.206 | 10667 | 7876 |
| 3x185 | 2.5 | 3.5 | 76 | 0.0991 | 0.164 | 12113 | 8671 |
| 3x240 | 2.6 | 3.5 | 81 | 0.0754 | 0.125 | 14361 | 9895 |
| 3x300 | 2.8 | 3.5 | 87 | 0.0601 | 0.100 | 16632 | 11050 |
Technical Characteristics for 6.6/6kV,6/10kV, CU or AL conductor/XLPE
Insulated Steel Wire Armored PVC Sheathed Power Cable, 3-Core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 3x25 | 3.4 | 3.0 | 50 | 0.727 | 1.20 | 4337 | 3872 |
| 3x35 | 3.4 | 3.0 | 53 | 0.524 | 0.868 | 4863 | 4212 |
| 3x50 | 3.4 | 3.0 | 58 | 0.387 | 0.641 | 6302 | 5371 |
| 3x70 | 3.4 | 3.0 | 61 | 0.268 | 0.443 | 7177 | 5875 |
| 3x95 | 3.4 | 3.5 | 65 | 0.193 | 0.320 | 8431 | 6663 |
| 3x120 | 3.4 | 3.5 | 69 | 0.153 | 0.253 | 9559 | 7326 |
| 3x150 | 3.4 | 3.5 | 73 | 0.124 | 0.206 | 10873 | 8246 |
| 3x185 | 3.4 | 3.5 | 76 | 0.0991 | 0.164 | 12256 | 8814 |
| 3x240 | 3.4 | 3.5 | 82 | 0.0754 | 0.125 | 14509 | 10044 |
| 3x300 | 3.4 | 4.0 | 88 | 0.0601 | 0.100 | 16821 | 11239 |
Technical Characteristics for 8.7/10kV,8.7/15kV,CU or AL conductor/XLPE
Insulated/ Steel Wire Armored/ PVC Sheathed Power Cable, 3-Core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 3x25 | 4.5 | 3.2 | 60 | 0.727 | 1.20 | 6058 | 5593 |
| 3x35 | 4.5 | 3.2 | 63 | 0.524 | 0.868 | 6661 | 6010 |
| 3x50 | 4.5 | 3.2 | 66 | 0.387 | 0.641 | 7456 | 6525 |
| 3x70 | 4.5 | 3.4 | 69 | 0.268 | 0.443 | 8376 | 7074 |
| 3x95 | 4.5 | 3.4 | 73 | 0.193 | 0.320 | 9657 | 7890 |
| 3x120 | 4.5 | 3.5 | 76 | 0.153 | 0.253 | 10834 | 8602 |
| 3x150 | 4.5 | 3.8 | 81 | 0.124 | 0.206 | 12160 | 9369 |
| 3x185 | 4.5 | 3.8 | 85 | 0.0991 | 0.164 | 13661 | 10219 |
| 3x240 | 4.5 | 4.2 | 91 | 0.0754 | 0.125 | 15992 | 11527 |
| 3x300 | 4.5 | 4.2 | 96 | 0.0601 | 0.100 | 18262 | 12680 |
Technical Characteristics for 12/20kV, CU or AL conductor/XLPE Insulated/
Steel Wire Armored PVC Sheathed Power Cable, 3-Core
| Nominalconductorcrosssectionarea(mm) | Nominal Insulation thickness (mm) | Nominalsheaththickness (mm) | ApproxOverallDiameter (mm) | Max DCConductorresistance at20℃ (Ω/km) | Approx weight of cable(kg/km) | ||
| Cu | Al | Cu | Al | ||||
| 3x35 | 5.5 | 3.5 | 68 | 0.524 | 0.868 | 7430 | 6752 |
| 3x50 | 5.5 | 3.5 | 70 | 0.387 | 0.641 | 8139 | 7208 |
| 3x70 | 5.5 | 3.5 | 74 | 0.268 | 0.443 | 9133 | 7831 |
| 3x95 | 5.5 | 3.5 | 78 | 0.193 | 0.320 | 10450 | 8682 |
| 3x120 | 5.5 | 3.5 | 82 | 0.153 | 0.253 | 11612 | 9379 |
| 3x150 | 5.5 | 4.0 | 86 | 0.124 | 0.206 | 12982 | 10191 |
| 3x185 | 5.5 | 4.0 | 89 | 0.0991 | 0.164 | 14540 | 11098 |
| 3x240 | 5.5 | 4.0 | 95 | 0.0754 | 0.125 | 16751 | 12285 |
| 3x300 | 5.5 | 4.0 | 101 | 0.0601 | 0.100 | 19242 | 13660 |
